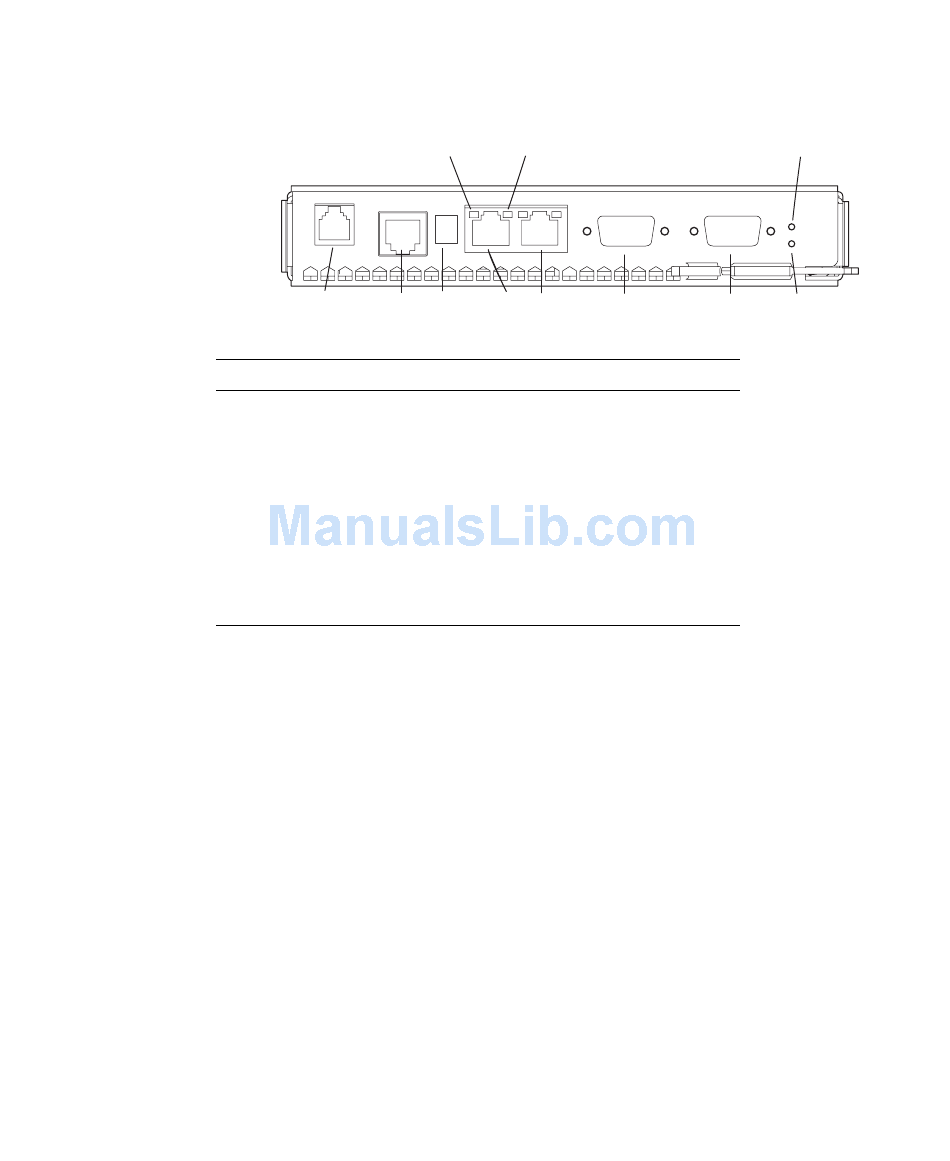

Outline Drawing of the XSCF Unit Front Panel (In the Midrange Servers)
FIGURE 1-2
XSCF Unit (Front)
1 2
Number Description
1 RCI port
2 Serial port
3 USB port
4 ETHERNET#1 port
(XSCF-LAN#1 port)
5 ETHERNET#0 port
(XSCF-LAN#0 port)
6 Link Speed LED
The RCI port, serial port, USB port, XSCF-LAN ports, Link Speed LED, ACT LED,
UPC ports, CHECK LED, and READY LED shown in
functions as those of the M3000 server. For descriptions of their functions, see the
explanation of
FIGURE 1-1
XSCF Unit Front Panels on the High-End Servers
includes an outline drawing of the XSCF Unit front panel on the
FIGURE 1-3
M8000/M9000 servers. For connections between the model and an expansion
cabinet, an XSCF Unit as shown at the bottom of
expansion cabinet.
The XSCF Unit of the M8000/M9000 servers is a removable unit. In the
M8000/M9000 servers, for details on mounting the XSCF Unit, see the SPARC
Enterprise M8000/M9000 Servers Service Manual.
6 7
3 4 5
Number Description
7 ACT LED
8 UPC#1 port
9 UPC#0 port
10 CHECK LED
11 READY LED
.
11
8 9 10
have the same
FIGURE 1-2
is mounted in the
FIGURE 1-3
Chapter 1 XSCF Overview 1-7
