XSB Configuration Diagram (Quad-XSB) (In the High-End Servers)
FIGURE 2-7
When PSB#n is Quad-XSB type
CMU#n
shows Uni-XSB hardware configuration diagrams in an entry-level server.
FIGURE 2-8
The PSB type is fixed to Uni-XSB. In the entry-level server, the number of domains is
one, and the domain fully uses the resources in the PSB

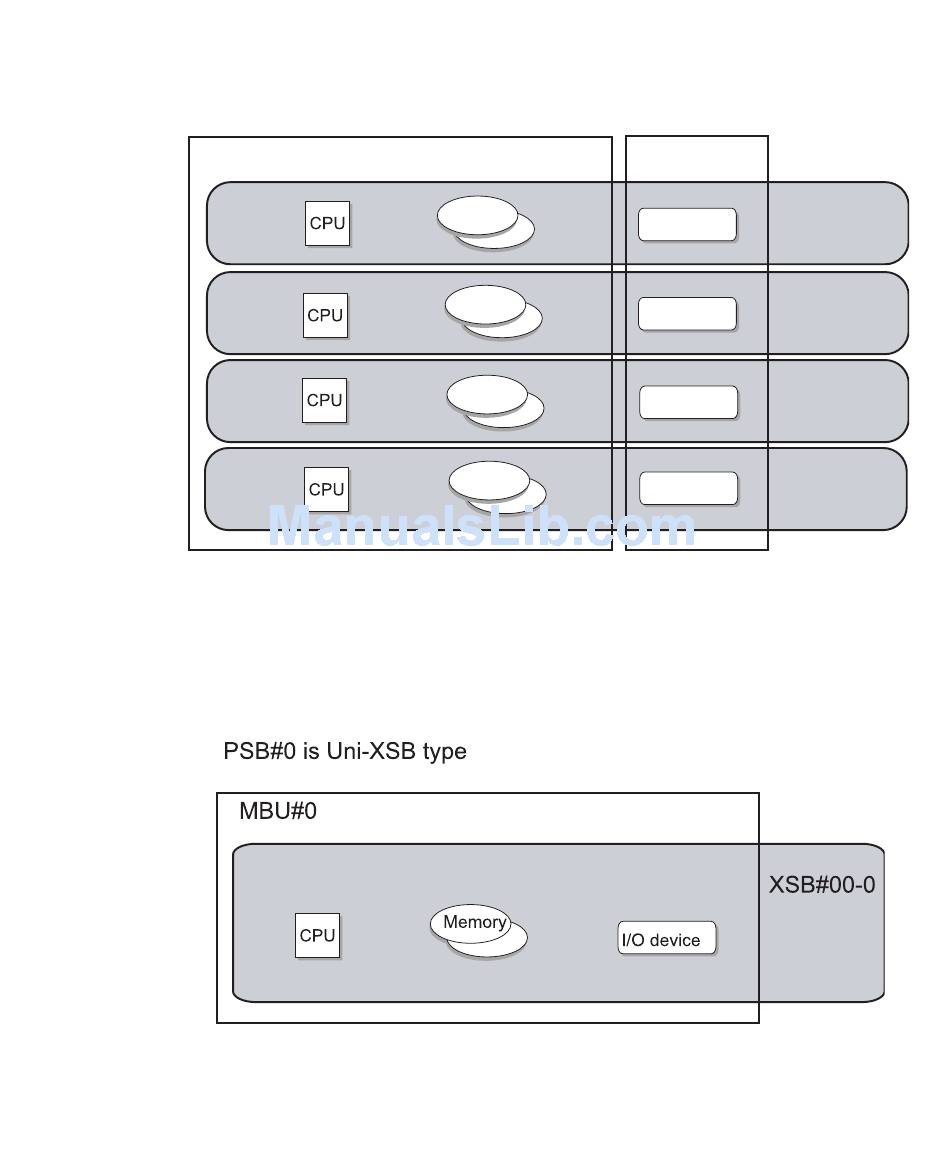

XSB Configuration Diagram (Uni-XSB) (In the Entry-Level Server)
FIGURE 2-8
Memory
Memory
Memory
Memory
IOU#n
XSB#xx-0
I/O device
XSB#xx-1
I/O device
XSB#xx-2
I/O device
XSB#xx-3
I/O device
