In the example of the configuration shown in
the two LAN ports and its switch hub, its LAN is replaced by the other LAN.
Moreover, if an error occurs in the switch hub, the other LAN can be relied on for
notification.
If an error occurs in the active XSCF Unit in the systems with two XSCF Units, XSCF
generates a failover, then the LAN of the other XSCF Unit can be used.

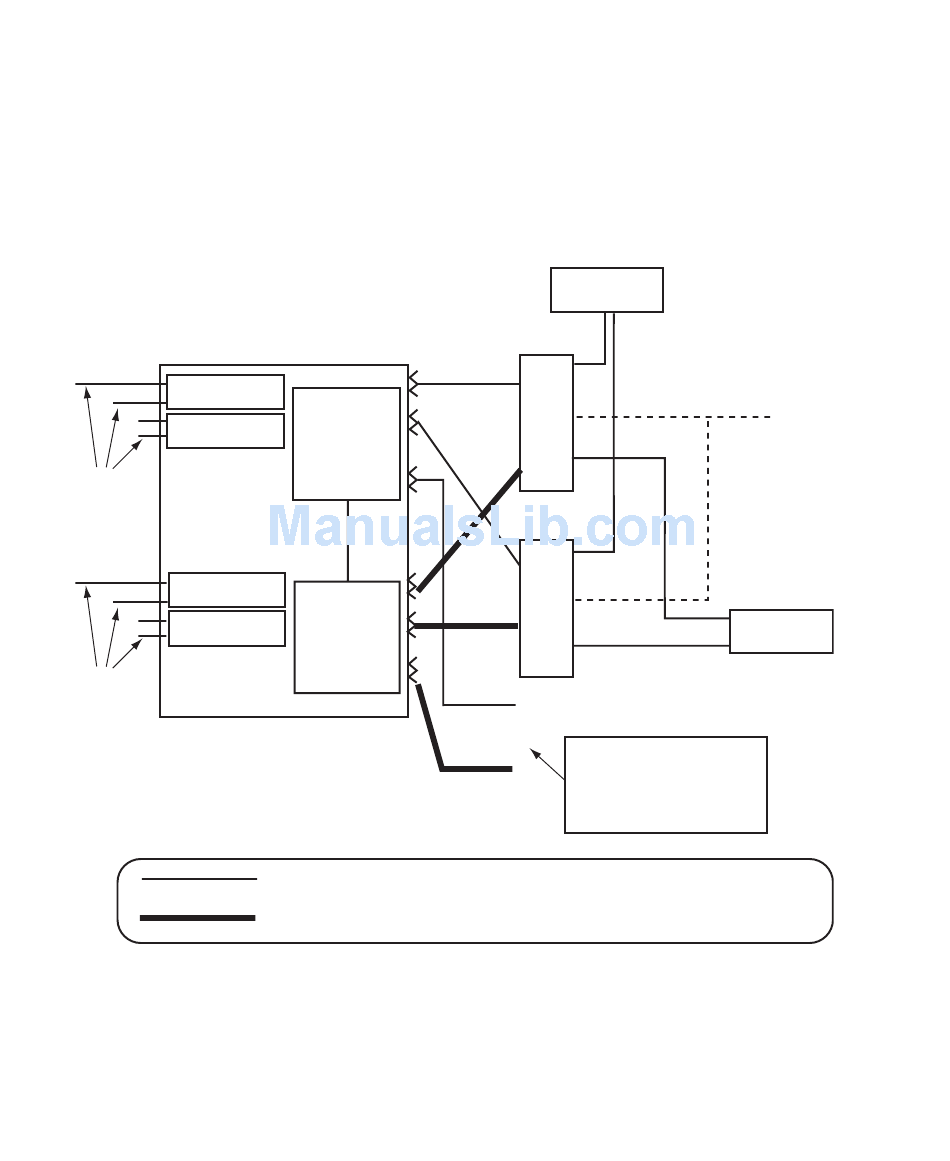

Example of LAN Port Connections Made Redundant
FIGURE 3-6
Basic cabinet
DomainID m
DomainID n
:
User
LAN
DomainID x
DomainID y
:
User
LAN
XSCFU
#0
XSCFU
#1
Port from XSCFU#0
Port from XSCFU#1
FIGURE 3-6
Fire Wall
Remote Services
LAN Maintenance port
Hub
LAN
Hub
System
administration port
Serial
Direct attach port
Serial
for initial setup
maintenance
(System with redundant XSCFU only)
Chapter 3 Connecting to the XSCF and the Server
, if errors occur in either of
Fire Wall
3-17
