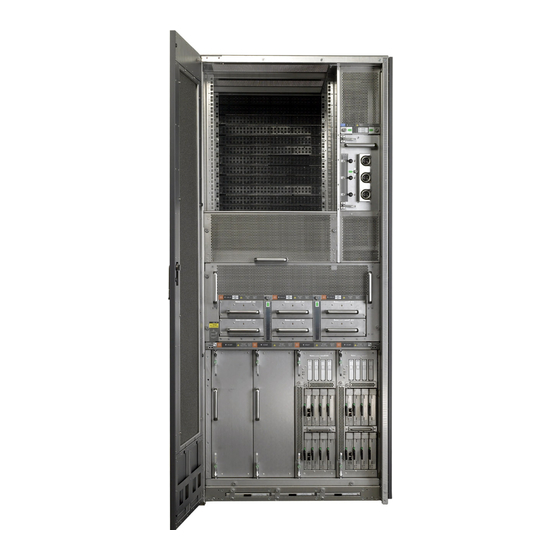

Sun Microsystems ORACLE SPARC Enterprise M8000 Manual

SPARC Enterprise M8000/M9000 Servers
Fan Tray Retention Kit
This document describes how to replace an existing FAN Unit fixing bracket with a new more secure FAN Unit
fixing bracket. The new bracket restricts the FAN Unit movement to less than 3.2 mm to prevent accidental
unseating and loss of cooling.
The FAN Unit fixing bracket is located vertically between the FAN Units. The brackets have a hinge on the
bottom and a screw on the top and secure the fans in place. The retention kit includes a fixing bracket tool
(345-1443-01) to simplify the loosening of the hinge pin.
This is a hot-swap procedure that can be implemented while the system is running.
Locating the FAN Unit Fixing Bracket
Compare the part number of the bracket with the location of the bracket being replaced using the tables below.
TABLE 1
Bracket Part Number
541-3413-01
541-3420-01
541-3407-01
TABLE 2
Bracket Part Number
541-3407-01
541-3410-01
SPARC Enterprise M8000 Server
SPARC Enterprise M9000 Server
Bracket location
System Rear
System Front (Left)
System Front (Right)
Bracket location
System Front
System Rear
Number of Brackets
2
1
1
Number of Brackets
1
2
1
