Summary of Contents for Otto Bock Xeno

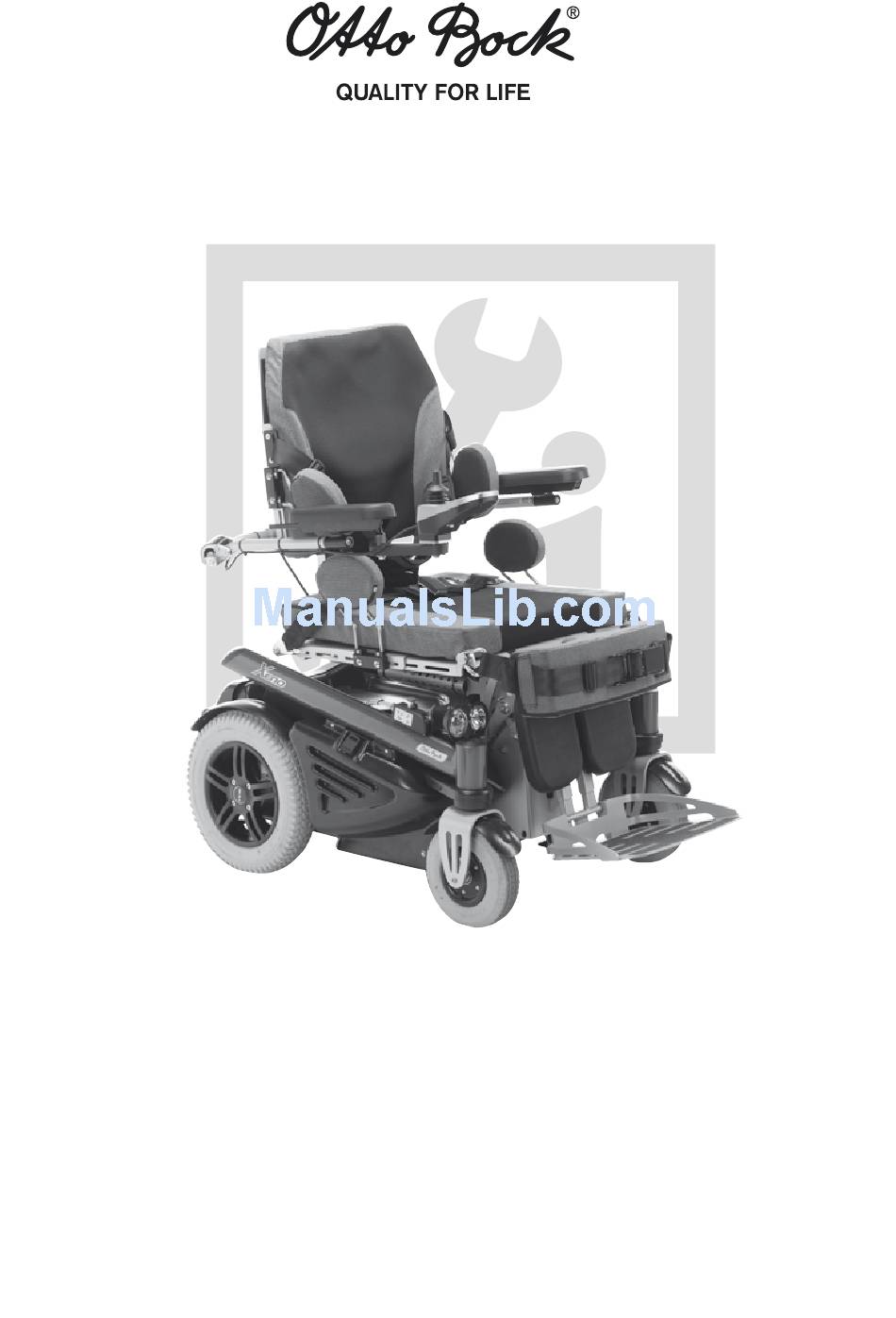

  • Page 1 Xeno Service Manual...

  • Page 3: Table Of Contents

    XENO Power Wheelchair Service Instructions Content Page 1 General Information ......................6 1.1 Foreword .........................6 1.2 Support ........................6 2 Security..........................6 2.1 Explanation of Symbols ..................6 2.2 General Safety Instructions ...................6 2.3 Safety Instructions for the Use of Tools and Accessories ........7 2.4 Safety Instructions for Service and Maintenance Tasks........8...
  • Page 4 6.5.6  Replacing the Drive Wheel Flange .................33 6.5.7  Removing the Drive Wheel Spring or Changing the Coefficient ......34 6.5.8  Replacing the Steering Potentiometer ..............35 6.5.9  Removing the Steering Drive ..................37 6.5.10  Mounting Splash Guards for Drive Wheels (optional) ..........40 6.6 Brakes and Brake Release .................. 41 6.6.1  Replacing the wheel lock release ................41 6.6.2  Setting/Adjusting the Brake Release ..............42 6.6.3  Brake Settings ......................43 6.6.4  Performing a function check of the brake settings ..........43 6.7  Anti-tipper ......................44 6.7.1  Removing the anti-tipper support ................44 6.7.2 ...
  • Page 5 6.16  Retrofitting Accessories ..................76 6.16.1  Mounting Kit for Headrest Attachment ..............76 6.16.2  Mounting Kit for Signal Panel ................76 6.16.3  Rear-view mirror ....................76 6.16.4 Bumper Bar......................77 6.16.5  Other Optional Add-on Components ..............78 7 Diagnostics ........................78 7.1  Diagnostic Steps ....................78 7.2  Error Display on the Control Panel/LCD Monitor ..........79 8 enAble50 Wheelchair Controller – Installation and Programming .........81 8.1 ...

  • Page 6: General Information

    Xeno. The information in these service instructions is essential in order to work on the Xeno correctly and safely. This is why this document, in particular the section “Safety Instructions”, must be read carefully by all persons working on the Xeno.

  • Page 7: Safety Instructions For The Use Of Tools And Accessories

    NOTICE Risk of damage due to excessive heat or cold. The XENO may only be operated in the temperature range from -25 °C to +50 °C. It must not be operated at temperatures outside this range. NOTICE Risk of damage caused by overload.

  • Page 8: Safety Instructions For Service And Maintenance Tasks

    CAUTION Risk of injury due to pinch points. For design reasons, there are pinch points between the seat and frame of the Xeno. Special caution is required during all work on the corresponding components. CAUTION Risk of pinching or crushing in the pivot ranges of the armrests and footplate. When swinging the armrests up or down and when flipping the fooplate up or down, make sure your arms and legs are clear of the danger zone.
  • Page 9 NOTICE Risk of damage due to improper preparation of maintenance tasks. The Xeno power wheelchair must be turned off and the fuse must be removed for all maintenance tasks. This does not apply to functional tests of the electrical components.

  • Page 10: Safety Instructions For Maintenance Works On Electrical Components

    • After swallowing, consult a medical specialist immediately. CAUTION Risk of injury while working on the battery. Only use a battery charger supplied by Otto Bock which has been tested and approved for the respective batteries by Otto Bock (observe information on the charger).

  • Page 11: Safety Instructions For Disposal

    The Xeno has been tested according to EMC regulations. The following particularities must be observed during operation and communicated to the user: • The driving characteristics of the Xeno can be affected by electromagnetic fields (mobile phones or other radiating devices). Therefore all mobile devices must be turned off when driving.

  • Page 12: Transportation And Storage

    3 Transportation and Storage The following environmental conditions apply to transportation and storage: Ambient temperature -40 °C to +65 °C 3.1 Transportation CAUTION Risk of injury due to insufficient restraints. Secure the power wheelchair during transport in another vehicle sufficiently with tensioning straps. NOTICE Risk of damage due to falling.

  • Page 13: Flipping Up The Footplate

    Figure 2 Swinging away the armrest 3.2 Flipping up the Footplate 1. Pull the locking bolt. 2. Flip the footplate up. Figure 3 Release the footplate and flip it up 3.3 Folding the backrest down CAUTION Risk of pinching or crushing from improper locking of the backrest. When folding the backrest down, be sure that it does not fall back uncontrolled after pulling the cotter pin.
  • Page 14 1. Flip the armrests up. 2. With one hand slide the back rest upwards. 3. Press the release knob and unhook the belt locking mechanism. Allow the backrest to lower. 4. Pull the cotter pin whilst supporting the backrest with one hand to prevent it from falling back uncontrolled.

  • Page 15: Storage

    If the power wheelchair is not moved for several days, permanent colour changes may occur where the wheelchair comes into contact with the surface it is standing on. Otto Bock therefore recommends parking the wheelchair on a suitable surface during extended periods of disuse.
  • Page 16 Figure 6 Tools Figure 7 Handheld Programming Device...

  • Page 17: Information Display

    5 Information display INFORMATION Please see Section 7 for information on the display of error messages using the control panel display/ LCD monitor. Messages are shown on the control panel display or LCD monitor: Display symbol(s) Display LCD Information Driving menu with speed level and battery capacity Low battery capacity Charging process with drive lock Electric back adjustment...

  • Page 18: Service And Maintenance

    Creep speed Attendant control Table 1 Information displays 6 Service and Maintenance 6.1 Inspecting the General Condition ❒ Check all safety-related components for corrosion, repair if required and reapply corrosion protection. ❒ Check weld seams. ❒ Check tightness of screw connections; replace thread-locking compound if required; observe defined torque specifications;...

  • Page 19: Batteries

    Figure 8 Replacing the fuse, pulling the fuse out 1 Fuse housing with open cover and inserted fuse 2 Fuse, pulled out 6.3 Batteries CAUTION Risk of injury while working on the battery. Smoking and open flame are prohibited while working on the battery.

  • Page 20: Charge The Batteries

    • Only use a battery charger supplied by Otto Bock which has been tested and approved for the re- spective batteries by Otto Bock (observe information on the charger). Failure to do so can result in a battery explosion and possible impairment of health due to contact with battery acid.
  • Page 21 In addition, there is the risk that the power wheelchair may stop due to zero battery capacity and put the user in a dangerous situation. Tools: ❒ Charger intended for use by Otto Bock. Steps: 1. Turn off the control unit on the power wheelchair.
  • Page 22 Charging receptacle 1 Receptacle for connecting the charger 2 Cover Figure 10 Otto Bock battery charger The battery charger features a programmed recharging phase. Once a discharged battery is completely charged (after approximately 8 hours), the battery charger can remain connected with no risk of overcharging or damaging the battery.

  • Page 23: Removing The Cover (On Models With Lighting)

    6.3.2 Removing the cover (on models with lighting) Preparation: ❒ Move the seat to the standing position. ❒ Turn the control unit off. ❒ Pull out the battery drawer. Steps: 1. Loosen the thumb screws and remove the cover. Properly reassemble all components upon completion of the work. Figure 11 Removing the cover, batteries in battery case 6.3.3 Replacing the batteries CAUTION...
  • Page 24 Figure 12 Unlock the battery case and pull it out 2. Remove the cover (on models without lighting) 3. Pull out the fuse (see Section 6.2). 4. Disconnect all battery cables. < Figure 13 Disconnect cables 5. Lift out the batteries by the handles and replace if required. Properly reassemble all components upon completion of the work.

  • Page 25: Checking And Topping Up The Fluid Level (Only For Lead-Acid Batteries)

    6.3.4 Checking and Topping Up the Fluid Level (Only for Lead-Acid Batteries) INFORMATION Check the fluid level in the battery and top it up if required. Preparation: ❒ Turn the control unit off. ❒ Remove the batteries (see Section 6.3.3). Tools: ❒...

  • Page 26: Removing The Battery Case

    6.3.5 Removing the Battery Case Preparation: ❒ Remove the batteries (see Section 6.3.3). Steps: 1. Remove the battery case and replace if required. Properly reassemble all components upon completion of the work. 6.3.6 Reinstalling the Battery Cable NOTICE Risk of battery damage. Ensure correct polarity is used when connecting the batteries. Preparation: ❒...

  • Page 27: Installing New Battery Vent Hoses (Only For Lead-Acid Batteries)

    6.3.7 Installing New Battery Vent Hoses (Only for Lead-Acid Batteries) NOTICE Risk of battery damage. Ensure correct polarity is used when connecting the batteries. Preparation: ❒ Remove the batteries (see Section 6.3.3). Tools: ❒ Open-end or combination wrench, size 11 Steps: 1.

  • Page 28: Replacing The Controller/Seat Module

    Steps: 1. Loosen the three Allen head screws on the cover and remove the cover from the charging receptacle. 2. Loosen the two Phillips head screws on the charging receptacle. 3. Pull the charging receptacle with the connecting cable out to the front and replace. Properly reassemble all components upon completion of the work.
  • Page 29 Figure 19 Loosen the Allen head screws on the holding plate 3. Flip back the attachment plate with the controller and seat module. Figure 20 Flip the holding plate with the controller + seat module to the rear 4. Remove all connectors on the seat module. 5.

  • Page 30: Wheels

    Replace the casing of pneumatic tyres if it is bald or shows signs of cracking or other damage. The Xeno power wheelchair is propelled by two 14” drive wheels. Standard configuration for steering is by means of two 9” front steering casters.

  • Page 31: Removing The Steering Caster

    Steps: 1. Jack the power wheelchair up until the wheel to be changed rotates freely. 2. Loosen the four Allen head screws around the wheel hub. 3. Pull the drive wheel forward off the wheel hub. Properly reassemble all components upon completion of the work. INFORMATION When installing the wheel, tighten all four screws to a torque of 25 Nm.

  • Page 32: Changing Tyres

    Properly reassemble all components upon completion of the work. Figure 23 Disassembling the caster wheel 6.5.4 Changing Tyres Preparation: ❒ Remove the drive wheel (see Section 6.5.2). Tools: ❒ Tyre lever Steps: 1. Let all the air out of the tyre. 2.

  • Page 33: Replacing The Drive Wheel Flange

    5. Push the valve completely through to the inside of the rim and pull out the tube. 6. Replace the tube or repair it with a conventional bicycle tube repair kit. Properly reassemble all components upon completion of the work. Figure 24 Removing the casing 6.5.6 Replacing the Drive Wheel Flange Preparation:...

  • Page 34: Removing The Drive Wheel Spring Or Changing The Coefficient

    Figure 25 Wheel flange screw, put puller in place 6.5.7 Removing the Drive Wheel Spring or Changing the Coefficient NOTICE Risk of damage due to improper preparation of maintenance tasks. Use suitable objects such as wooden blocks to secure the power wheelchair against sliding or tipping. The drive wheels must rotate freely.

  • Page 35: Replacing The Steering Potentiometer

    Tools: ❒ Allen wrench, size 5 mm ❒ Allen wrench, size 6 mm ❒ Ring wrench or open-end wrench, size 13 mm Steps: 1. Loosen both Allen head screws holding the drive wheel spring and remove the drive wheel spring. 2.
  • Page 36 Figure 28 Removing the cover 3. Loosen the two Allen head screws. Figure 29 Loosening the steering potentiometer screw connection 4. Pull the steering potentiometer including the connection cable up and out and replace if required. Figure 30 Steering potentiometer removed Properly reassemble all components upon completion of the work.

  • Page 37: Removing The Steering Drive

    6.5.9 Removing the Steering Drive NOTICE When installing the new chain, only tighten the chain tensioner on the interior side. INFORMATION Only the steering motor tolerance is transferred via the chain. The drive motor for the steering and the chain drive together form a unit that can only be replaced as a whole if necessary.
  • Page 38 Figure 32 Loosen the Phillips head screws on the chain guard 4. Loosen and remove the Allen head screw on the chain tensioner. Figure 33 Loosen the chain tensioner 5. Loosen the two Allen head screws on the bearing housing and remove it. Figure 34 Removing the bearing housing 6.
  • Page 39 Figure 35 Disconnected sprocket wheel and bearing 8. Disassemble the caster fork. Figure 36 Disassemble the caster fork 9. Remove the caster fork, including the chain and chain guard. Figure 37 Remove the caster fork, chain and chain guard Properly reassemble all components upon completion of the work.

  • Page 40: Mounting Splash Guards For Drive Wheels (Optional)

    6.5.10 Mounting Splash Guards for Drive Wheels (optional) NOTICE Risk of damage due to improper preparation of maintenance tasks. Use suitable objects such as wooden blocks to secure the power wheelchair against sliding or tipping. The drive wheels must rotate freely.

  • Page 41: Brakes And Brake Release

    6.6 Brakes and Brake Release Both drive motors of the Xeno power wheelchair are braked simultaneously by the control unit via a motor brake. In the event of defects in the brake unit, the drive motor and motor brake are replaced entirely.

  • Page 42: Setting/Adjusting The Brake Release

    ❒ 2 open-end or combination wrenches, size 7, to establish the setting ❒ 2 open-end or combination wrenches, size 8, to make adjustments INFORMATION Lock the adjustment screw every time the setting is changed. Otto Bock recommends making adjust- ments in small increments (½ turn). a) Adjusting an over-tightened Bowden cable Steps: 1.

  • Page 43: Brake Settings

    Repairs and settings must only be made by authorised personnel. Replace damaged Bowden cables with new ones immediately. Correct brake settings are essential for driving. This is why Otto Bock recommends inspecting the brake every three months.

  • Page 44: Anti-Tipper

    tion 2. You should not be able to push the power wheelchair with the lever in this position. If the drive wheels do not lock, loosen the Bowden cable for the side with the wheel that still rotates by ½ turn (see Section 6.6.2 under “Adjusting an over-tightened Bowden cable”). b.

  • Page 45: Removing The Anti-Tipper Wheel

    Figure 43 Removing the anti-tipper wheel 6.8 Lighting The Xeno power wheelchair can be equipped with optional front and rear lights. The lighting function is controlled using the controller. The lighting is connected to the controller underneath the seat (see Section 8.2 for connections). The controller is pre-programmed. It can be adapted to the respective lighting system by programming it using the handheld programming device (see Section 8.4).
  • Page 46 Assembly Tools: ❒ Allen wrench, size 4 Steps: 1. Hold the front lights mounting kit in place on the chassis. 2. Attach with two Allen head screws. 3. Feed the connection cable to the plug and connect. Figure 44 Front-mounted lighting Replacing defective lamps Tools: ❒...
  • Page 47 Figure 45 Replacing the front halogen lamp Replacing the direction indicator lamp Steps: 1. Slightly press into the recess at the top of the housing until the lug disengages. 2. Fold down the cover. 3. Turn the bulb counter-clockwise by one-quarter turn and remove it. Properly reassemble all components upon completion of the work.

  • Page 48: Rear Lights

    6.8.2 Rear Lights Figure 47 Rear Lights The rear lights can only be replaced as a whole. 1. Pull out the battery case. 2. Separate the electric feed line from the connector plug. 3. Loosen the screw connections and remove the rear lights. Properly reassemble all components upon completion of the work.

  • Page 49: Registered Office

    6.9 Registered office CAUTION Risk of burns in the proximity of fire. The back rest, seat bottom and supports of the XENO power wheelchair are flame retardant but nevertheless flammable. Therefore utmost caution is required near any sources of open flame or sparks, especially lit cigarettes.

  • Page 50: Adjusting The Back Compensation

    Figure 49 Changing the backrest height setting 1 Allen head screws 2 Slotted hole 6.9.3 Adjusting the Back Compensation NOTICE Risk of cable damage. Ensure the cables attached to the frame with cable ties are not damaged. INFORMATION The back compensation can be adjusted in increments of 10 mm. Preparation: ❒...
  • Page 51 Figure 50 Adjusting the Back Compensation Mounting sheet Allen head screw Horizontal socket Setting the Electric Back Angle Adjustment Actuator Preparation: ❒ Move the seat into the standing position until the screws are freely accessible. ❒ Fold the backrest down (see Section 3.3). Tools: ❒...
  • Page 52 Figure 51 Detaching the back angle adjustment actuator 2. Loosen the two Allen head screws and remove them and the washers (see Fig. 53, Items 4, 5). 3. Remove the threaded axle (Fig. 53, Item 2). 4. Slide the actuator (see Fig. 53, Item 3) along the receiver (see Fig. 53, Item 1) corresponding to the holes, taking into consideration the values specified in Table 5.
  • Page 53 Figure 53 Setting the electric back angle adjustment 1 Actuator receiver 2 Threaded axle 3 LL-1000 4 Allen head screw 5 Flat washer 6 Collar bushing with steel back Seat depth Adjustment Actuator + screw connection/tube (mm) (mm) position Table 3 Electric back angle adjustment values...
  • Page 54 Setting the Length of the Mechanical Back Angle Adjustment 1. Loosen and remove the two Allen head screws (see Fig. 54, Item 2). 2. Slide the brace bearing (see Fig. 54, Item 1) and front steering brace (see Fig. 54, Item 4) corresponding to the holes, taking into consideration the values specified in Table 6 and re- secure them with Allen head screws.

  • Page 55: Replacing The Armrest/Adjusting The Height

    E6 — C3 D5 — B2 C4 — A1 D6 — B3 Table 4 Mechanical back angle adjustment values 6.9.4 Replacing the Armrest/Adjusting the Height To adapt the armrests to the upper arm length of the user, the corresponding fixing hole on the rear of the backrest has to be selected.

  • Page 56: Adjusting Supports

    3. Slide the armrest forward or backward along the attachment rail to the desired position. Properly reassemble all components upon completion of the work. Figure 56 Changing the armrest position 6.9.6 Adjusting supports The height of the lateral and thoracic supports can be adjusted. Changing the Position of the Support on the Seat Tools: ❒...
  • Page 57 Changing the position of the thoracic support on the backrest Tools: ❒ 2 x Allen wrench size 5 Steps: 1. Loosen and remove the two nuts if necessary, using the Allen wrench to hold the Allen head screws stationary on the inside. 2.

  • Page 58: Adapting The Seat Cushion

    Figure 59 Changing the height setting of the support 6.9.7 Adapting the Seat Cushion The length of the seat cushion must be adapted to the seat depth. Tools: ❒ Sharp knife ❒ Felt-tip pen ❒ Measured rule Steps: 1. Unzip the seat cushion cover completely. 2.

  • Page 59: Adjusting The Seat Depth

    6.9.8 Adjusting the Seat Depth INFORMATION The seat depth can be adjusted in increments of 10 mm. Move the seat plate evenly with both hands so that it does not twist. Preparation: ❒ Move the seat into the standing position until the screws are freely accessible. Tools: ❒...
  • Page 60 2. Loosen the two Allen head screws on the connecting tube under the two seat plates located one on top of the other. 3. Slide the seat plates along the fixing holes spacer. Figure 62 Adjusting the Seat Depth Properly reassemble all components upon completion of the work.

  • Page 61: Adjusting The Footplate

    6.9.9 Adjusting the Footplate INFORMATION The lower leg length can be adjusted in increments of 20 mm. Move the attachment rail evenly with both hands so that it does not twist. Adjusting the Footplate to the Lower Leg Length Tools: ❒...
  • Page 62 Adjusting the Angle of the Footrest The angle of the footrest is determined by which hole is selected in the receiver. 1. Loosen the right and left attachment screws. 2. Loosen and remove the right and left adjustment screws on the receiver. 3.

  • Page 63: Chest Belt

    6.9.10 Chest Belt Adjusting the Width The width of the belt is changed by adjusting the length of the left and right belt parts. Figure 65 Changing the length of the chest belt Changing the height setting Tools: ❒ Allen wrench, size 4 ❒...

  • Page 64: Lap Belt

    6.9.11 Lap belt The Xeno power wheelchair can be equipped with an optional lap belt. Attaching the Lap Belt Tools: ❒ Allen wrench, size 5 mm Steps: 1. Place the belt attachment bracket at the attachment points on the seat frame.

  • Page 65: Knee Belt

    6.9.12 Knee Belt Adjusting the Width The width of the knee belt is changed by adjusting the length of the two belt parts on the right and left of the pad. The position of the receiver for the knee belt cannot be changed. Figure 69 Adjusting the knee belt Removing the Attachment Device Tools:...

  • Page 66: Replacing The Calf Pad

    6.9.13 Replacing the calf pad Tools: ❒ Allen wrench, size 5 mm ❒ Open-end or combination wrench, size 8 Steps: 1. Loosen the Allen head screws. 2. Remove the calf pads and replace if required. Properly reassemble all components upon completion of the work. Figure 71 Removing the calf pads...

  • Page 67: Seat Adjustment Actuators

    6.10 Seat Adjustment Actuators Depending on the user’s preference, the Xeno power wheelchair is equipped with one or multiple actuators responsible for the various seat positions with respect to standing, seat tilt and back angle adjustment. NOTICE Risk of cable damage. Take note of the cables attached to the seat frame with cable ties. Carefully cut the cable ties with side-cutting pliers or a knife.

  • Page 68: Removing The Back Angle Adjustment Actuator

    Figure 72 Magnet switch on the standing-up device actuator, here before label is attached Figure 73 Standing-up device actuator with label 6.10.2 Removing the Back Angle Adjustment Actuator Preparation: ❒ Move the seat into the standing position until the screws are freely accessible. ❒...

  • Page 69: Seat Tilt Actuator

    Risk of accidents and injury due to improper work on the drive unit support. In order to avoid dam- age and malfunction when operating the power wheelchair, installation and removal of the drive unit support, may only be performed in the facilities of Otto Bock Manufacturing Königsee GmbH. 6.13 Replacing the drive motor CAUTION Risk of injury due to electric current.

  • Page 70: Replacing The Oscillating Crank

    Figure 74 Replacing the drive motor 1 Allen head screws 6.14 Replacing the Oscillating Crank INFORMATION When attaching the motors to the oscillating cranks, be sure to tighten the bottom screws first. Each motor is attached to the oscillating cranks with 4 Allen head screws. The oscillating cranks are attached to the drive unit sustainer with one screw each.

  • Page 71: Replacing/Retrofitting Control Elements

    Figure 75 Replacing the oscillating crank 6.15 Replacing/Retrofitting Control Elements 6.15.1 Mounting an LCD Monitor INFORMATION Additional information and operating instructions for the LCD monitor are contained in a separate manual. A separate LCD monitor with infrared and Bluetooth (optional) is available to operate special controls and for environment control functions.
  • Page 72 Tools: ❒ Allen wrench, size 2 mm Steps: 1. Slide the holder (standard holder; height and/or laterally adjustable holder; swan neck holder) onto the attachment rail underneath the armrest and attach with two set screws. Figure 77 Attaching the holder 2.

  • Page 73: Replacing The Control Panel

    6.15.2 Replacing the control panel NOTICE Loss of connection between the plug and control panel! Should the connection plug come loose during driving, e. g. caused by vibrations, the connection to the control panel will get lost and the power wheelchair trigger an emergency stop.

  • Page 74: Mounting The Swing-Away Control Panel Holder

    Attendant controls are shipped as a mounting kit and are attached to the cross tube of the backrest on the Xeno power wheelchair. Two bore holes are provided for this purpose on the left and right of the back tube, respectively.

  • Page 75: Installing Joystick Accessories

    Tools: ❒ Allen wrench, size 6 mm Steps: 1. Hold the bracket for the attendant controls against the back tube. 2. Attach with two Allen head screws. Figure 82 Attaching holder for attendant control 3. Insert the tube with the attendant controls 4.

  • Page 76: Retrofitting Accessories

    6.16 Retrofitting Accessories 6.16.1 Mounting Kit for Headrest Attachment The headrest holder is attached to the back frame using an adapter plate. Tools: ❒ Allen wrench, size 3 ❒ Ring wrench or open-end wrench, size 10 mm Steps: 1. Attach the holder to the top of the back tube with two Allen head screws nuts. Figure 84 Mounting kit for headrest attachment 6.16.2 Mounting Kit for Signal Panel The signal panel holder is attached to the back frame using an adapter plate.

  • Page 77: Bumper Bar

    Figure 85 Mounting the rear-view mirror 6.16.4 Bumper Bar The bumper bar is attached to the rear of the battery case. Tools: ❒ Allen wrench, size 5 mm Steps: 1. Place the bumper bar on the battery case at the corresponding holes. 2.

  • Page 78: Other Optional Add-On Components

    The error diagnosis may therefore only be carried out by authorised dealers who have established knowledge of electronic controllers from Otto Bock. Otto Bock will not assume any liability for damages that are due to improperly or poorly executed repairs. INFORMATION Experience has shown that problems with the wheelchair electrical system are frequently caused by errors and defects in the plug connections and cabling.

  • Page 79: Error Display On The Control Panel/Lcd Monitor

    ❒ Warning ❒ Defect A warning indicates a status or malfunction of one or several individual components of the XENO power wheelchair. All problems that have ever occurred are saved in a list and can be retrieved, e.g. in case of a general overhaul of the XENO power wheelchair.
  • Page 80 Display symbol(s) LCD monitor Error/warning / Cause Measures display defect Faulty connection Check cabling/ Communication error (alternating between the hand control plug connections flashing signal) device and controller. Defective cabling, software or hardware Battery under Battery deep discharge Charge as soon voltage as possible Battery over...

  • Page 81: Enable50 Wheelchair Controller - Installation And Programming

    INFORMATION The enAble50 instructions for use 647G490=D/GB include a list of error codes “WARNING XXX” and “ERROR XXX” on the LCD monitor as well as information on corrective actions. 8 enAble50 Wheelchair Controller – Installation and Programming INFORMATION The enAble50 instructions for use 647G490=D/GB contain more detailed information about the control unit and the connection of input devices.

  • Page 82: Controller

    Figure 88 Components of the enAble50 wheelchair control 1 Attendant control 2 Hand control device 3 Controller 4 Separate LCD monitor 8.2 Controller The controller is attached to the wheelchair with two screws (see Section 6.4). 3 4 5 6 7 8 10 11 12 Figure 89 Controller 1 J8 –...

  • Page 83: Wiring The Controller

    The housing heats up during high-current operation. Therefore, installing the controller on a metal surface with sufficient clearance for air circulation around the housing is recommended. This transfers heat away from the device, improving performance and increasing the lifespan of the controller. 8.2.1 Wiring the Controller The illustration below shows the wiring of the enAble50 controller for a system that has drive motors equipped with encoders.

  • Page 84: Actuator Outputs

    8.2.3 Actuator outputs The controller has two independent actuator outputs. Technical data for the first actuator output: 0…100 % V Voltage Batt 20 A Current for 20 seconds 10 A Steady current Technische Daten des zweiten Ausgangs: 0 … 100 % V Voltage Batt 15 A...

  • Page 85: Wiring The Seat Module

    8.3.1 Wiring the Seat Module The following figure shows how to wire the seat module. The battery connector either has to be connected to the bus (using a 2-pole bridge, see Figure 93-1) or directly to the battery (using the 4-pole plug, see Figure 93-2). If the seat module is connected directly to the battery, you may also use the battery to supply higher loads.

  • Page 86: Electrical Specifications

    8.3.2 Electrical Specifications Power supply 16 – 33 V Operating voltage 12 A Power supply via bus 18 A Power supply directly from the battery (continuous) 24 A Power supply directly from the battery (3 seconds) 4 mA Standby current (typical) A 2-pin bridge between poles 1 and 5 of the battery connector is required for the power supply of the seat module via the bus.

  • Page 87: Programming Devices

    8.4 Programming Devices The enAble50 control unit is programmable, this means that the settings for the various pro- grammable parameters can be set using a programming device. Two programming devices are available: a handheld programming device and a PC programming station (PCPS). The PCPS has additional functions not offered by the handheld programming device.
  • Page 88 Initial operation: 1. Turn on the wheelchair control. 2. Ensure the cable is securely connected to the handheld programming device. 3. Connect the bus plug of the handheld programming device to a free bus receptacle (e.g. on the bottom of the display module). Operation: a) Display The interface is displayed using a so-called “menu tree”.

  • Page 89: Pc Programming Station (Pcps)

    Always test the driving characteristics of the power wheelchair after configuration / programming is complete. Programming must only be completed by authorised personnel. Neither Otto Bock nor the control unit manufacturer are liable for damages (especially in combination with special controls) caused by programming that was not properly / professionally adapted to the abilities of the wheelchair user.

  • Page 90: Main Parameters

    8.5.1 Main Parameters The menu tree is divided into the following three main parameters: ❒ Input devices ❒ System settings ❒ Configuration Main Menu Submenu Settings Parameters Input devices Hand control Basic setting 5 adaptable profiles: device settings - speed - reaction - mode All drive parameters refer to operation with the hand...
  • Page 91 Main Menu Submenu Settings Parameters System General drive Max speed The maximum speed parameter forms another layer settings above the speed values that can be programmed under input devices. Example: Max. speed = 60%. Forward speed = 80%. In driving mode 1: 0.8 x 60% = 48% of the maximum driving speed.
  • Page 92 For example, speed and current values can be programmed Servo here. If the actuators are intended for steering, e. g. 2 ser- vomotors (Xeno) or 1 servomotor (C2000), they can be programmed under servo. Driver outputs J1-J3 are programmable outputs. Each of them is designed for a 2 A load and set to battery +.

  • Page 93: Drive" Parameter Settings

    Main Menu Submenu Settings Parameters Actuators & The controller actuators can be configured here. steering Very important setting that establishes the respective wheelchair model. Steering is defined according to the following possibilities: normal, 1 servo and 2 servos. Two additional standard actuators can be programmed with normal steering and 1 standard actuator can be programmed with 1 servo steering, e.g.
  • Page 94 Menu tree Access Min Max Spec. Unit Help text Input devices Technical Maximum forward acceleration > Hand control device settings Service Specifies the forward acceleration of > Drive the wheelchair when the position of the > Profile 1P1 potentiometer is set to maximum. >...
  • Page 95 Menu tree Access Min Max Spec. Unit Help text Input devices Technical Maximum turning acceleration > Hand control device settings Service Specifies the turning acceleration of the > Drive wheelchair when the position of the po- > Profile 1P1 tentiometer is set to maximum. >...
  • Page 96 Menu tree Access Min Max Spec. Unit Help text Input devices Technical Constant speed forward / reverse > Hand control device settings Service If „Constant speed“, cruise, is selected, the > Drive wheelchair accelerates to the desired speed. > Profile 1P1 If the command is reduced, the wheelchair >...

  • Page 97: Joystick" Parameter Settings

    8.5.3 “Joystick” Parameter Settings Menu tree Access Min Max Spec. Unit Help text Input devices Technical Centre deadband > Hand control device settings Service Centre deadband defines the joystick > Joystick travel before the system recognises the > Centre deadband command.

  • Page 98: Maintenance And Service Plan

    9 Maintenance and Service Plan Customer Re-use Year of manufacture: Serial no.: XENO power wheelchair – general condition Driving report: Component (group) Check functionality, settings, damage or deformation and screw connections for all components listed here! Damage Replacement 1 Control Unit...
  • Page 99 Maintenance and Service Plan XENO Power Wheelchair 6 Registered office Back cushion Seat Cushion Supports 7 Stand-up device Actuator Rod assembly Cabling Belt systems 8 Footplate Adapters 9 Options Lighting Other Comments: The maintenance service was carried out by: Place / date:...
