Output Indicators
The QX Hawk has a beeper and two LED arrays, as follows:
1. An array of green LEDs projected from the front of the imager that can be programmed
to flash in response to user-defined conditions.
2. An array of status LEDs on the side of the imager.

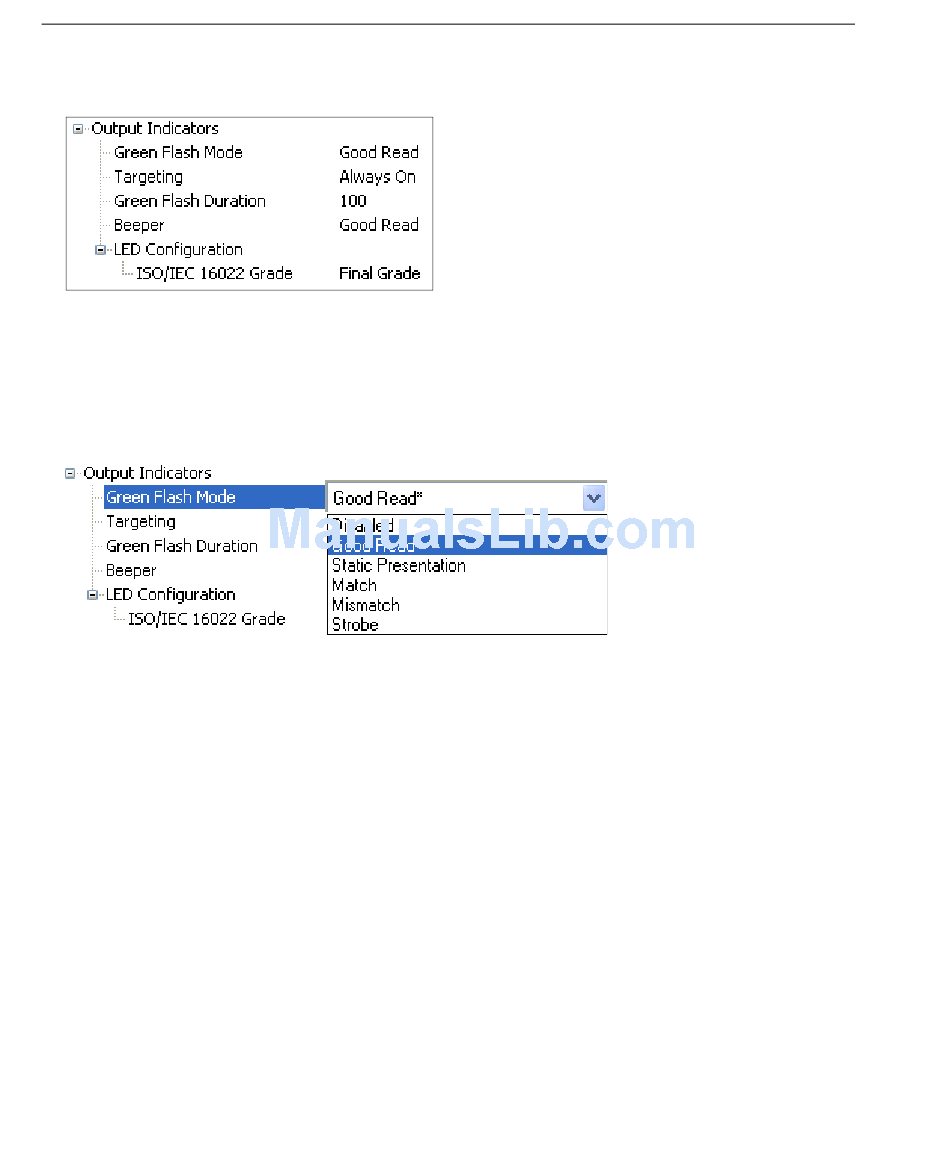

Green Flash Mode
Used as a visual verification that a good read has occurred.
An array of green LEDs in the front of the imager can be programmed to flash in response
to user-defined conditions.
Disabled
Green flash LEDs are disabled.
Good Read
Green flash LEDs will flash when a good read condition is met or when
enabled and a match occurs.
5-98
Matchcode
QX Hawk Industrial Imager User's Manual
is
