Step 7 — Locate Symbol
Locate by ESP

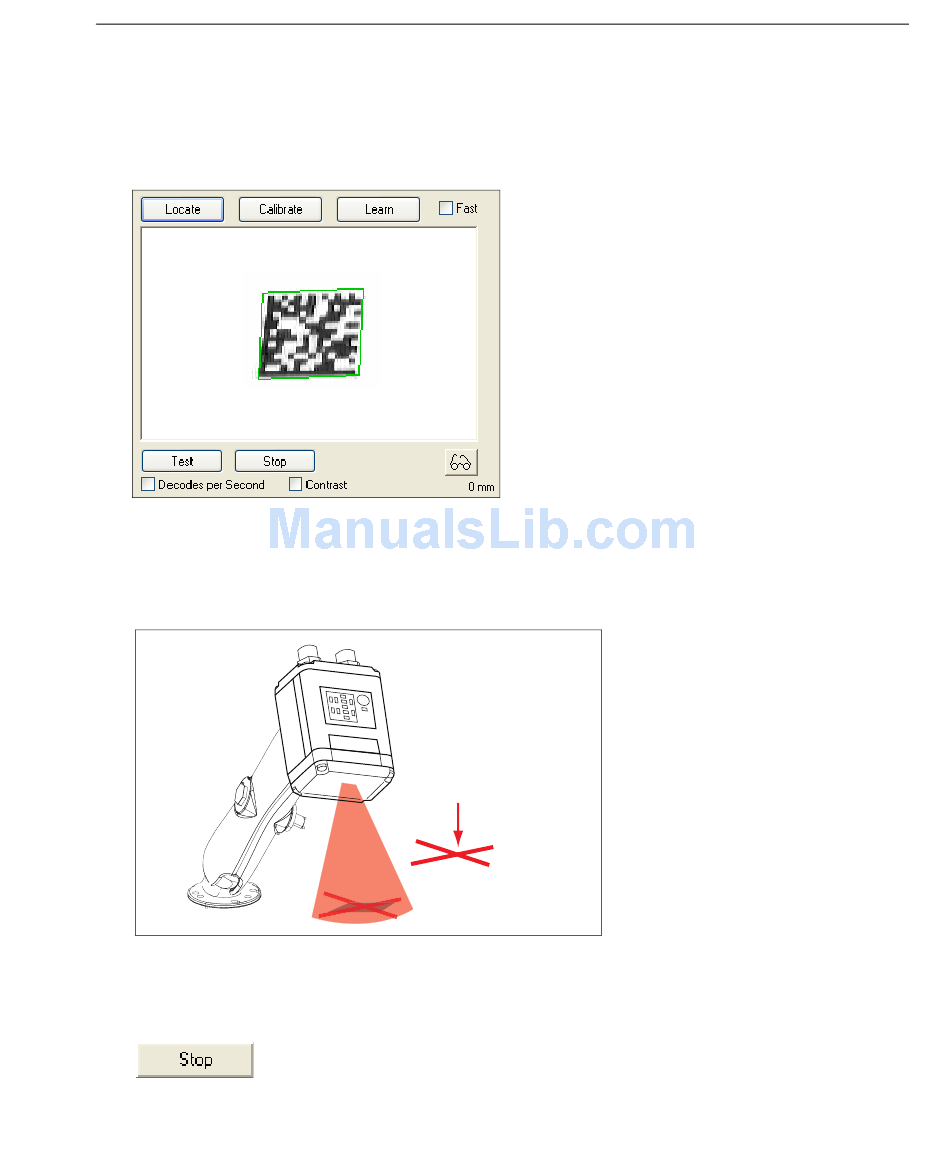

• In ESP's EZ Mode, click the Locate button to enable the red
The symbol in the field of view will appear in the video view beneath the Locate and
Calibrate buttons, and you will see the red target pattern projected from the front of the
imager.
• Center the target pattern on the symbol.
Important: The entire symbol should fall within the field of view (FOV) of the imager. The
field of view is what appears in ESP's Locate/Calibrate window in EZ Mode.
• Click the Stop button to end the Locate function.
QX Hawk Industrial Imager User's Manual
Center on object
in field of view.
Quick Start
X pattern.
1-9
