Step 6 — Connect
Connection Wizard
To connect using the Connection Wizard:
• Click Connect on the menu toolbar, and then select Connection Wizard.
• Select RS-232 or Ethernet to activate the appropriate display.
• Configure settings as required by the application, and click Connect.

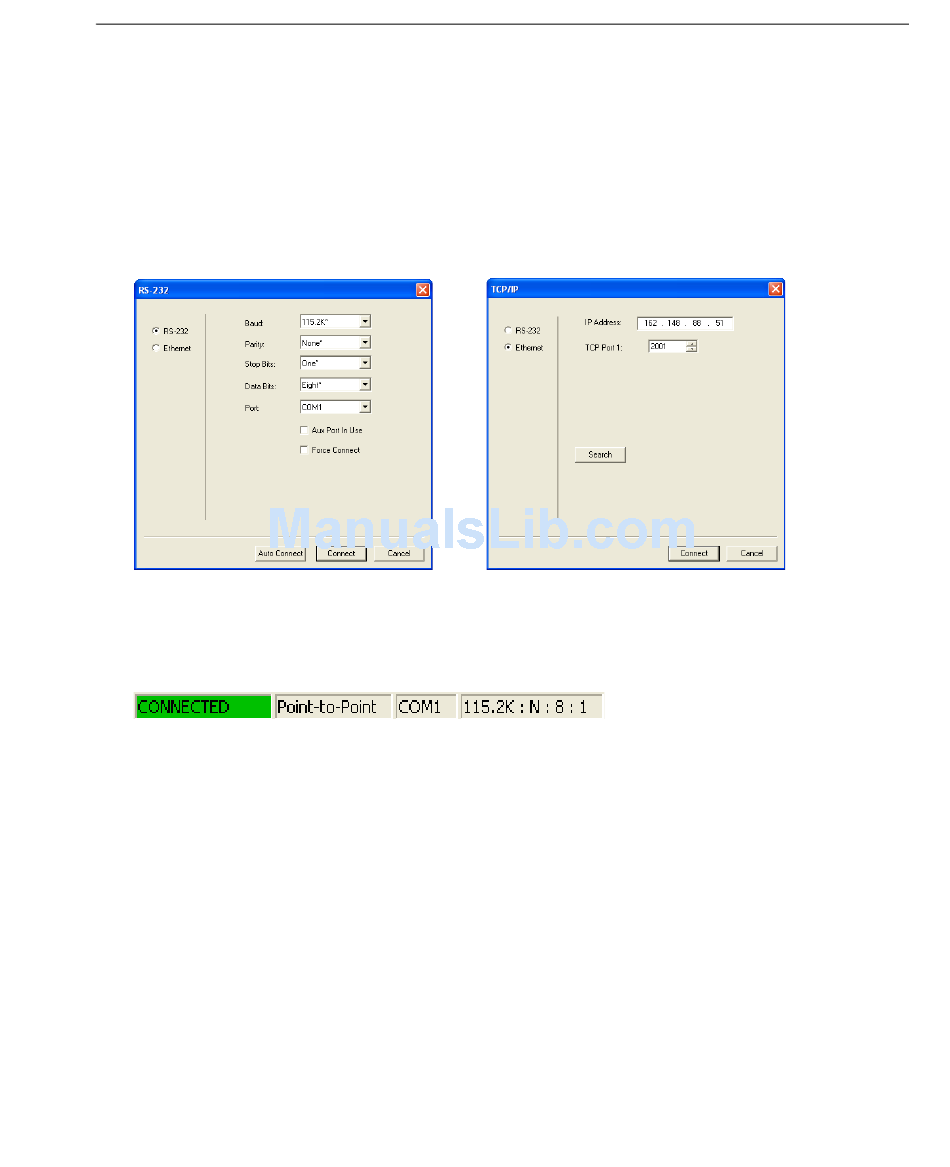

RS-232 Connection Wizard
• When a connection is established, the green indicator in the status bar at the bottom
right of the screen will be visible:
Important: The imager is in Continuous Read Mode by default. For best connection
results, be sure that no decodable symbols are within the imager's field of view while
attempting to connect.
QX Hawk Industrial Imager User's Manual
Ethernet Connection Wizard
Quick Start
1-7
