Communication

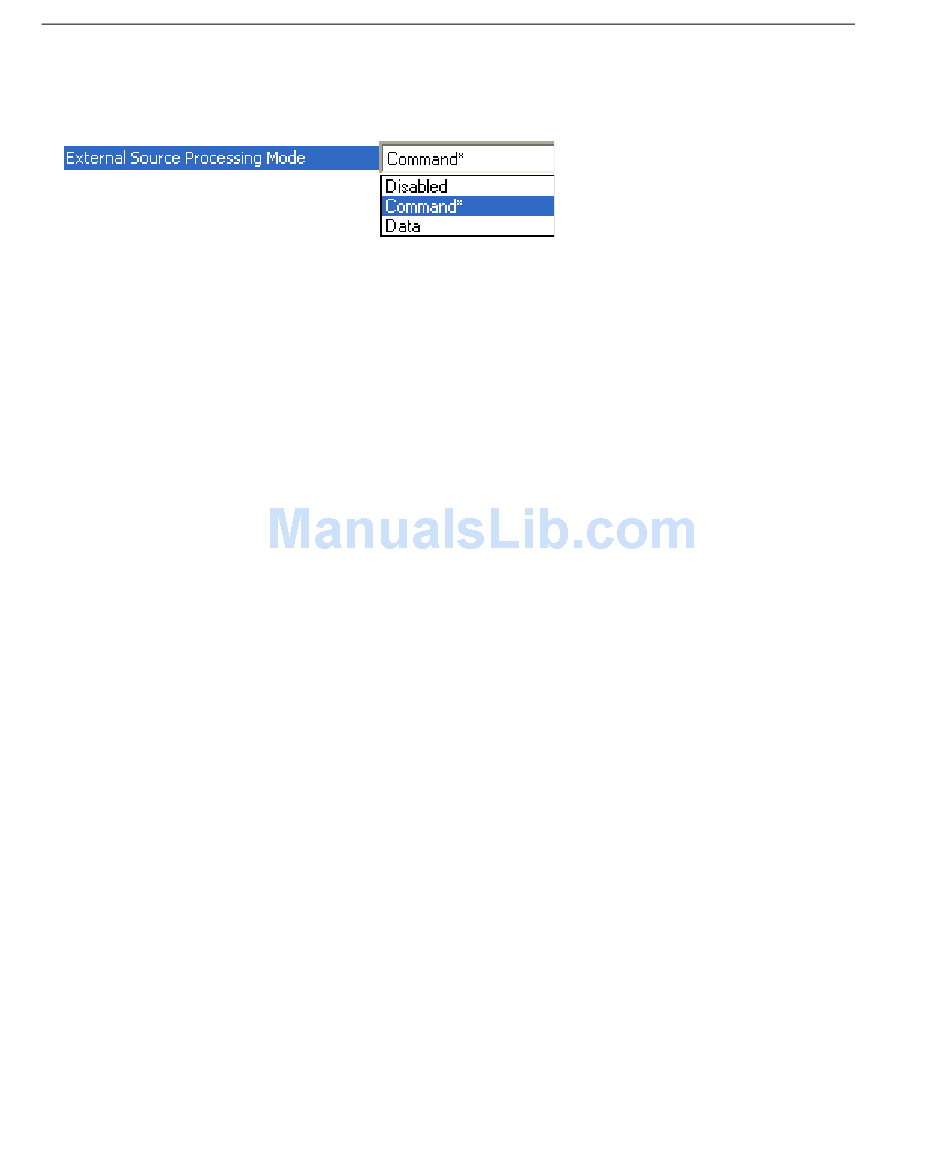

External Source Processing Mode
Enables or disables processing of commands or data from sources external to the imager.
Command
Command enables command processing in the imager.
Data
Data enables RS-422 as a data source port.
Note: The data path between in the source port and out the source port is always two-way.
Data is copied from source data ports and all those source ports' data is transmitted to the
destination port, and from the destination port to the source port.
5-12
QX Hawk Industrial Imager User's Manual
