Configuration Database
The Configuration Database allows the user to manage multiple configuration profiles. It is
a useful tool in applications that require several different imager configurations to be
applied sequentially, and it allows the user to perform far more complex operations than
would be possible with only one set of configuration parameters.

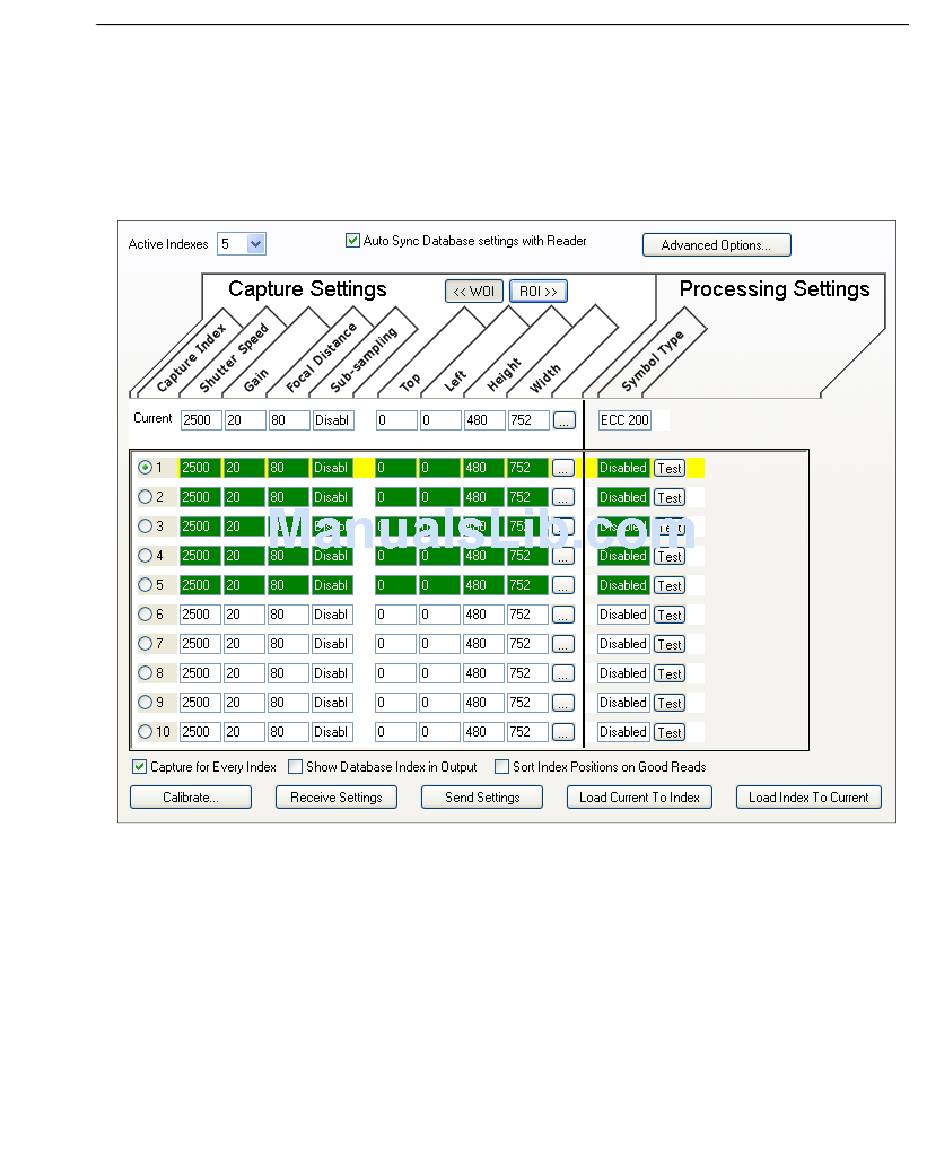

Configuration Database view, set for 5 Active Indexes, with Capture Settings highlighted
As soon as the number of active database settings is something other than 0, the database
is enabled. Once enabled, the current configuration settings (that are handled by the database)
have no impact on imager operation.
Capture Index
Each index in the database can be configured and tested individually.
QX Hawk Industrial Imager User's Manual
Setup
4-17
