Read Cycle

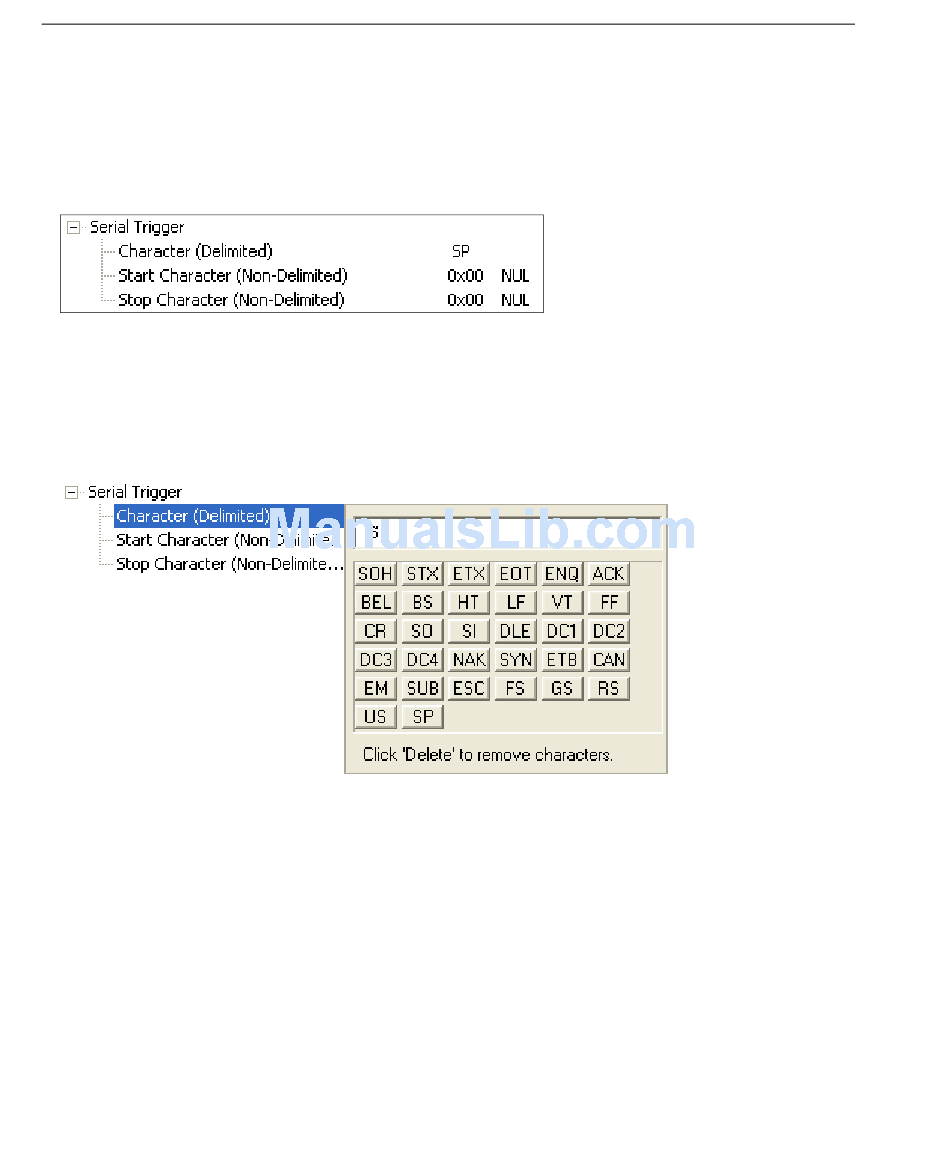

Serial Trigger

Allows the user to define the trigger character and delimiters that start and stop the read cycle.
A serial trigger is considered an online host command and requires the same command
format as all host commands. It must be entered within angle bracket delimiters
or, in the case of non-delimited triggers, it must define individual start and stop characters.
Character (Delimited)
Allows the user to define the trigger character that initiates the read cycle.
A single ASCII host serial trigger character that initiates the read cycle.
A delimited trigger character is one that either starts or ends the read cycle and is
enclosed by delimiters such as
Note: Serial Data
Trigger Character to function.
5-48
< and >.
or Serial Data and Edge trigger mode must be enabled for Serial
QX Hawk Industrial Imager User's Manual
< and >
