Microscan MINI Hawk Configuration Manual

MINI Hawk
Configuration Guide
Hardware Required
Item Description

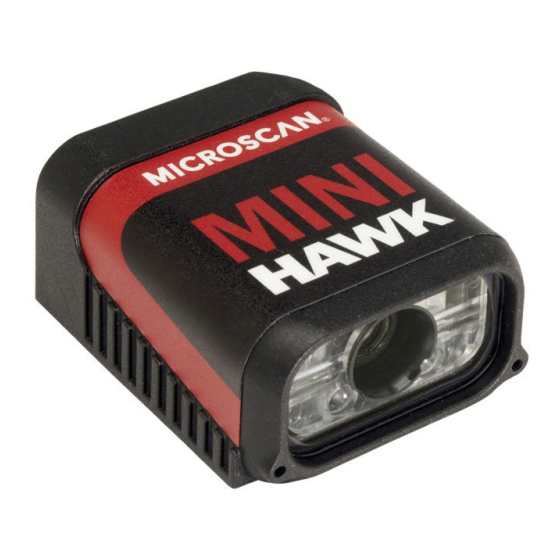

1 MINI Hawk High Performance Imager
2 MS-Connect 210 Connectivity Box
3 IC-332 Voltage Converter (to 10-28V)
4 IB-131 Interface Box
5 Object Detector (Photo Sensor, Visible, NPN, Dark On)
6 Object Detector (Photo Sensor, Visible, NPN, Light On)
7 Power Supply (90-264 VAC, 24VDC, USA/Euro plug)
8 Power Supply (90-264 VAC, +5VDC)
9 Breakout Cable (USB, Flying Leads, 3')
10 Host Cable (MS-Connect 210 to Host, User-stripped to 9-pin)
11 Reader Cable (Reader to MS-Connect 210, 6')
12 Daisy Chain Cable (IB-131 to IB-131, 1')
13 Communication Cable (IB-131 to Host, 6')
Configurations
USB (5V)
9
8
Daisy Chain (10-28V)
1
3
12
4
13
7 5
Copyright ©2015 Microscan Systems, Inc.
1
1
3
4
7
Standalone (10-28V)
3
13
7
Standalone with MS-Connect 210 (10-28V)
2
11
7
3
Part Number
FIS-6300-XXXXG
FIS-0210-000XG
FIS-0001-0035G
99-000018-01
99-000017-01
99-000017-02
97-000012-02
97-000011-02
61-000151-01
61-000105-01
61-000127-01
61-100029-03
61-300026-03
1
4
5
10
6
1
P/N 83-216300 Rev D
