Step 11 — Save Changes

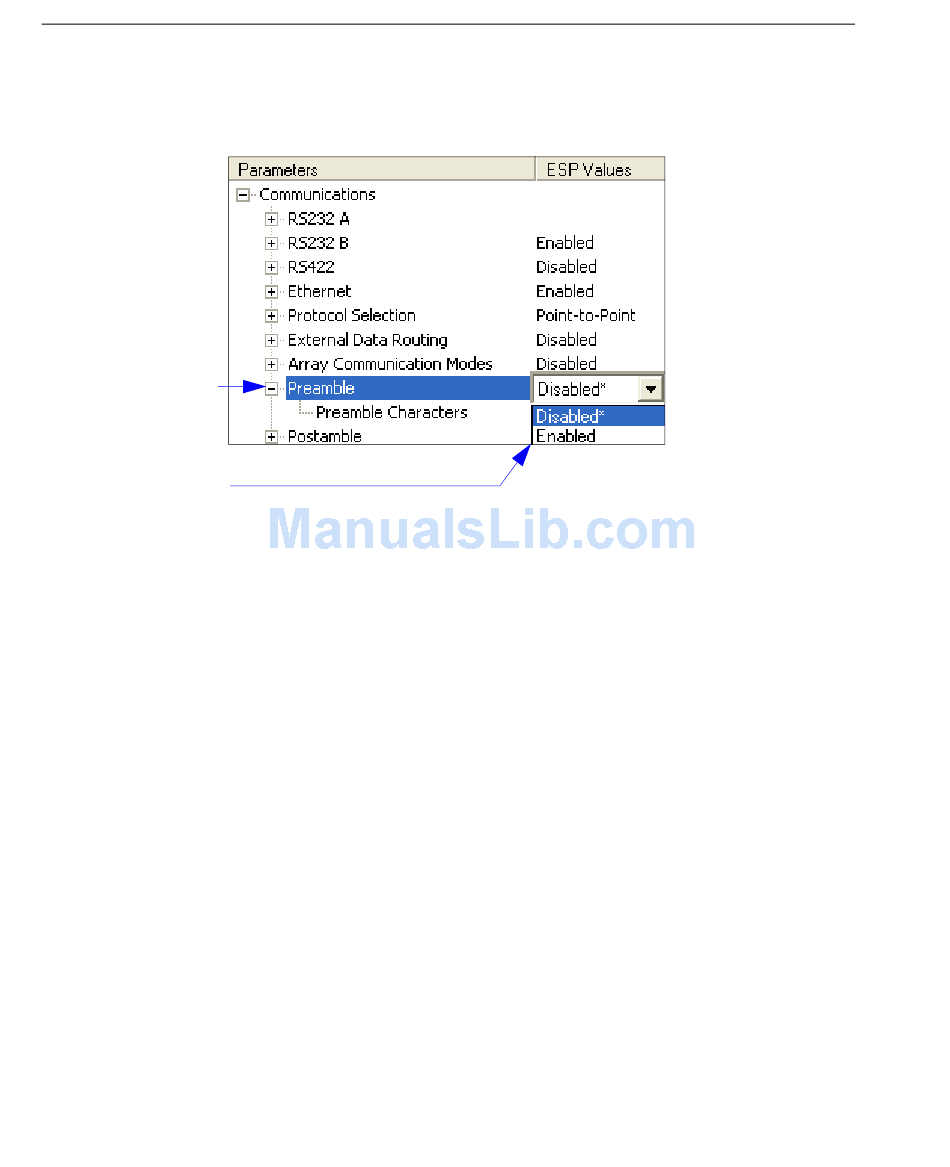

To make changes to configuration settings in the tree controls:
+
1. Left-click on the
to expand the
desired tree.
2. Double-click on the
desired parameter
and click once in the
selection box to view
options.
3. Place the cursor in
the selection box,
scroll down to the
setting you want to
change, and click
once on the setting.
Saving Options
• Send, No Save. Changes will be lost when power is re-applied to the imager.
• Send and Save. This activates all changes in current memory and saves to the imager
for power-on.
1-14
4. Left-click again on the
open screen to complete
the selection.
5. Right-click on the open
screen and select Save to
Reader to implement the
command in the imager.
