Power and Trigger Switching

Power and Trigger Switching

1, 3 1, 2,
3
PWR
TRIG
1, 2,
1, 3,
3, T
T
3-8

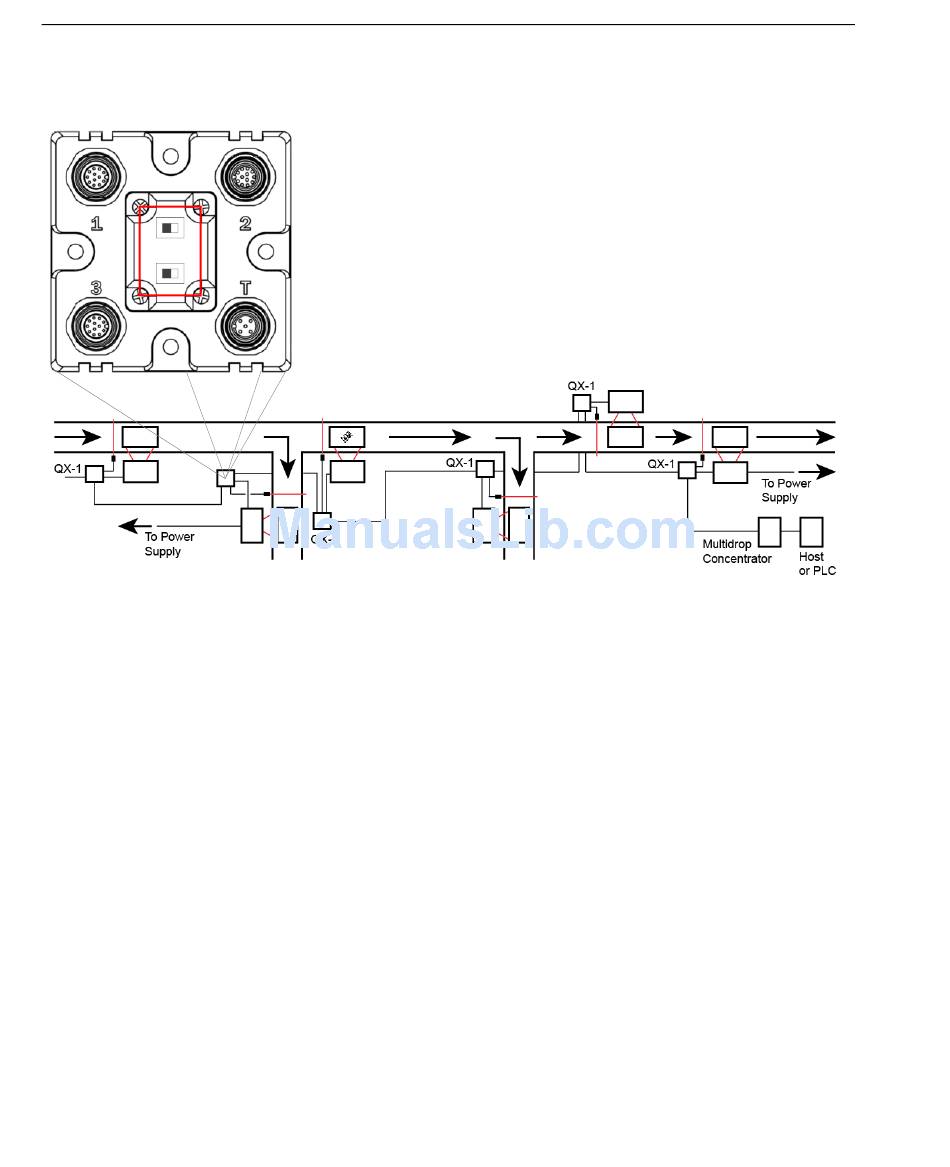

Power can be bussed between imagers and interface
devices. At each location on a network where a new power
supply is added, the Power switch on the QX-1 can be
used to break power between Connector 2 and Connectors
1, 3, and T.
The Trigger signal between Connector 2 and Connectors
1, 3, and T can be broken using the Trigger switch. This
isolates trigger signals as required by the application.
