Parameters

Symbology Identifier

Symbology Identifier is a standard prefix set of characters that identifies the symbol type.
When enabled, the imager analyzes and identifies the symbology and adds a three-character
identifying prefix to the data:
• ] (closed bracket character) indicating the presence of a symbology identifier.
• A, C, E, F, G, I, L, e, or p
• (A = Code 39; C = Code 128; E = UPC/EAN; F = Codabar; G = Code 93; I = Interleaved
2 of 5; L = PDF417 and MicroPDF417; e = GS1 DataBar (RSS); p = Pharmacode)
• Modifier
Example: ]C indicates a Code 128 symbol.

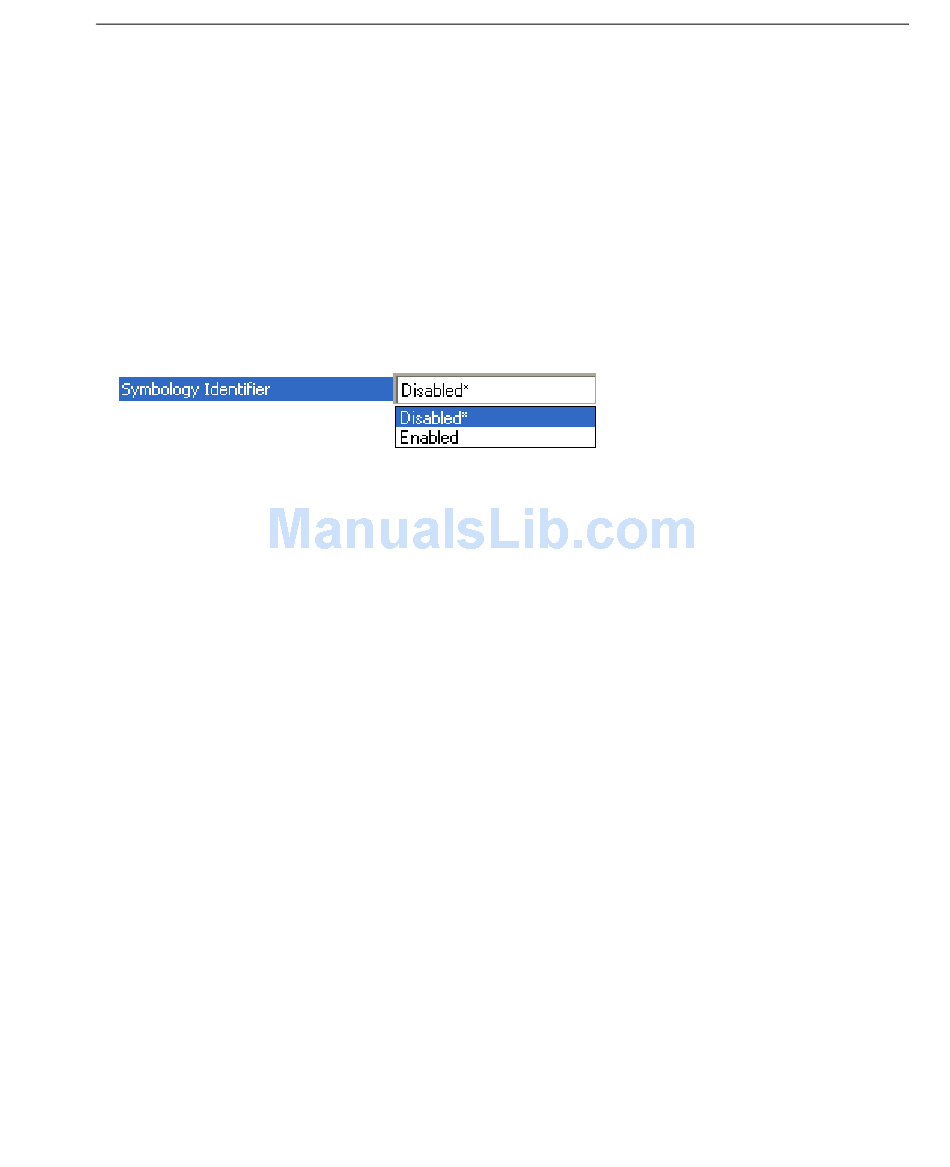

Disabled
When set to Disabled, symbol data output does not contain Symbology Identifier information.
Enabled
When set to Enabled, symbol data output contains a Symbology Identifier sequence.
5-91
