I/O Parameters

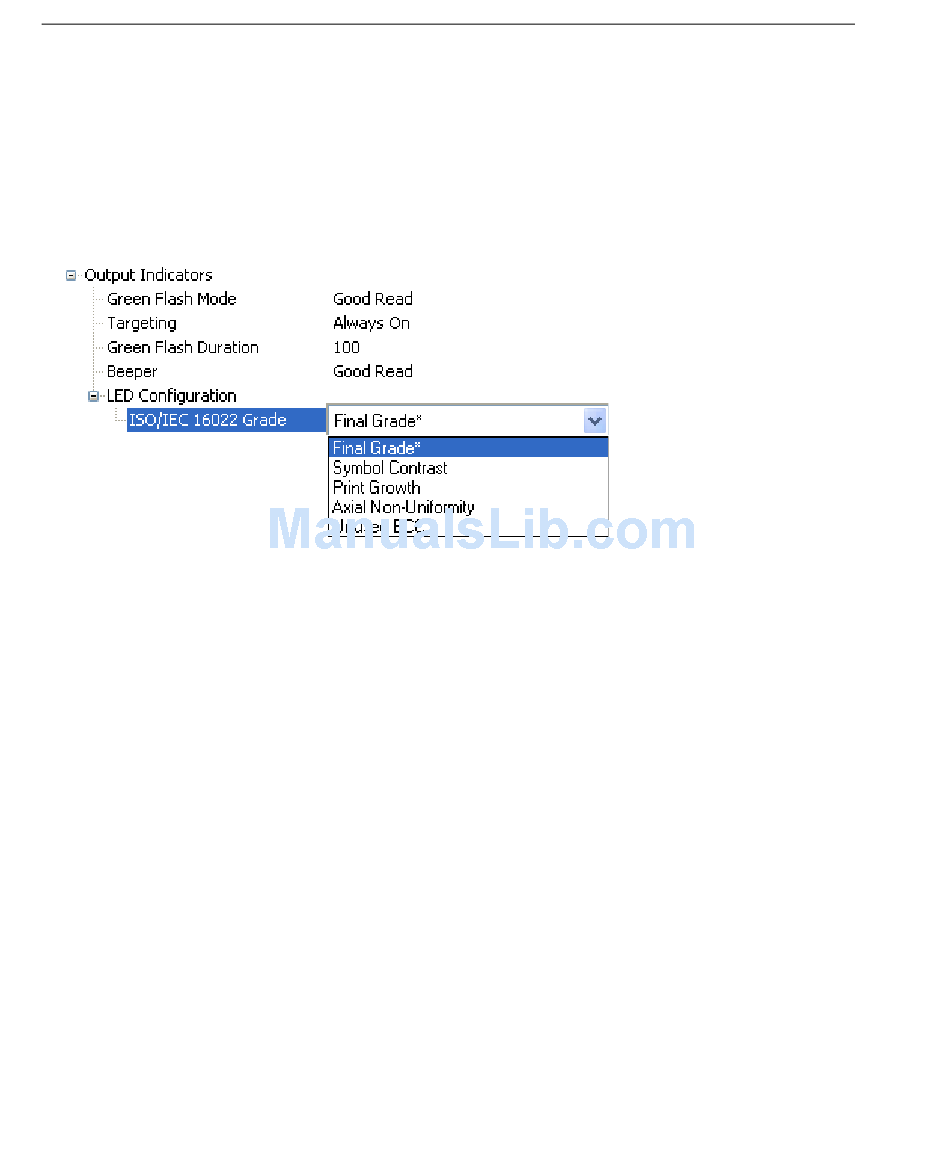

LED Configuration
When the Symbol Grade Standard is set to ISO/IEC 16022 grade and the Bar Graph is
configured for Grading, this parameter determines which ISO/IEC 16022 grade to display
on the LED bar graph. Using the read rate scale as reference if the ISO/IEC 16022 grade
result was a grade A, all the LEDs from 20% to 100% would be illuminated. If the result
was a grade F, only the 20% LED would illuminate.
ISO/IEC 16022 Grade
Final Grade
LEDs represent ISO/IEC 16022 final grade.
Symbol Contrast
LEDs represent ISO/IEC 16022 Symbol Contrast grade.
Print Growth
LEDs represent ISO/IEC 16022 Print Growth grade.
Axial Non-Uniformity
LEDs represent ISO/IEC 16022 Axial Non-Uniformity grade.
Unused ECC
LEDs represent ISO/IEC 16022 Unused ECC grade.
5-102
QX Hawk Industrial Imager User's Manual
