Microscan MicroHAWK 98-9000077-01 Accessory Manual

MicroHAWK Accessory Guide
This guide contains instructions for how to install the following accessories on a MicroHAWK ID-20, ID-30,
or ID-40 Reader, or on a MicroHAWK MV-20, MV-30, or MV-40 Smart Camera:
• Kit, Diffuser, MicroHAWK ID-20/MV-20 (98-9000077-01)
• Kit, Polarizer, MicroHAWK ID-20/MV-20 (98-9000062-01)
• Kit, Window Replacement, MicroHAWK ID-30 and ID-40/MV-30 and MV-40 (98-9000051-01)
• Kit, Red LEDs, MicroHAWK ID-30 and ID-40/MV-30 and MV-40 (98-9000045-01)
• Kit, White LEDs, MicroHAWK ID-30 and ID-40/MV-30 and MV-40 (98-9000046-01)
MicroHAWK ID-20/MV-20

Diffuser Kit Hardware, MicroHAWK ID-20/MV-20

Qty. Description
1 Kit, Diffuser, MicroHAWK ID-20/MV-20

Diffuser Kit Installation, MicroHAWK ID-20/MV-20

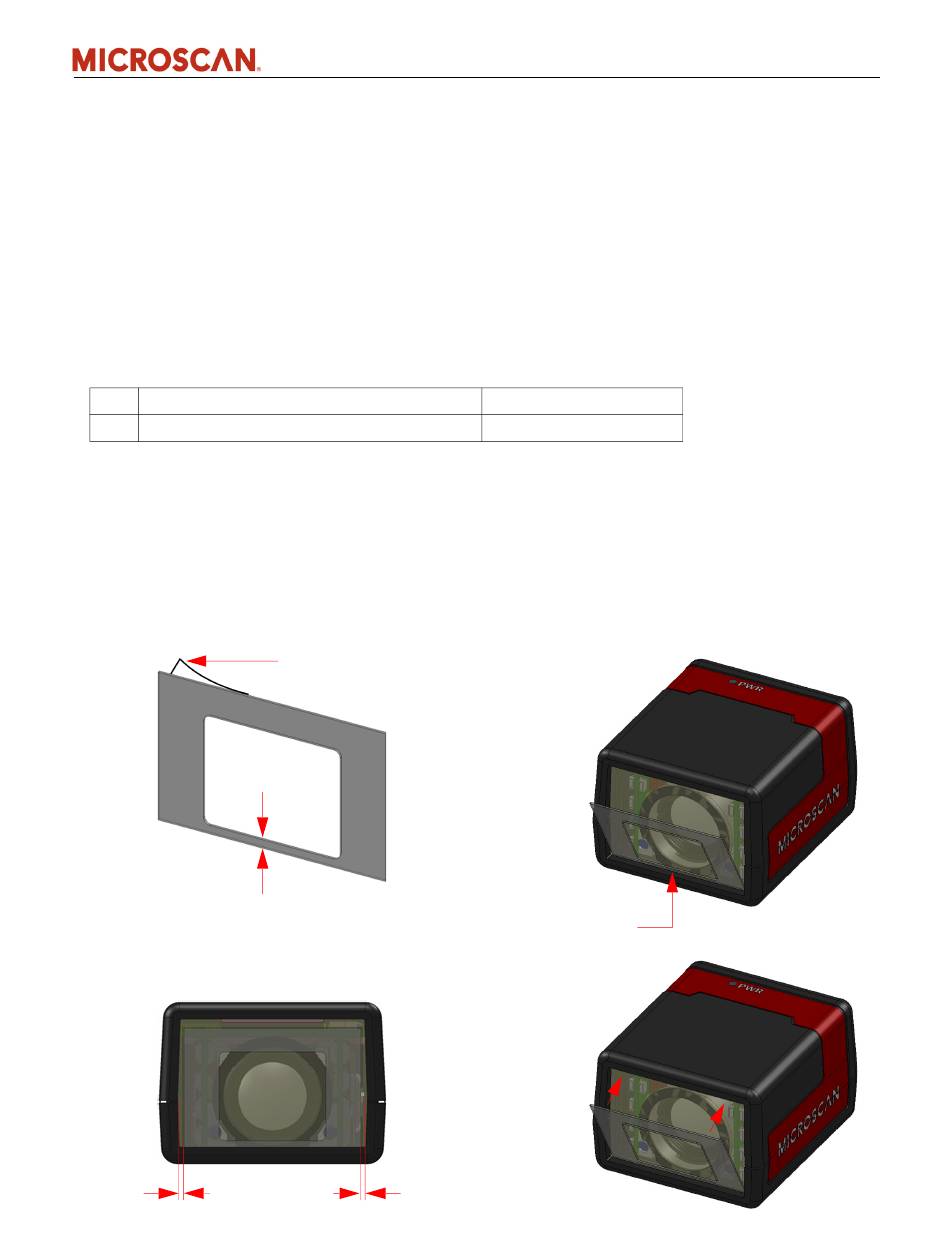

Step 1: Peel the protective liner from the adhesive on the diffuser.
Step 2: Rest the narrow edge of the diffuser on the bottom edge of the window opening at an angle as
shown below.
Step 3: Center the diffuser left-to-right in the window opening.
Step 4: Affix the diffuser to the window.
Step 5: Run your finger over the surface of the diffuser using light pressure to complete the bond.
Step 1
Narrow Edge
Step 3
Diffuser Centered
(Equal Gaps)
Peel Protective Liner
Part Number
98-9000077-01
Step 2
Bottom Edge of
Window Opening
Steps 4 and 5
P/N 83-9220129-02 Rev B
