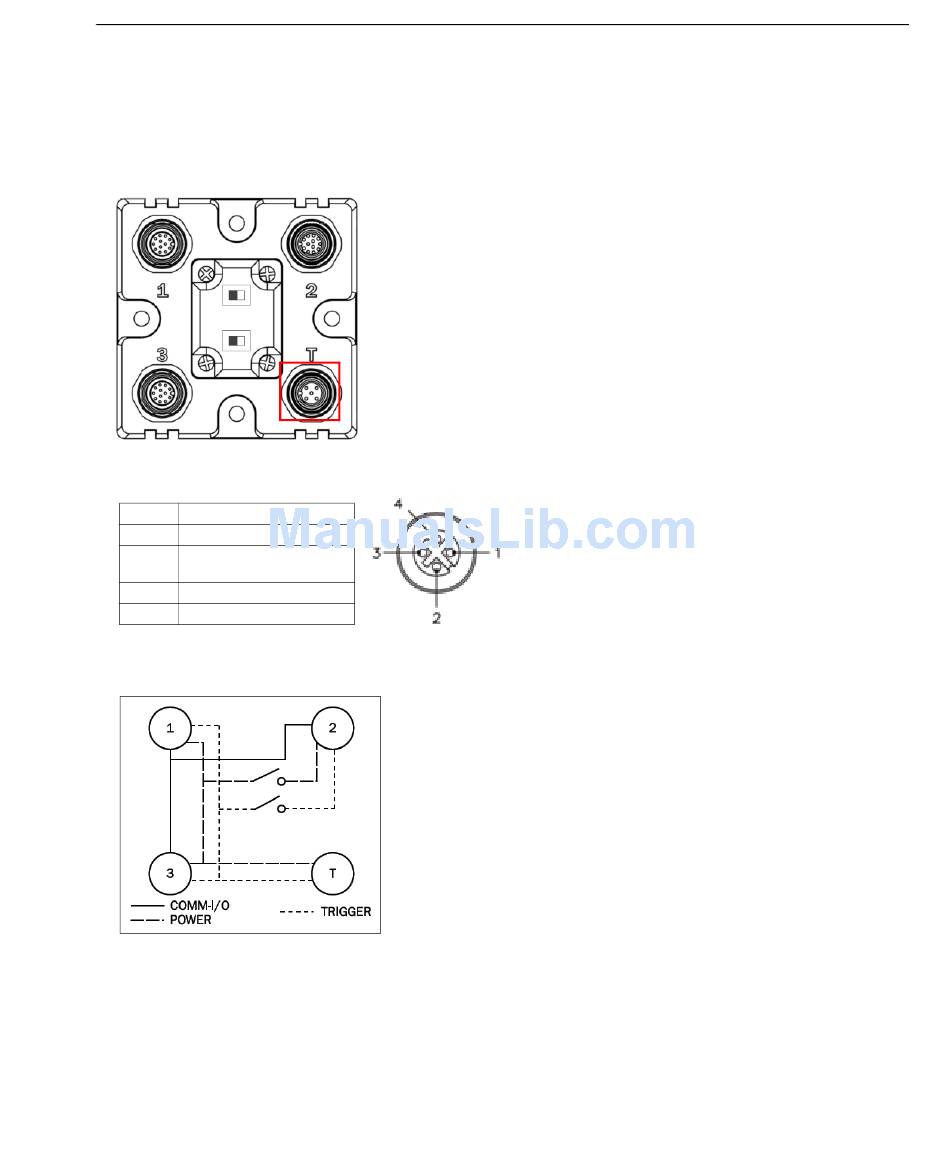

QX-1 Interface Device
The QX-1 Interface Device's receptacles are physically the same as those on the QX Hawk,
but they do not have explicit pin assignments. The QX-1 allows users to bus power and
communications as required by the application.
1, 3 1, 2,
3
PWR
TRIG
1, 3, 1, 2,
T 3, T
QX-1 Interface Device
Pin Assignment
1 + 10-28V
Trig/NM/Input 1
2
Common
3 Ground
4 Trigger
QX-1 Trigger Connector 4-pin Socket
QX-1 Communications - I/O -
Power - Trigger
QX Hawk Industrial Imager User's Manual
Connectors 1 and 3 are 12-pin plugs, and Connector 2 is a 12-pin socket.
All three connectors can be assigned to bus power and data as required by
the application.
The two switches at the center of the device allow the user to route signals
as needed.
This simple diagram (shown on the base of the QX-1) illustrates how
power, communications, I/O, and trigger signal can be routed through
the QX-1 device depending on the needs of the application. The
switches greatly increase signal routing flexibility.
Hardware Installation
3-7
