Firmware
Firmware Verification
Request Part Number
Send a request to the imager for application code, boot code, DSP code, or kernel code part
numbers.

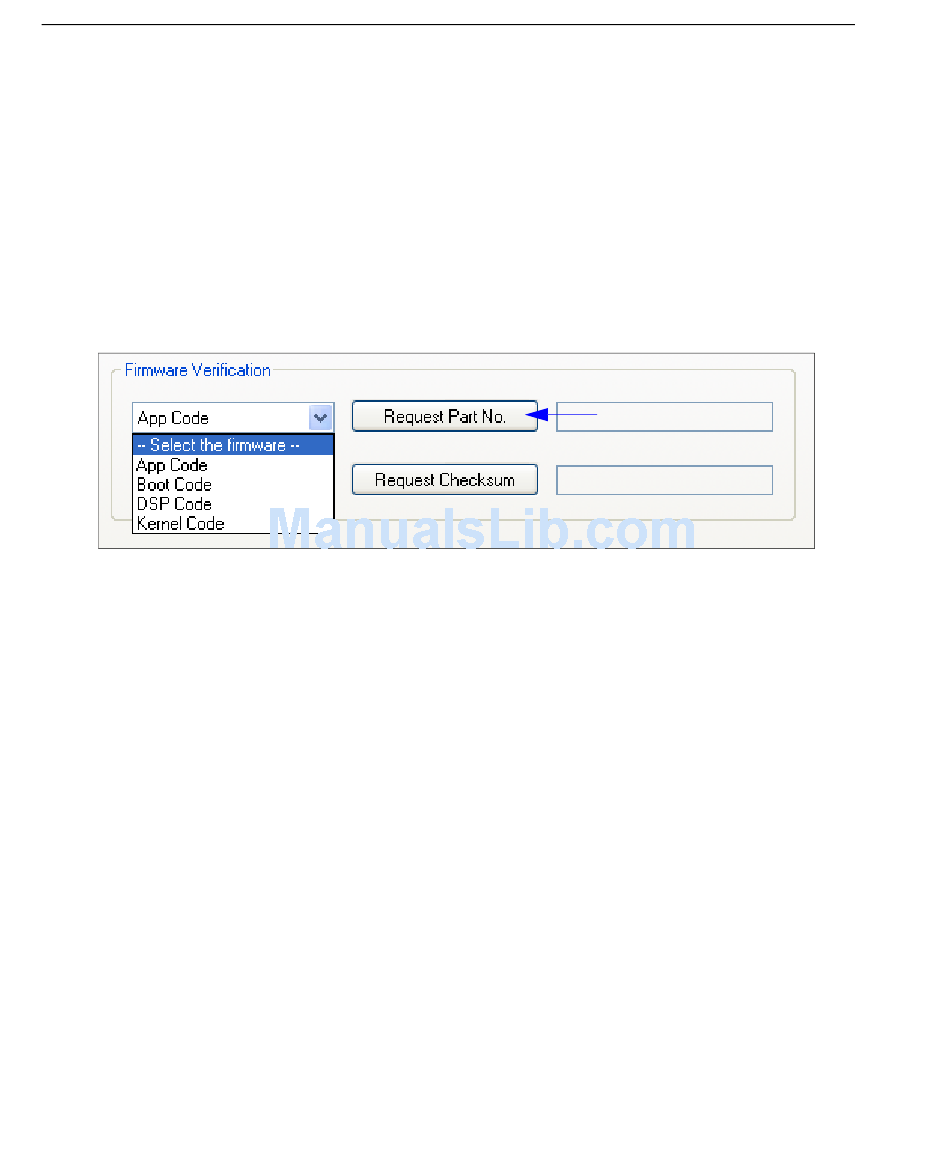

1. Click the Firmware tab.
2. Select App Code, Boot Code, DSP Code, or Kernel Code from the dropdown menu
to the left of the Request Part No. button.
3. Click the Request Part No. button to see the part number displayed in the text field
to the right.
Request Part Number by Serial Command
Note: X = base part number; R = revision number
• When
<#>
(a request for all part numbers) is sent, the imager returns:
<#a/35-XXXXXX-RR><#b/35-XXXXXX-RR><#d/35-XXXXXX-RR><#k/35-XXXXXX-RR>.
• When
<#a>
(a request for the application code part number) is sent, the imager returns:
<#a/35-XXXXXX-RR>.
• When
<#b>
(a request for the boot code part number) is sent, the imager returns:
<#b/35-XXXXXX-RR>.
• When
<#d>
(a request for the DSP code part number) is sent, the imager returns:
<#d/35-XXXXXX-RR>.
• When
<#k>
(a request for the kernel code part number) is sent, the imager returns:
<#k/35-XXXXXX-RR>.
• When
<#s>
(a request for the SafeMode part number) is sent, the imager returns:
<#s/35-XXXXXX-RR>
7-18
QX Hawk Industrial Imager User's Manual
