App Mode

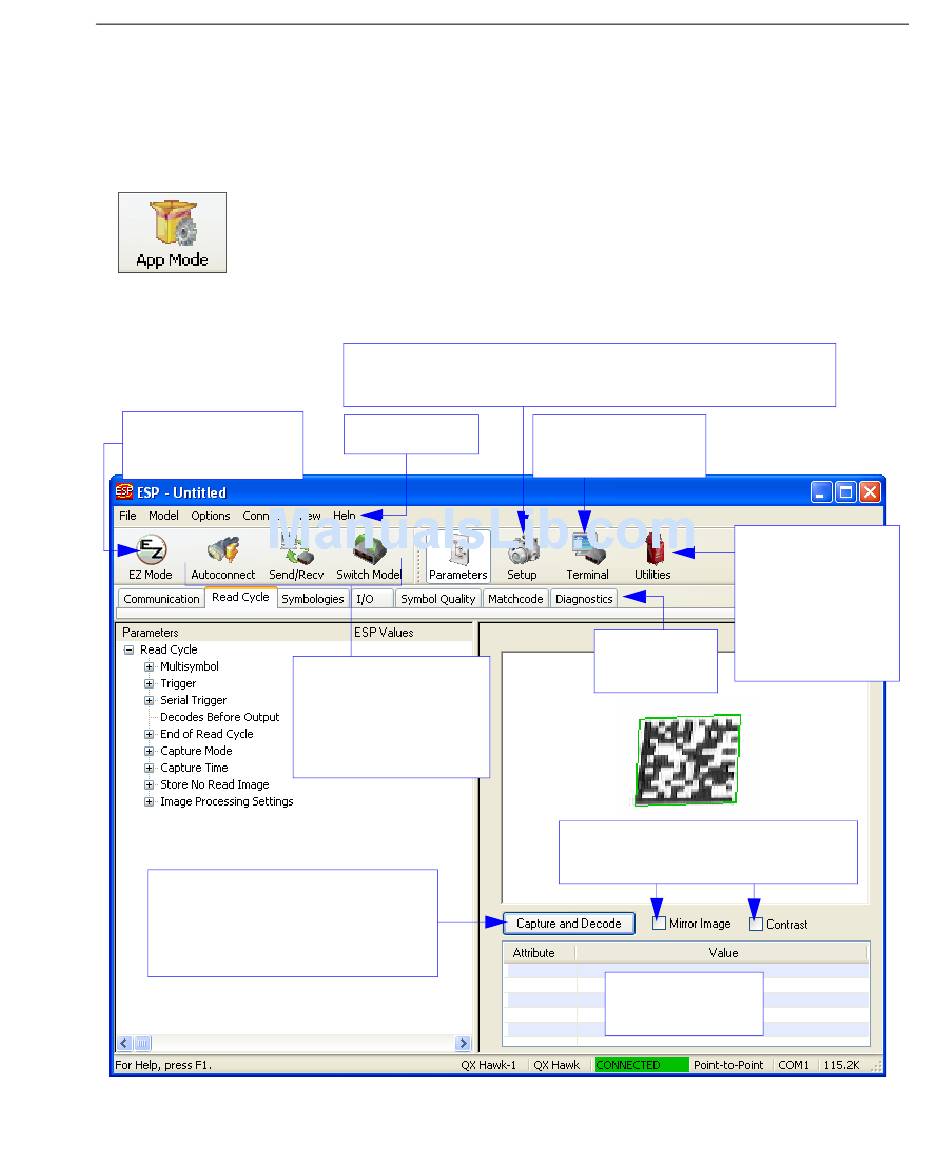

From EZ Mode, click on the App Mode button to access the tabbed tree controls in
Parameters, the intuitive user interfaces in Setup, the Terminal interface, and the Utilities
interface.
Note: The App Mode and EZ Mode buttons appear in the same position to allow easy
switching between these primary modes.
Click this icon to
return to EZ Mode.
Click Capture and Decode to
decode the symbol in the field of
view, and to see a high resolution
image capture of the symbol.
QX Hawk Industrial Imager User's Manual
Video, Evaluation, Calibration, WOI, Configuration Database,
Ordered Output, Output Format, Dynamic Setup
Menu toolbar
Autoconnect to the
imager, Send and
Receive command
settings, and
Switch Model.
Click here to open
the Terminal view.
Tabbed tree
controls
Mirror Image reverses the image.
Contrast brightens the image.
Symbol data is
displayed here.
Using ESP
Read Rate,
Counters,
Device Control,
Differences
from Default,
Master Database,
Firmware
2-3
