QX Hawk and QX-1 Connectors and Pinouts

QX Hawk and QX-1 Connectors and Pinouts

When deploying a network of imagers and interface devices in an industrial setting, it is
important to use components whose pin assignments are arranged in a way that avoids
communication errors and equipment damage. This can be achieved with components
that are designed in a logical, consistent, and easy-to-implement way.
The QX Hawk has a very simple pin assignment methodology. The clearly identified connectors
at the back of the unit can be used to receive and bus power, and also to send and receive
data and commands.
See Appendix C –
the imager correctly.

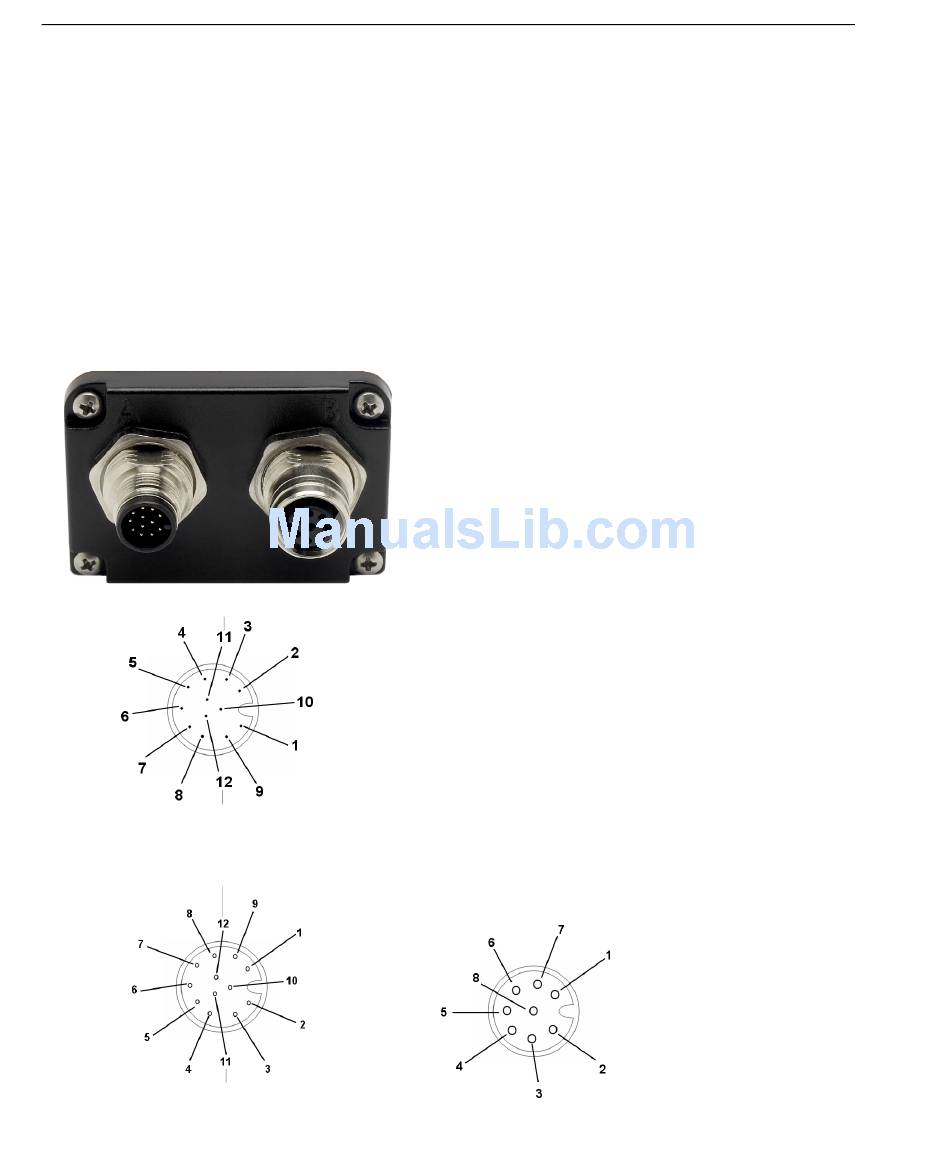

QX Hawk (Back View)
Output 2
New Master
Output 1
Output 3
Ground
Input Common
Output Common
A (Serial) M12 12-pin Plug
RS-422/485 RxD (–)
Input
Common
Ground
RS-422/485
RxD (+)
RS-422/485
TxD (+)
Input 1
RS-422/485 TxD (–)
B (Serial) M12 12-pin Socket
3-4
Ground and Shield Considerations
A is a serial M12 12-pin plug.
B is a serial M12 12-pin socket or an Ethernet M12
8-pin socket.
Default
Power
RS-232
TxD
Trigger
RS-232 RxD
RS-232 TxD/
RS-232 RTS
Trigger
RS-232 RxD/
RS-232 CTS
Power
Terminated
for information about grounding
Terminated
TX (+)
RX (–)
RX (+)
Terminated
TX (–)
Terminated
B (Ethernet) M12 8-pin Socket
QX Hawk Industrial Imager User's Manual
Terminated
