Using ESP

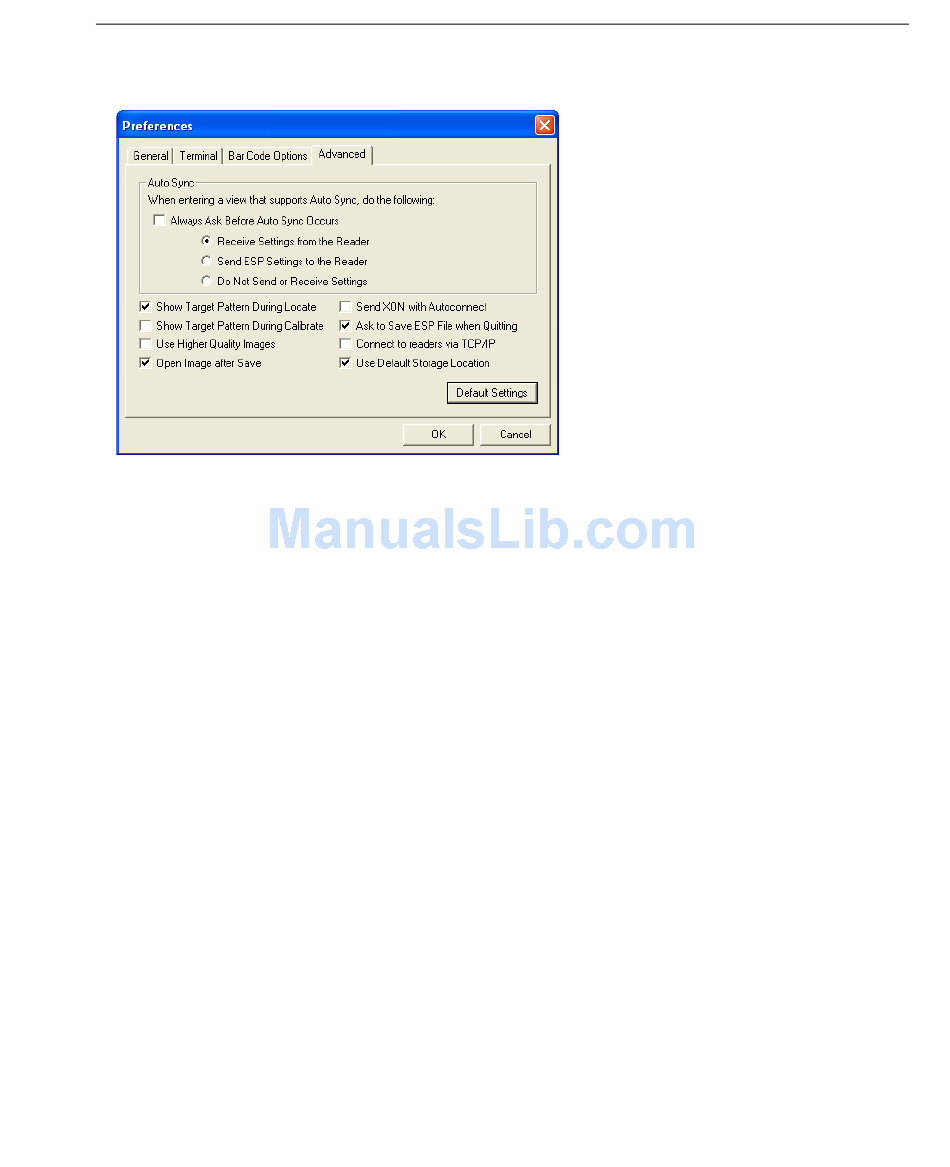

Preferences > Advanced Tab
The Auto Sync options at the top of the Advanced tab allow the user to determine
whether Auto Sync will be enabled automatically in sections of ESP where it is used, or if it
will ask before it enables Auto Sync functions.
Always Ask Before Auto Sync Occurs
If this option box is checked, specific Auto Sync functions can be enabled. Receive Settings
from the Reader will automatically send the imager's settings to ESP when Auto Sync is
enabled. Send ESP Settings to the Reader will automatically send all imager configuration
settings chosen in ESP to the imager. Do Not Send or Receive Settings creates a condition
in which Auto Sync will not automatically send imager settings to ESP, or send ESP settings
to the imager.
Show Target Pattern During Locate
Allows you to determine whether the blue LED target pattern will be on or off during the
Locate routine.
Show Target Pattern During Calibrate
Allows you to determine whether the blue LED target pattern will be on or off during the
Calibrate routine.
Use Higher Quality Images
Sets ESP to output images at a higher resolution than standard JPEG format.
Open Image after Save
When Open Image after Save is enabled, ESP automatically opens saved image captures.
Images can be saved from the Evaluation tab in the Camera view, or by right clicking an
image in any other image capture view and then saving.
Send XON with Autoconnect
Sends an XON (Begin Transmission) command to the imager before starting the Autoconnect
routine.
