Microscan Mobile Hawk Quick Start Manual

Quick Start Guide

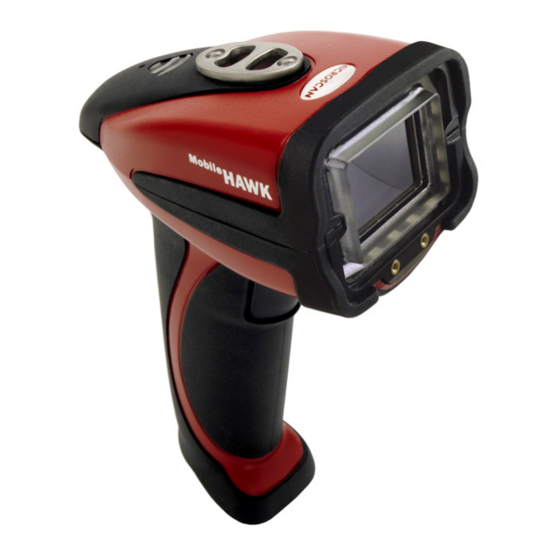

Mobile Hawk
Handheld DPM Imager
Step 2 — Set Up Hardware (RS-232)
Hardware for RS-232
1 Mobile Hawk Handheld DPM Imager FIS-6170-0001G
RS-232 Interface Kit (USA) 98-000074-04
3 RS-232 Interface Kit (Europe) 98-000074-05
RS-232 Interface Kit (UK) 98-000074-06
Installation Steps for RS-232
1. Power-off the host.
2. Attach the RS-232 cable to the
Mobile Hawk.
3. Connect the RS-232 cable to
the power supply cable.
4. Plug in the power supply and
power-on the host.
5. Open a terminal program
(HyperTerminal, for example)
and set 57.6K baud rate, 8
data bits, none parity, and 2 stop bits.
6. Read the Reset to RS-232 Factory Defaults symbol
below.
7. Read the Save Settings symbol below.
Reset to RS-232
Test Symbol
Factory Defaults
Step 1 — Check Required Hardware
Mobile Hawk USB Hardware
1. One Mobile Hawk Handheld DPM Imager
2. One 12 ft. USB cable (pre-installed)
Mobile Hawk RS-232 Hardware
The RS-232 cable is affixed to the handle with two screws, a spacer,
and a cable clip, which can be removed.
1. One Mobile Hawk Handheld DPM Imager
2. Cable clip attachment
3. Spacer
4. Two threaded screws
5. RS-232 Interface Kit (Optional Accessory)
• 8 ft. coiled RS-232 cable
• Power supply (U.S. Euro, or UK)
Refer to the Mobile Hawk Handheld DPM Imager User's Manual for
information about changing or adding cables.
P/N 83-110022 Rev A
Step 3 — Install ESP
ESP Software can be found on the Microscan Tools CD that is packaged
with the Mobile Hawk.
1. Follow the prompts to install ESP from the CD.
2. Click on the ESP icon to run the program.
Note: ESP can also be installed from the Download Center at
www.microscan.com.
Minimum System Requirements
• 166 MHz Pentium processor (Pentium II processor recommended)
RS-232 Hardware
• Windows Vista, XP, or 2000 operating system
• Internet Explorer 5.0 or higher
• 64 MB minimum RAM (128+ MB RAM recommended)
• 80 MB hard drive space
• 800 x 600 minimum 256 color display (1024 x 768 32-bit color
recommended)
Important: The imager must be in USB or RS-232 Mode to connect
to ESP. Read the symbol below that corresponds with your communication
interface.
USB
Save
Settings Mode
Step 2 — Set Up Hardware (USB)
Note: The USB interface draws its power from the host.
Hardware for USB
Installation Steps for USB
Step 4 — Select Model
When you start ESP, the following menu will appear:
RS-232
Mode
1 Mobile Hawk Handheld DPM Imager FIS-6170-0001G
2 USB Cable Included
1. Connect the USB cable (2) to
the Mobile Hawk (1).
2. Connect the USB cable (2) to
the host. You do not need to
power off your host computer.
3. Open any program in your
host computer that can receive
keyboard text.
4. Read the Reset to USB Factory
Defaults symbol below.
Note: If you want symbol data
to be entered as keyboard text, read the USB Keyboard
Mode symbol below.
5. Read the Save Settings symbol below.
USB Keyboard Test Symbol
Reset to USB
Factory Mode
Defaults
1. Click the Mobile Hawk button and then click OK. If you do
not want to make this selection every time you start ESP,
uncheck "Show this dialog at startup".
2. Select the default imager name (Mobile Hawk-1), or type a
name of your choice in the Description text field and click OK.
3. Click Yes when this dialog appears:
USB Hardware
Save
Settings
