EZ Mode allows the user to test read rate and calibrate the imager. After connecting to the
imager, the EZ Mode view will appear. On-screen instructions assist the user with positioning,
testing, and calibration.
Locate/Calibrate/Learn
The calibration routine optimizes the imager by comparing Read Rates at various camera
and image processing settings. Click Locate to find the symbol in the field of view and display
it in the video view. Then click Calibrate to begin the calibration routine. The Learn button
allows you to save information about the next Data Matrix symbol decoded, which allows
faster and more consistent processing.
Test
Click the Test button to start the Read Rate test for a quick indication of the imager's read
capabilities and the limits of the application. When Decodes per Second is unchecked,
the test will count the percentage of decodes relative to the number of actual scans. Click
Stop to end the test.
Click the App Mode button Click the App Mode button
to access configuration trees to access configuration trees
and other setup features. and other setup features.
When Decodes per Second
is checked, the read rate test
displays how many decodes
the imager achieves each
second, instead of displaying
a percentage.
2-2

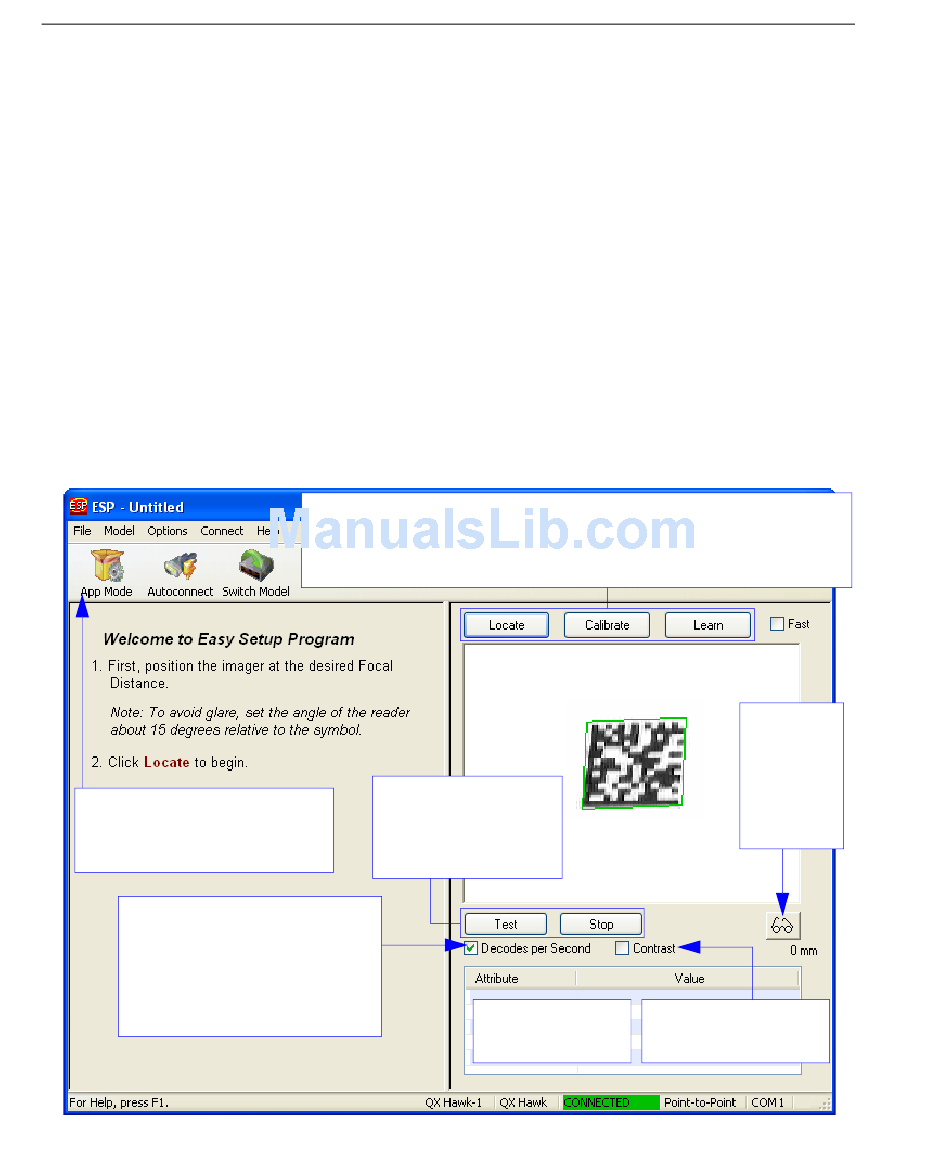

Click Locate to find and display the symbol. Click Calibrate to begin the
