Cordsets
The terms "cordset" and "cable" are both applicable to industrial connectivity, but they are
not synonymous. Cordsets enable communications and power between imagers and
interface devices. Cordsets have an M12 Ultra-Lock connector at one or both ends.

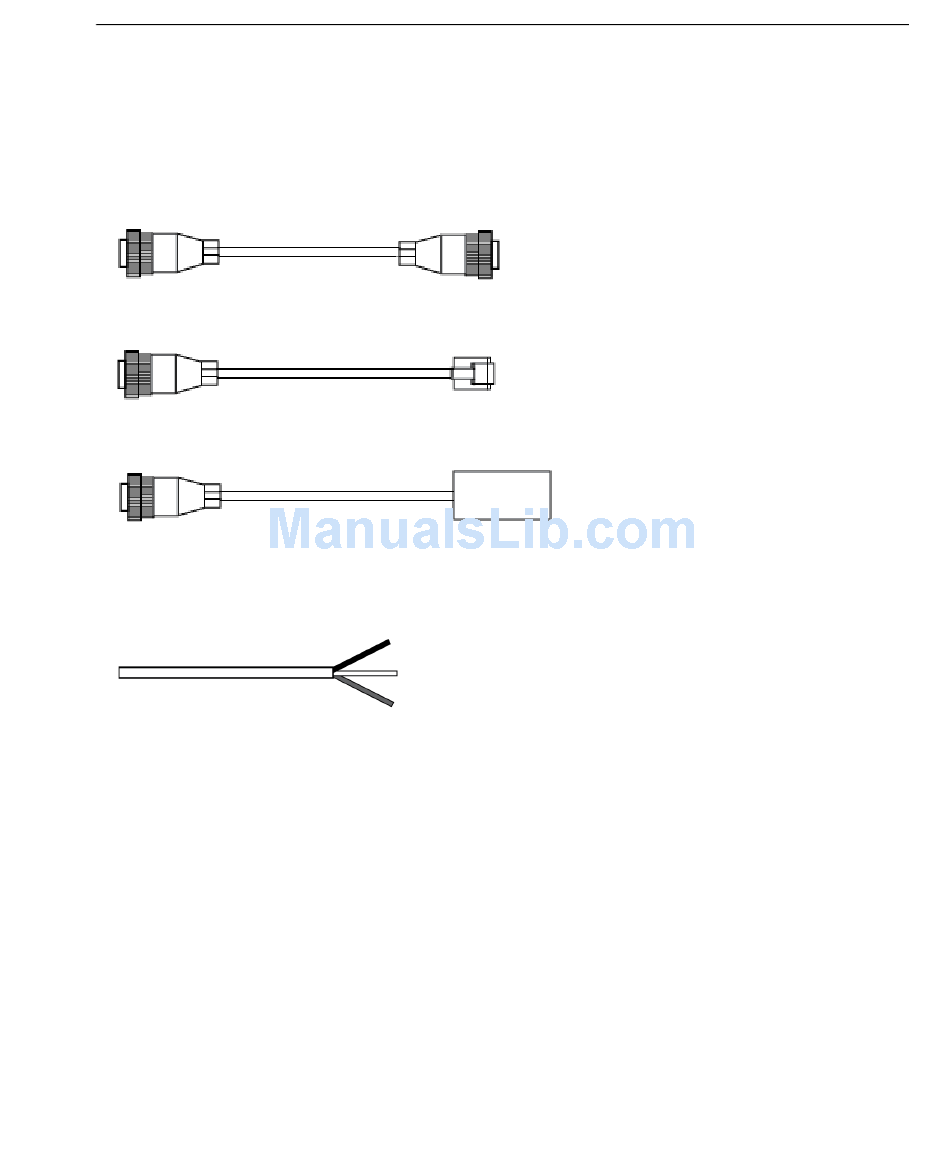

Examples of cordsets are shown below.
M12 Ultra-Lock to M12 Ultra-Lock Cordset
M12 Ultra-Lock to RJ45 (Ethernet) Cordset
M12 Ultra-Lock to Photo Sensor Cordset
Cables do not have M12 Ultra-Lock connectors at either end. An example of a cable is
shown below.
Cable with flying leads
QX Hawk Industrial Imager User's Manual
Hardware Installation
3-3
