Test Pattern - Digital Projection TITAN sx+ 3D Dual 3D Ultra Contrast User Manual

For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4.
4. Controlling the projector 4. Controlling the projector
Setup menu, projector continued

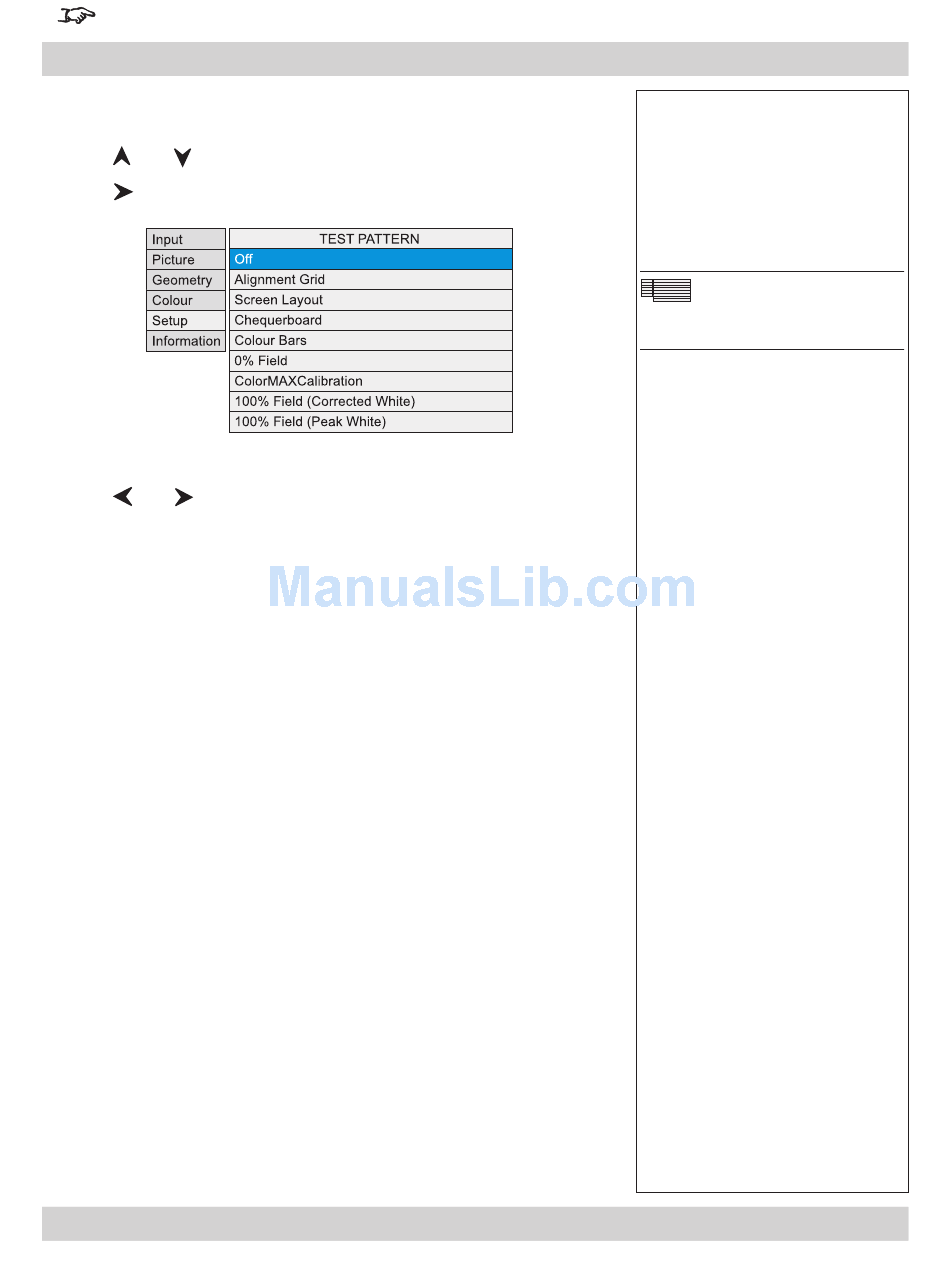

Test pattern

• Press and to select Test Pattern.
Press to open the Test Pattern submenu.
Press and to select from:
Off
Alignment Grid
Screen Layout
Chequerboard
Colour Bars
0% Field
ColorMAX Calibration
100% Field (Corrected White) (white, affected by colour settings)
100% Field (Peak White)
Page 4.36 Page 4.36
Digital Projection Digital Projection
(shows outlines of various aspect ratios)
(black)
(white, unaffected by colour settings)
TITAN sx+ 3D, Dual 3D, Ultra Contrast TITAN sx+ 3D, Dual 3D, Ultra Contrast
Setup Menu
User Manual User Manual
Notes
Test Pattern
Rev A August 2009 Rev A August 2009
