For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4.
4. Controlling the projector 4. Controlling the projector

Input modes and settings

Input mode detection

The projector can automatically detect the following parameters from the incoming
video signal:
• line frequency
• frame rate
• interlace / progressive
From these parameters the projector can determine input mode, for example:
input source horizontal
• composite 15.73KHz
• RGB1 31.51KHz
• SDI 33.8KHz
• DVI 64.02KHz

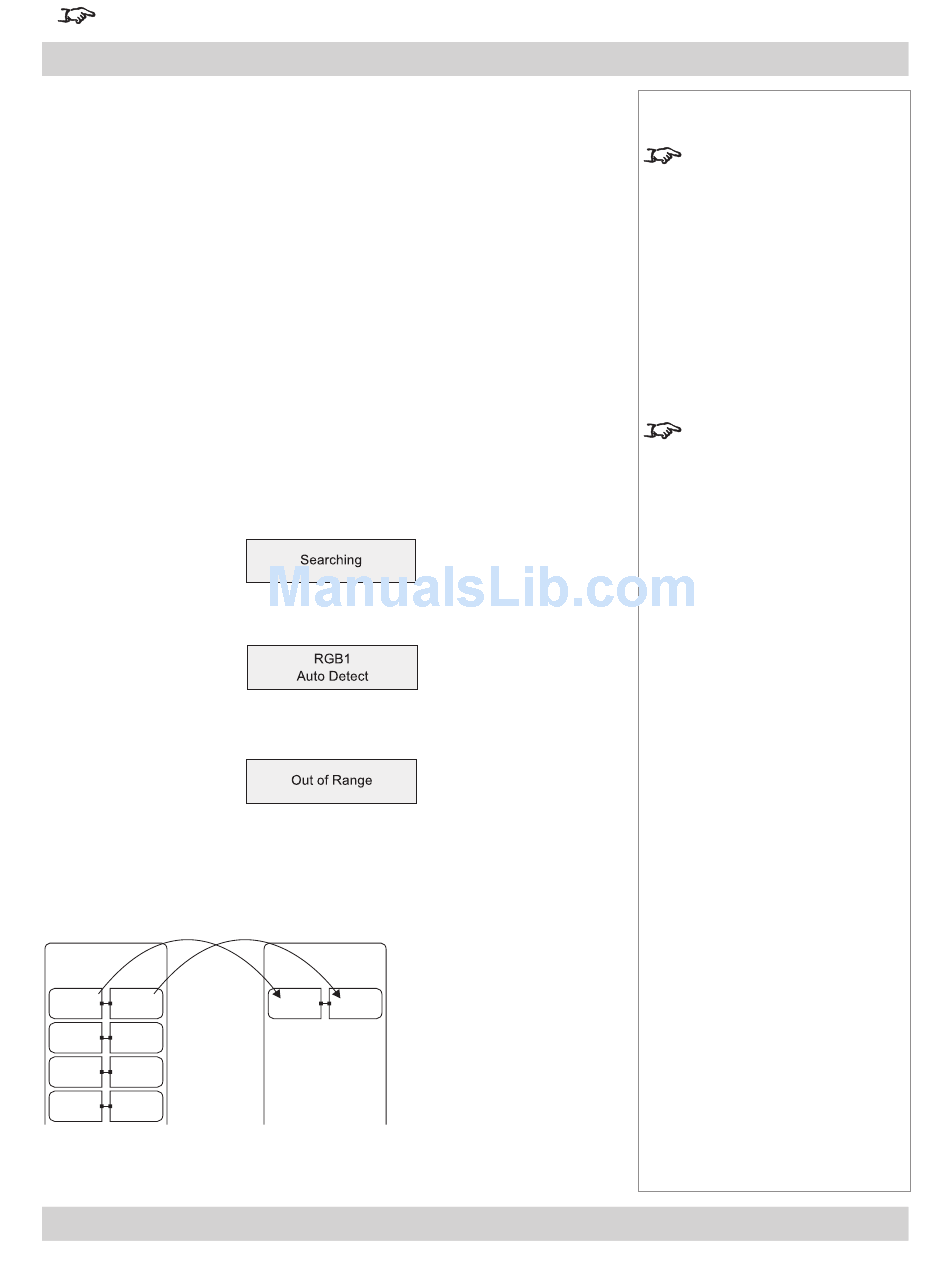

When you select a new input source, the green LED near the input connector will
flash, and the searching message will be displayed.
When the input mode has been detected, the LED will show continuously and the
auto detect message will be displayed, for example:
If the input mode cannot be detected, the LED will continue to flash, to show that the
input is still selected. However, the following message will be displayed:

Mode library and mode history

Once an input mode has been successfully determined for the first time, a set of
default modal settings (picture, geometry and colour), will be copied from the mode
library to the mode history.
Mode
library
mode
defaults
NTSC
detected
SDTV
defaults
480p
HDTV
defaults
1080p
defaults
SVGA
Page 4.6 Page 4.6
Digital Projection Digital Projection
TITAN sx+ 3D, Dual 3D, Ultra Contrast TITAN sx+ 3D, Dual 3D, Ultra Contrast
vertical mode
60.0Hz = NTSC
60.0Hz = SDTV 480p
30.0Hz = HDTV 1080p30
60.0Hz = SXGA 60
Mode
history
User Manual User Manual
Notes
The input mode detection and
mode library described here do
not apply to Input 8. For more
information, see the final pages
of this section.
For a full list of supported input
modes, see Input modes
supported, in section 7.
Appendix.
