For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4.
Digital Projection Digital Projection
TITAN sx+ 3D, Dual 3D, Ultra Contrast TITAN sx+ 3D, Dual 3D, Ultra Contrast
Setup menu, projector continued

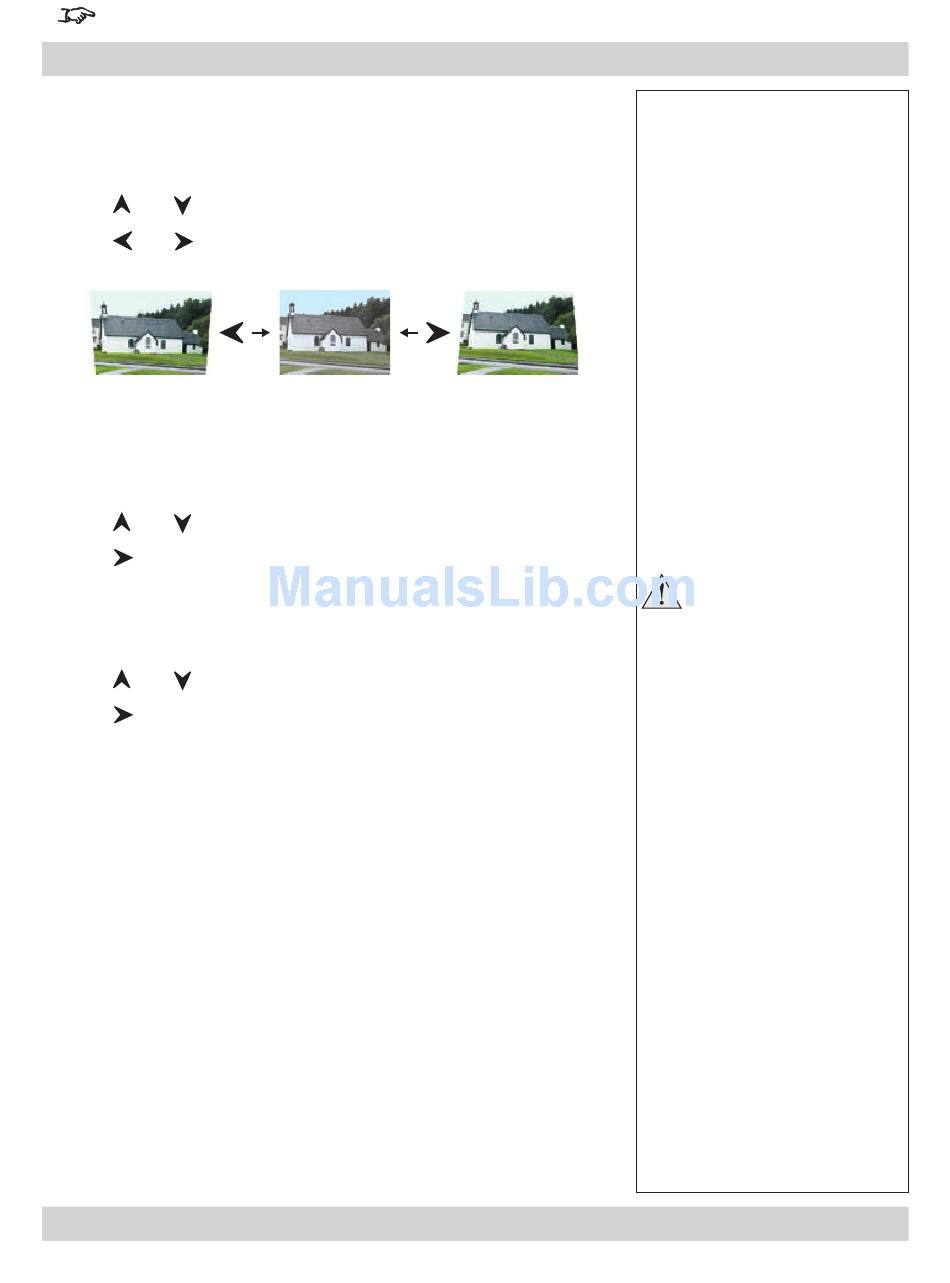

Keystone

Used to correct for distortion caused by the projector being mounted higher or lower
than the screen.
• Press and to select Keystone.
Press and to adjust the slider (-128 to +127).

Lens Calibration

Calibrate Focus

• Press and to select Calibrate Focus.
Press .
The focus mechanism will operate for about a minute, whilst the minimum and
maximum travel distances are determined.

Calibrate Zoom

• Press and to select Calibrate Zoom.
Press .
The zoom mechanism will operate for about a minute, whilst the minimum and
maximum travel distances are determined.
Rev A August 2009 Rev A August 2009
User Manual User Manual
Each time a new lens is
fitted to the projector, the
calibration procedure must
be carried out.
4. Controlling the projector 4. Controlling the projector
Notes
Page 4.35 Page 4.35
