7. Appendix

Control connections

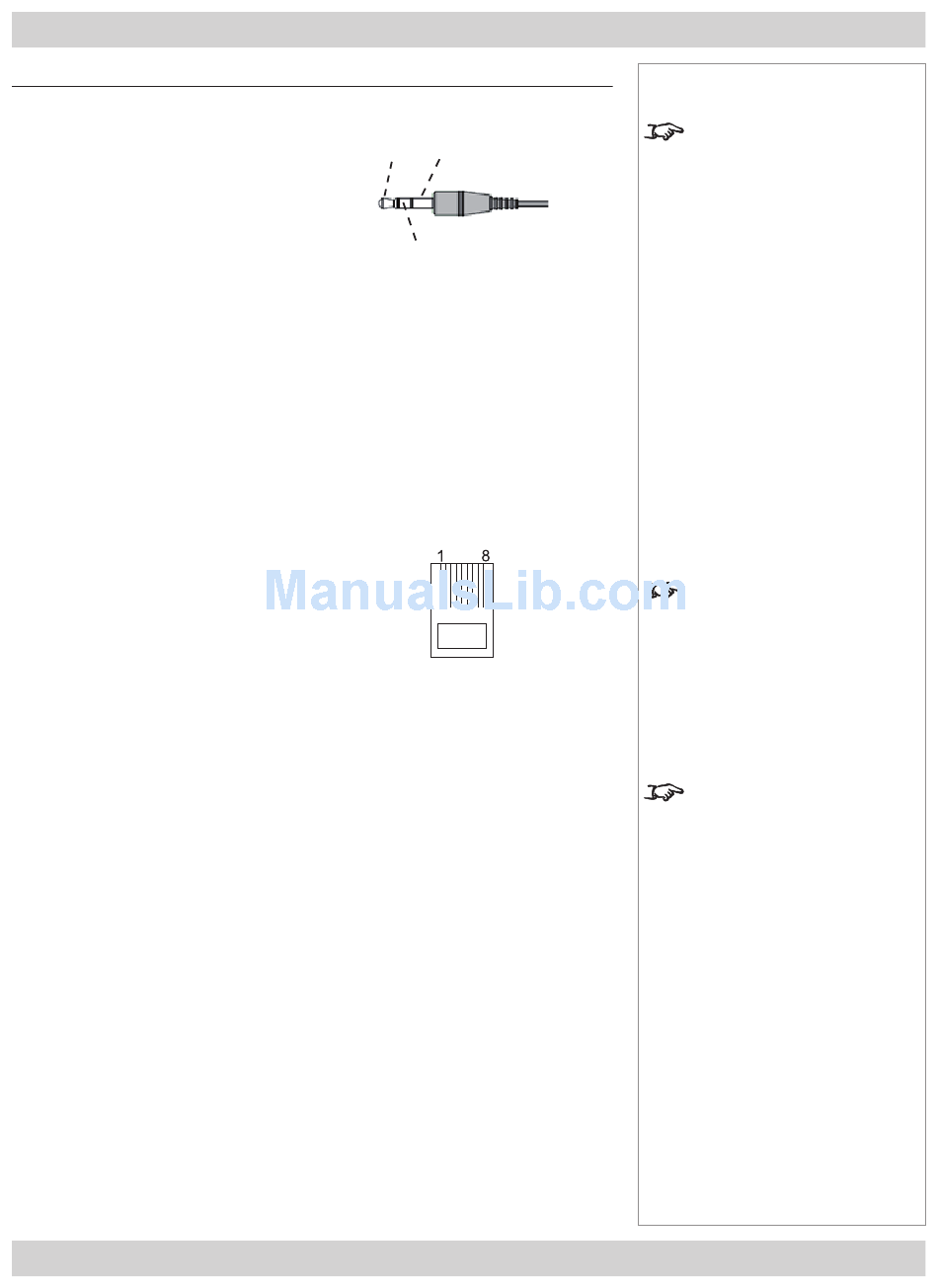

Wired Remote control connection

3.5mm mini jack
Tip Power
Ring Signal
Sleeve Ground

LAN connection

TCP Port number
10001
Wireless
802.11b/g
10BaseT Unshielded Twisted Pair cable
The standard wire colours as as follows:
1 White / Orange stripe
2 Orange
3 White / Green stripe
4 Blue
5 White / Blue stripe
6 Green
7 White / Brown stripe
8 Brown

Crossed cable

(used to connect directly to a computer with no hub or network.)
(Note that only the green and orange pairs are crossed)
1 White / Orange stripe
2 Orange
3 White / Green stripe
4 Blue
5 White / Blue stripe
6 Green
7 White / Brown stripe
8 Brown
Page 7.14
Digital Projection
Tip
Sleeve
Ring
top view of cable connector
(clip is underneath)
White / Green stripe
Green
White / Orange stripe
Blue
White / Blue stripe
Orange
White / Brown stripe
Brown

TITAN sx+ 3D, Dual 3D, Ultra Contrast

1
2
3
4
5
6
7
8
User Manual
Notes
Note that plugging in the remote
control cable will disable the
infra-red.
Use:
• a straight cable to connect to a
hub or network, or
• a crossed cable as shown here
to connect ONLY to a computer
directly.
Only one remote connection
(RS232, LAN or Wireless LAN)
should be used at any one time.
Rev A August 2009
