Geometry menu continued

User Horizontal Aspect Ratio

• Press and to select User H Aspect.
Press and to adjust the slider (internal number – adjust to fit).

User Vertical Aspect Ratio

• Press and to select User V Aspect.
Press and to adjust the slider (internal number – adjust to fit).

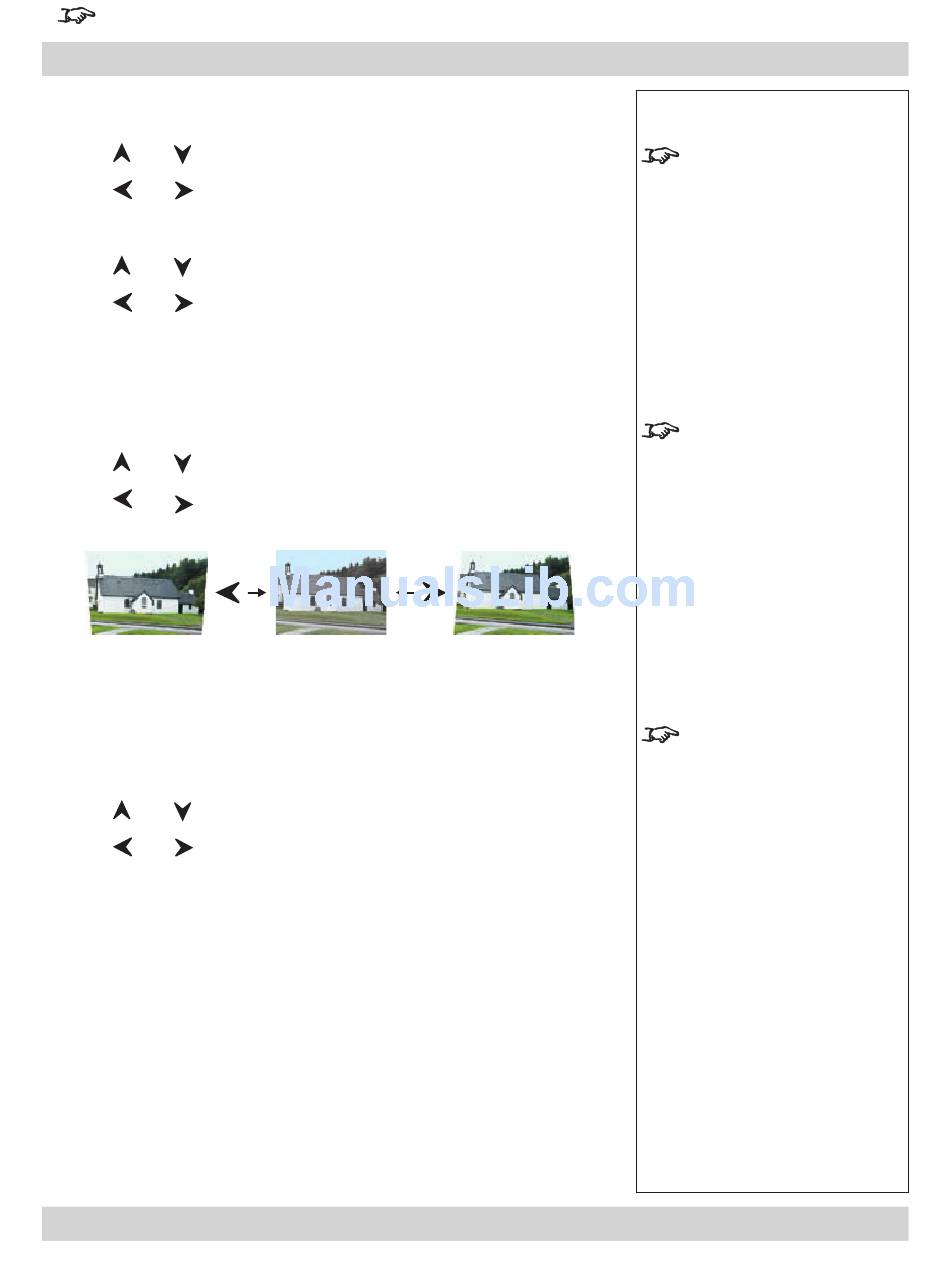

Keystone

Used to correct for distortion caused by the projector being mounted higher or lower
than the screen.
• Press and to select Keystone.
Press and to adjust the slider (-128 to +127).

Phase

Phase should be set automatically by the projector, but can be adjusted manually to
correct for shimmering or poor quality definition on, for example, fine text.
• Press and to select Phase.
Press and to adjust the slider (0 to 32).
Rev A August 2009 Rev A August 2009
User Manual User Manual
Horizontal and Vertical
Aspect Ratio adjustments are
available only when User is
selected in Aspect Ratio, (see
previous page).
Keystone adjustment can be
found in both the Geometry and
Projector Setup menus.
Phase adjustment can be
found in both the Picture and
Geometry menus, and is
available for graphics based
RGB sources only.
