3. DVI-D Single input

24 way D-type connector
1 TMDS Data 2-
2 TMDS Data 2+
3 TMDS Data 2 Shield
4 unused
5 unused
6 DDC Clock
7 DDC Data
8 unused
9 TMDS Data 1-
10 TMDS Data 1+
11 TMDS Data 1 Shield
12 unused
13 unused
14 +5 V Power
15 Ground
16 Hot Plug Detect*
17 TMDS Data 0-
18 TMDS Data 0+
19 TMDS Data 0+
20 TMDS Data 0 Shield
21 unused
22 unused
23 TMDS Clock Shield
24 TMDS Clock+
* Hot plug detect (HPD) is fully DVI compliant. DVI sources detect the presence
of a display device by providing +5V on pin 14 and looking for +5V on pin 16.
Whenever the projector is operational, and 5V is present on pin 14, pin 16 will be
held at +5V.
EDID is available even when the projector is switched off.
Operational means that the projector is powered up. Non operational states are
powered down and some self test and reprogramming modes.
High Definition Content Protection (HDCP) is supported on this input.
Rev A August 2009
User Manual

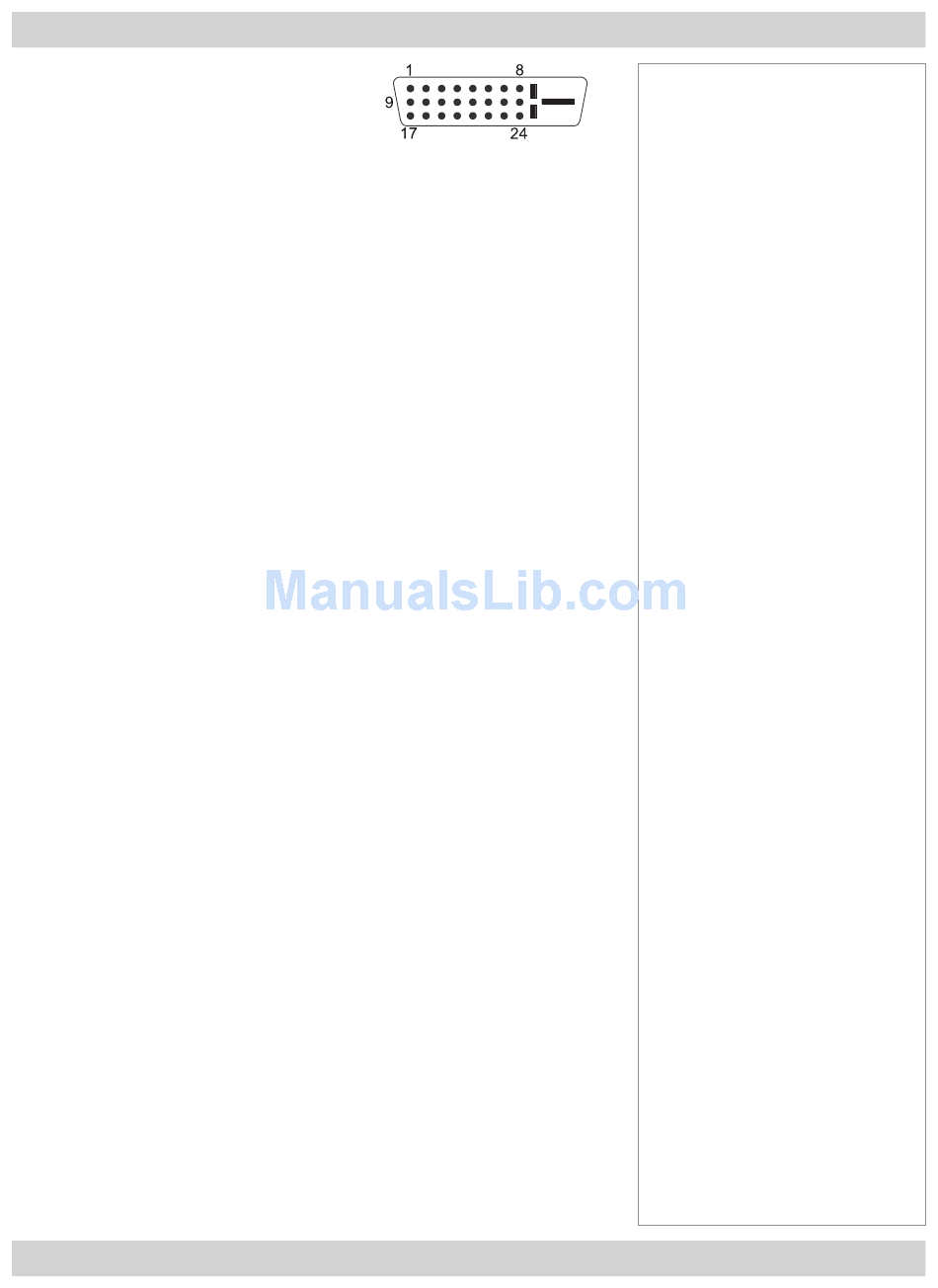

pin view of female connector
7. Appendix
Notes
Page 7.11
