For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4.
Digital Projection Digital Projection
TITAN sx+ 3D, Dual 3D, Ultra Contrast TITAN sx+ 3D, Dual 3D, Ultra Contrast

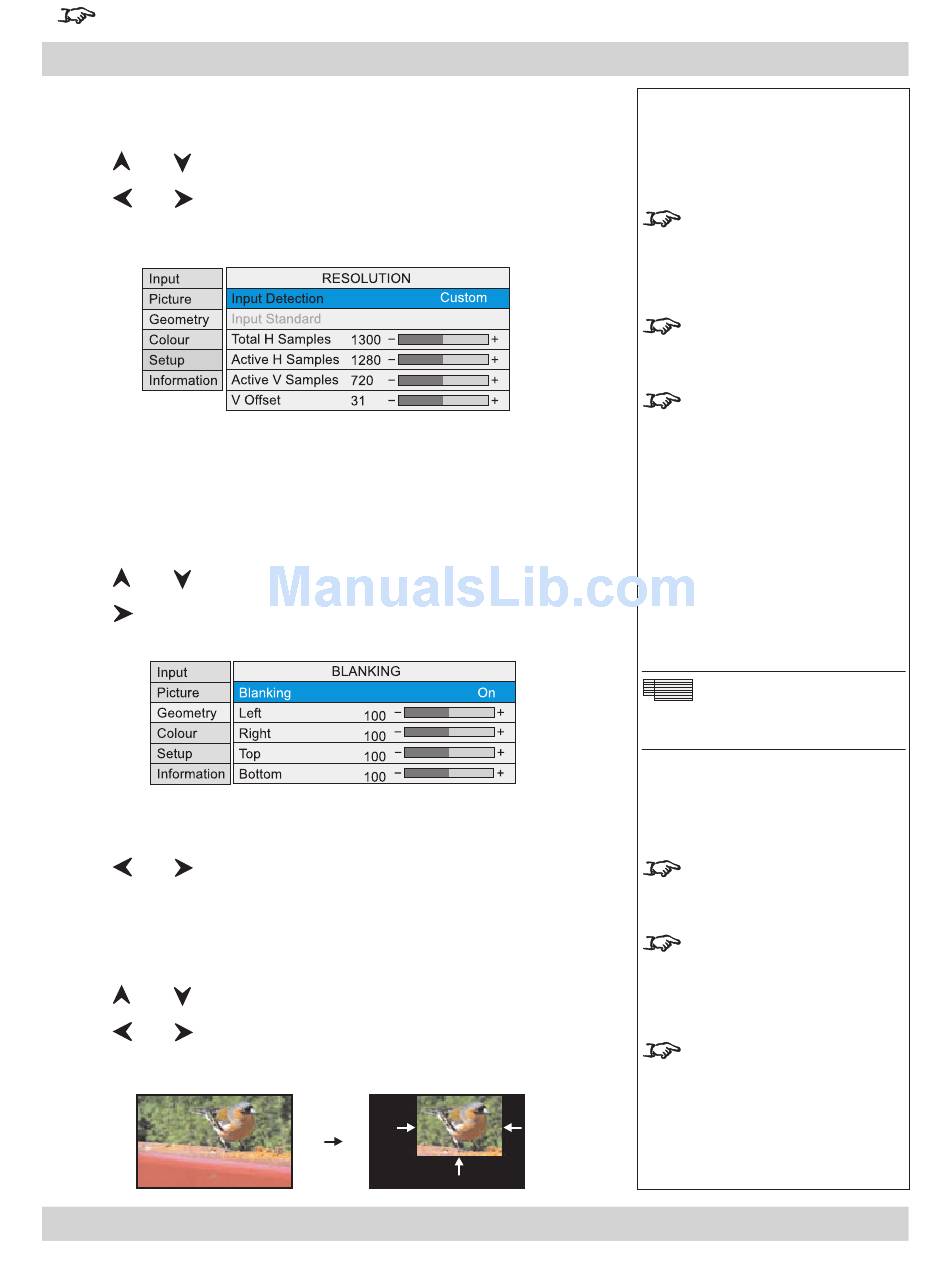

Geometry menu continued
When Input Detection is set to Custom:
• Press and to select one of the adjustment sliders.
Press and to adjust the slider to match the resolution of the incoming
video signal.

Blanking

Blanking curtains can be applied to each edge of the picture.
• Press and to select Blanking.
Press to open the Blanking submenu.

Blanking On/Off

• Press and to select from:
On
Off

Blanking adjust

• Press and to select the edge to be Blanked.
Press and to adjust the slider (0 to 200).
Rev A August 2009 Rev A August 2009
User Manual User Manual
The adjustment sliders are
available only if Input Detection
is set to Custom.
Total H Samples is available
for RGB1 and RGB2 inputs
only.
V Offset is available for DVI
input only.
Geometry Menu

Blanking

The blanking curtains will not
applied until Blanking is turned
On.
The On Screen Display will
move to the centre of the DMD
when Blanking is turned On.
Set to zero for no blanking, eg
the top edge in this example.
4. Controlling the projector 4. Controlling the projector
Notes
