7. Appendix

Input connections

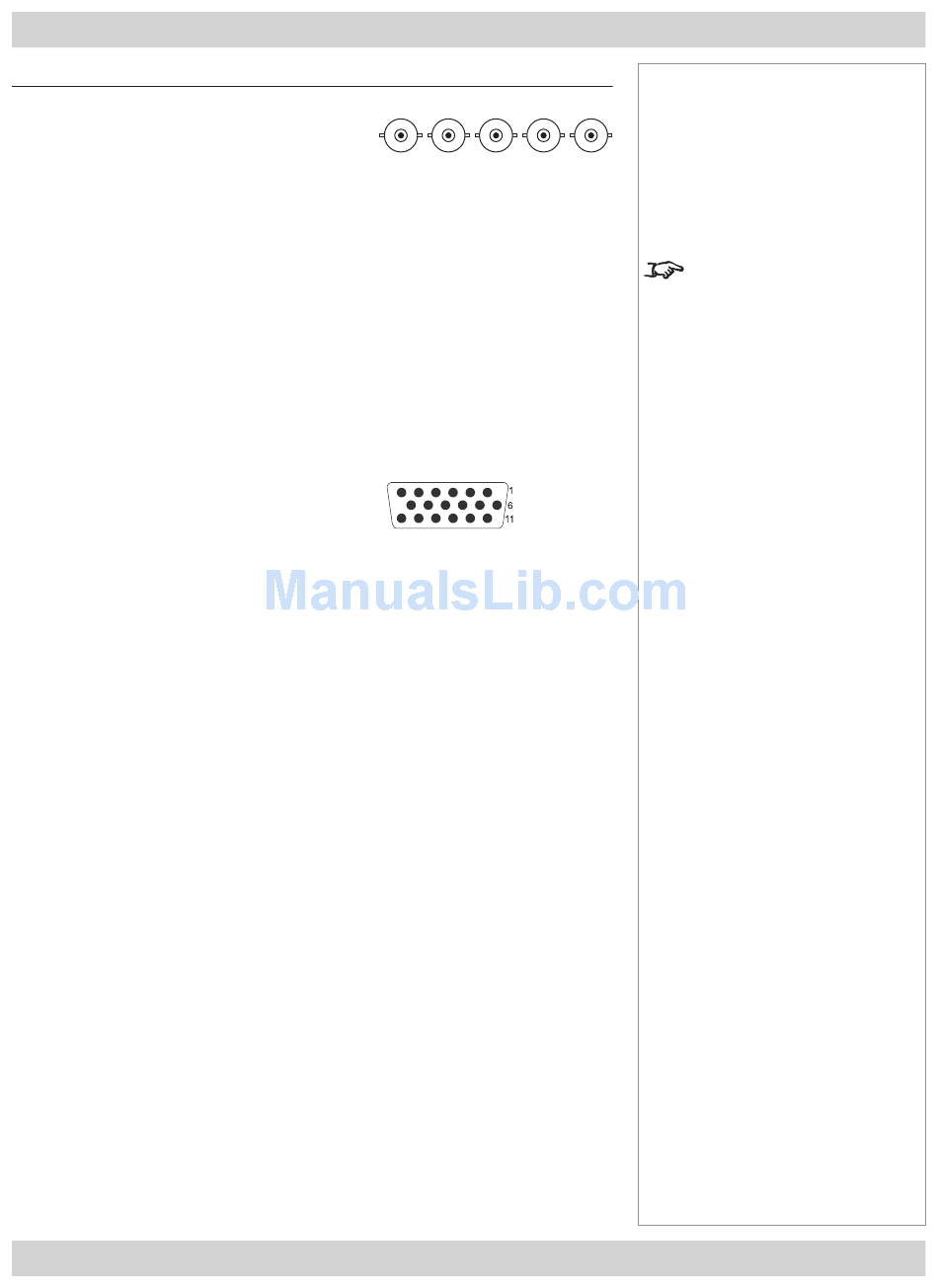

1. RGB1 input

5 x 75 ohm BNC
Used for computer, progressive video and analog HD video.
RGsB RGBS
R R
G + Sync G
B B
Sync

2. RGB2 input

15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5v
10 Digital Ground (V Sync/DDC)
11 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
Page 7.10
Digital Projection
RGBHV YPrPb
R Pr/Cr
G Y
B Pb/Cb
H Sync
V Sync
pin view of female connector
TITAN sx+ 3D, Dual 3D, Ultra Contrast
User Manual
Notes
To select the sync format for
RGB signals, see Setup Menu,
in 4.Controlling the Projector.
Rev A August 2009
