3D Sync; Serial Control Input; Serial Port Settings - Digital Projection TITAN sx+ 3D Dual 3D Ultra Contrast User Manual

Digital Projection
TITAN sx+ 3D, Dual 3D, Ultra Contrast

3D sync

1 unused
2 Sync OUT
3 GND
4 GND
5 GND
6 unused
7 unused
8 unused
9 Sync IN

Serial control input

1 unused
2 Received Data (RX)
3 Transmitted Data (TX)
4 unused
5 Signal Ground
6 unused
7 unused
8 unused
9 unused
Null-modem cable
(used to connect the projector to a computer)
RX 2 --- 3
TX 3 --- 2
GND 5 --- 5

Serial port settings

• Baud rate 19,200 bps
• Data length 8 bits
• Stop bits one
• Parity none
• Flow control none
Rev A August 2009

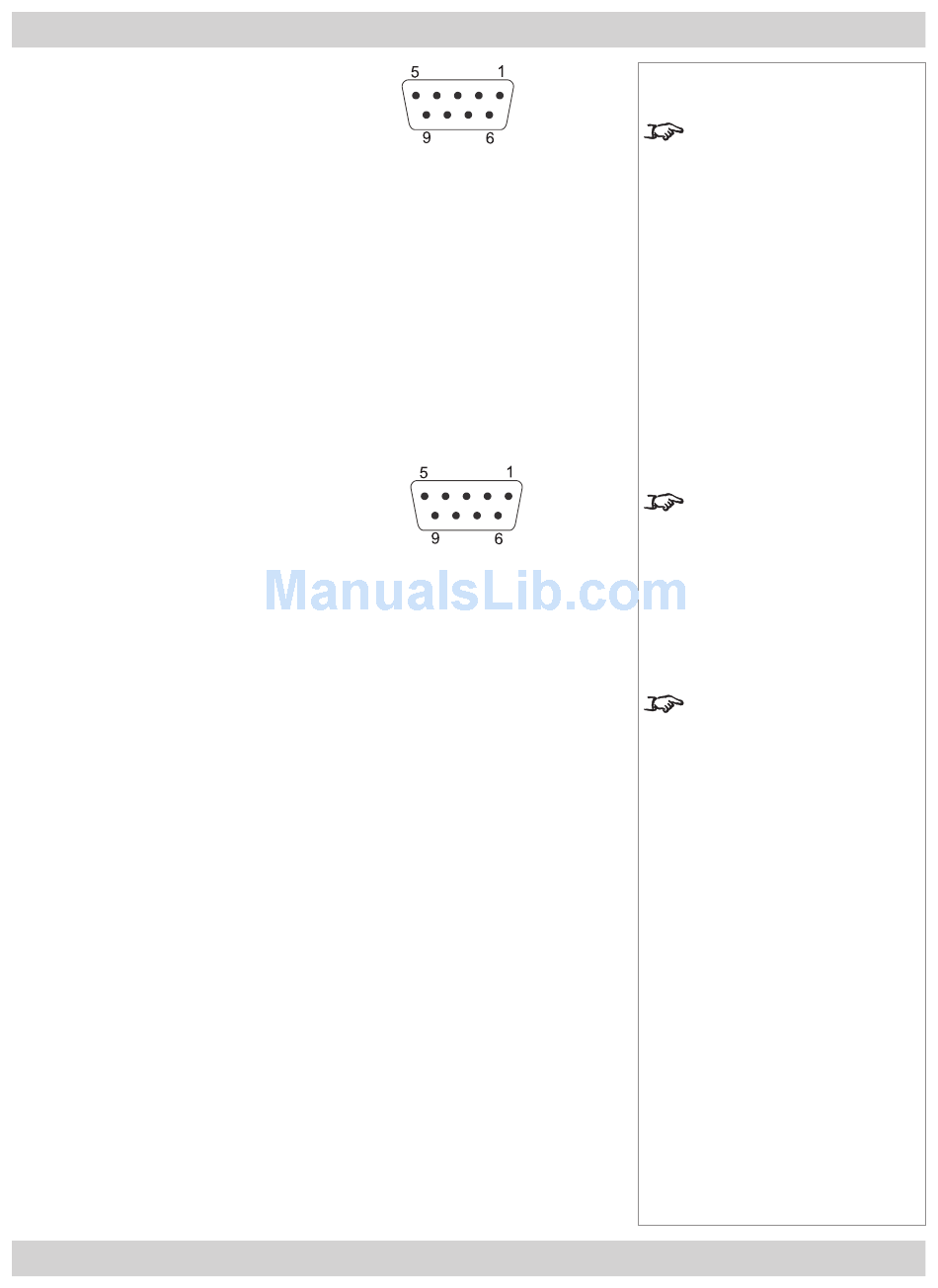

pin view of female connector
pin view of female connector
TX
RX
GND
User Manual
•
•
7. Appendix
Notes
3D Sync OUT is switched
between 0V and 3.3V
The projector is a DTE, so use:
a straight cable to connect to a
modem, or
a null-modem cable as shown
here to connect to another DTE
such as a computer.
Only one remote connection
(RS232, LAN or Wireless LAN)
should be used at any one time.
Page 7.15
