2. Installation

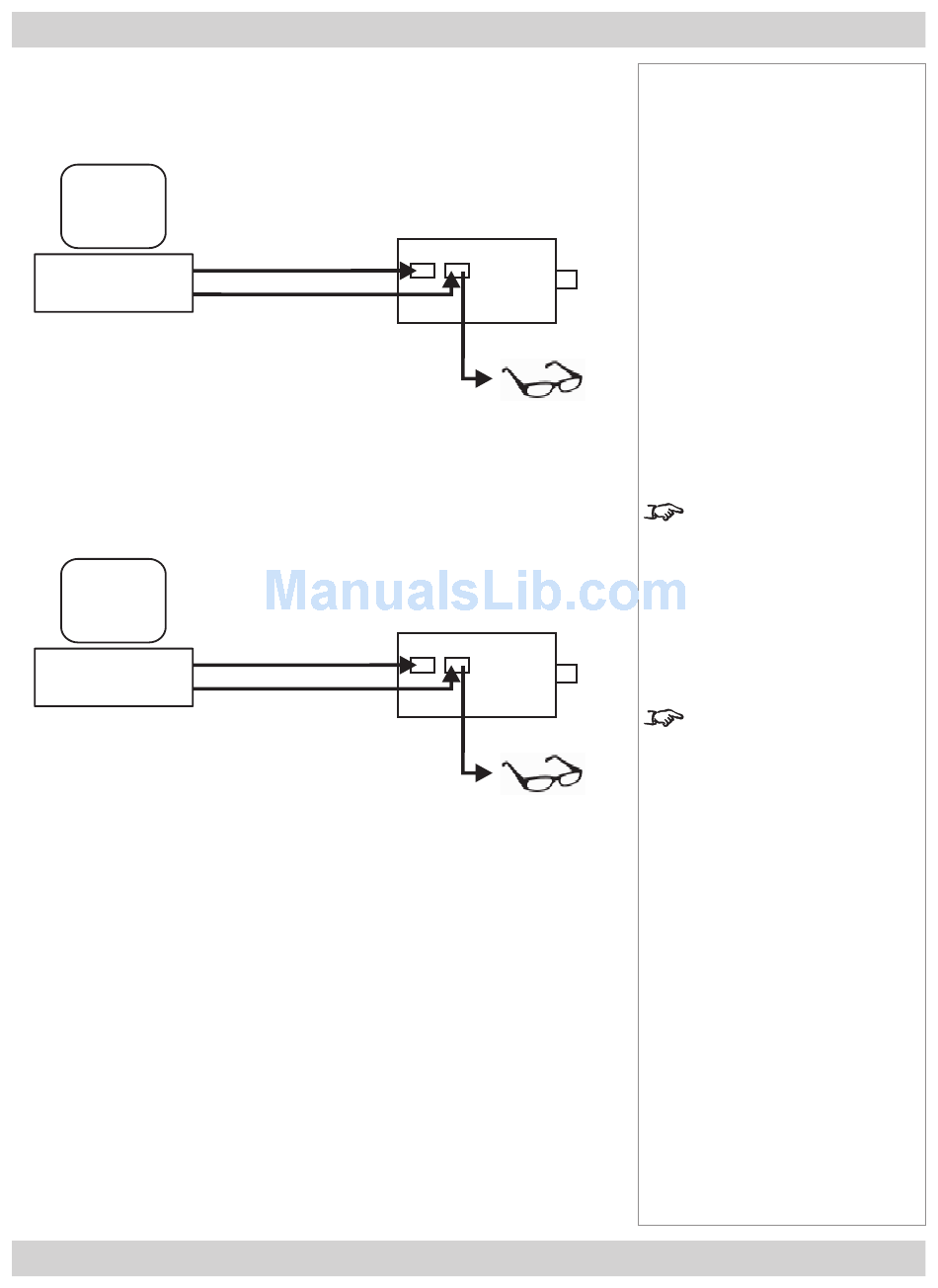

3D connection examples
3D sources up to 60Hz, requiring frame doubling and left/right
interleaving
3D server
3D sources up to 120Hz, not requiring frame doubling
3D server
Page 2.18
Digital Projection
Video
Inputs 1-7
Sync in
Sync
Video
Input 8
Sync in
Sync
TITAN sx+ 3D, Dual 3D, Ultra Contrast
Projector
Sync
out
Z screen or
3D glasses
Projector
Sync
out
Z screen or
3D glasses
User Manual
Notes
There is no scaler on input 8.
Images up to and including the
native resolution of the display
will be displayed pixel for pixel
and centred.
This enables the projector to
maximise the image bandwidth
and greyscale resolution.
There is also no OSD display
when input 8 is selected.
