DVI Input connection examples
Single DVI video source
Single or Dual DVI video source
Twin DVI video source

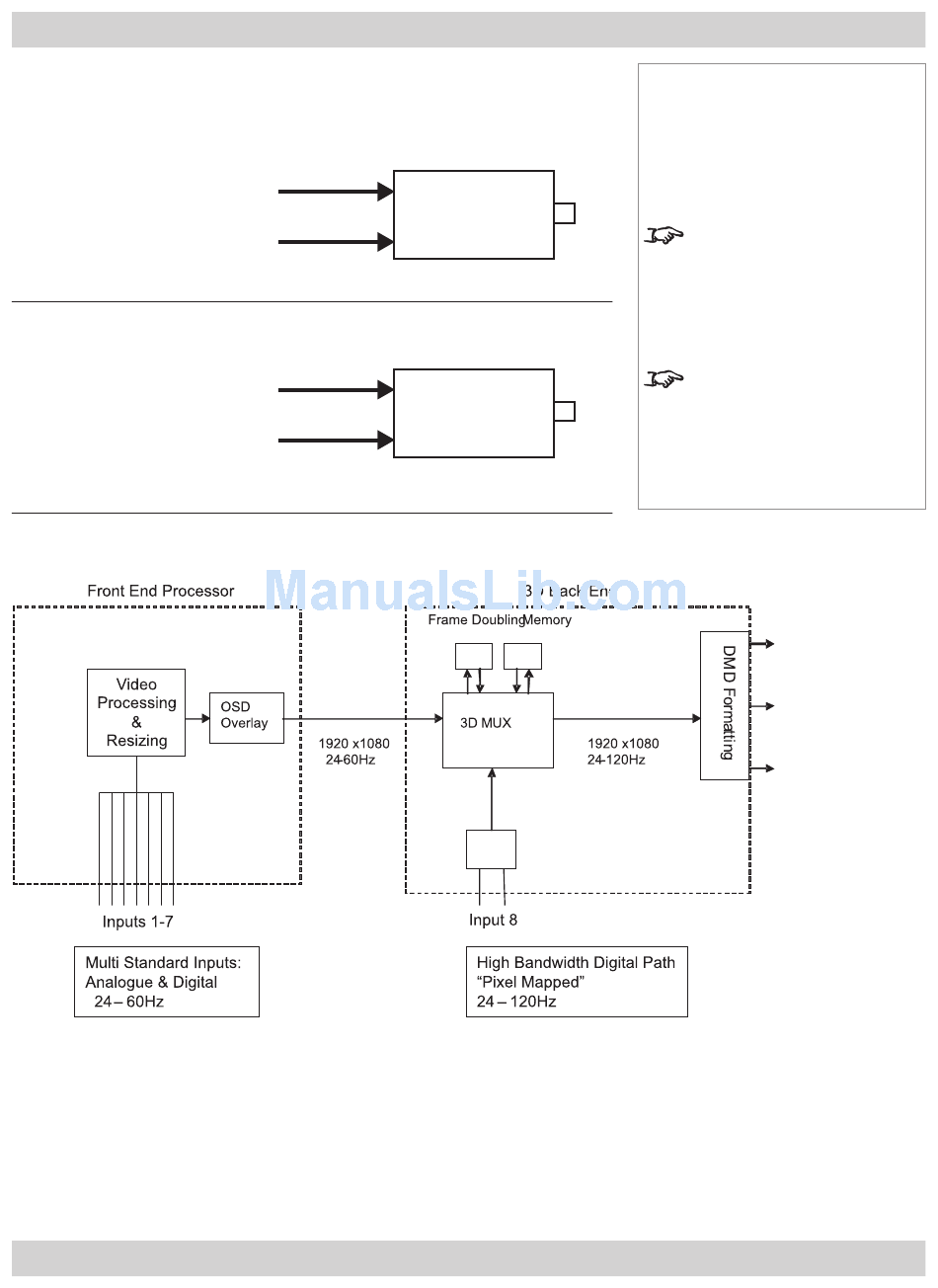

Input and processing architecture
EDID handshaking on the DVI and rGB2 inputs
If you are using a computer DVI card or other source that obeys the EDID
handshaking protocol, then the card or source will automatically configure itself to
suit the projector.
If not, then you should refer to the documentation supplied with the source to
manually set the resolution to 1400 x 1050 or the nearest suitable setting. Switch off
the source, connect to the projector, then switch the source back on again.
Rev A August 2009
User Manual
Projector
Input 3
Input 8 MAIN
Projector
Input 8 MAIN
Input 8 SUB
2. Installation
Notes
Dual DVI:
high bandwidth/frame rate
Twin DVI:
increased bit depth/extended
greyscale
Page 2.17
