2. Installation

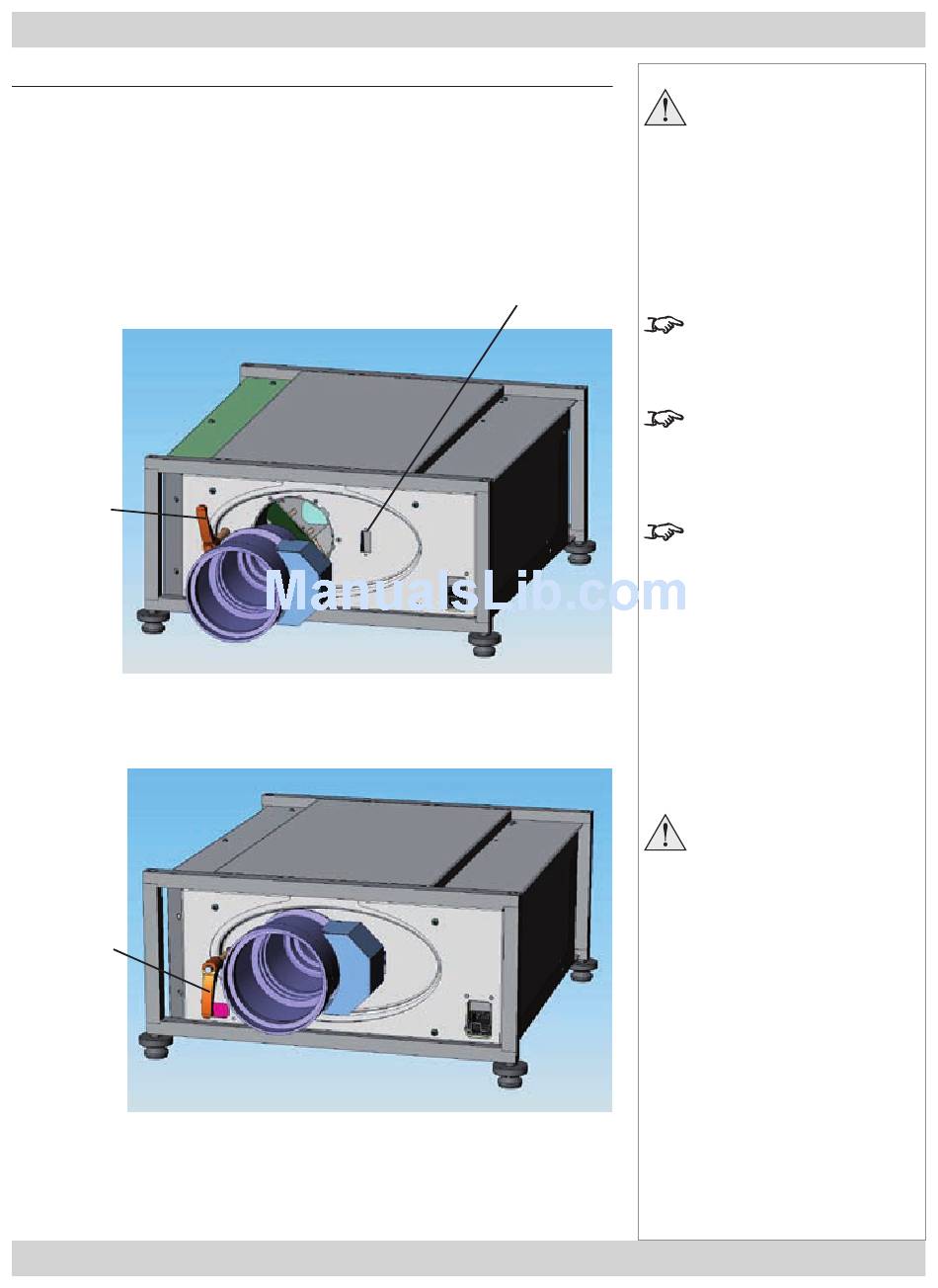

Fitting the lens

• Turn the lens release lever anti-clockwise so that it is pointing upwards, to open
the lock.
• Remove the rear lens cap from the lens.
• Insert the lens into the lens aperture, making sure that the plug on the drive
mechanism engages with the socket on the front of the projector, and that the
lens is pushed firmly into place.
Lens release
lever, open
Turn the lens release lever clockwise to lock the lens in place. When the lock is
•
fully closed, the lever should feel loose.
Lens release
lever, locked
Page 2.10
Digital Projection
TITAN sx+ 3D, Dual 3D, Ultra Contrast
Zoom drive connector
User Manual
Notes
Each time a new lens is
fitted to the projector,
the calibration procedure
must be carried out. See
Setup menu, in Section 4.
Controlling the projector.
Make sure the rear lens cap is
removed, before fitting the lens.
Make sure the front lens cap is
removed, before switching on
the projector.
Be careful not to scratch
the lens surfaces. If you do
accidentally touch a lens, then
clean the surface using a lens
paper.
The lens release lever should
always be set to the locked
position to prevent the lens
from falling out.
Rev A August 2009
