Shifting the image

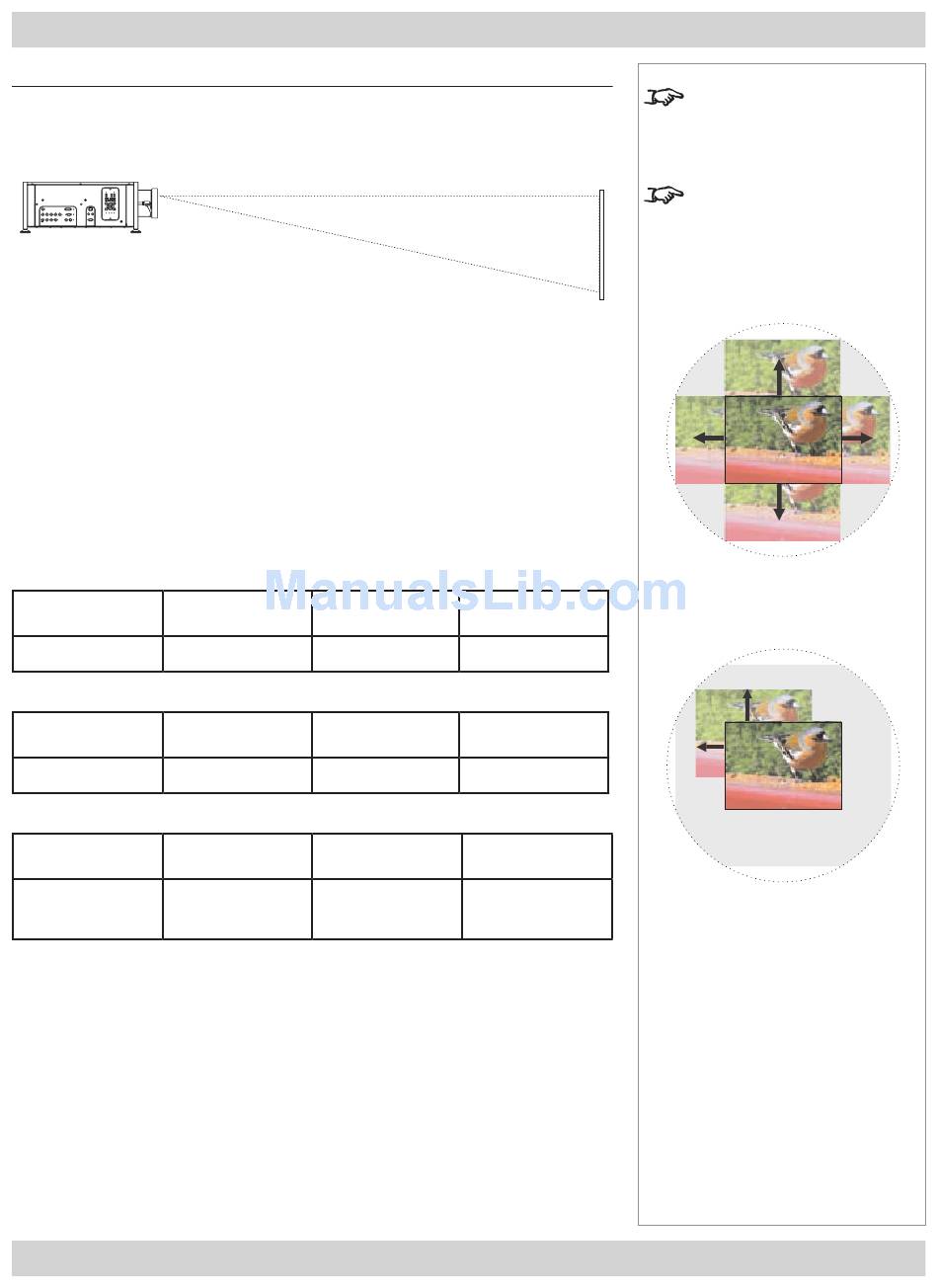

The normal position for the projector is at the centre of the screen. However, you
can set the projector above or below the centre, or to one side, and adjust the image
using the Lens shift feature to maintain a geometrically correct image.
• Any single adjustment outside the ranges specified below may result in an
unacceptable level of distortion, paricularly at the corners of the image, due to
the image passing through the periphery of the lens optics.
• If the lens is to be shifted in two directions combined, the maximum range
without distortion will be somewhat less, as can be seen in the diagrams to the
right.
The maximum range available with no distortion is dependent on which lens is used.
The tables below show the maximum range for images that fill the DMD. For images
which do not use the full height or width, extra shift will be possible, up to the limit of
the lens mount movement.
0.73 : 1 fixed lens
vertical
(pixels)
± 115 ± 98
1.26 - 1.61 : 1 zoom lens
vertical
(pixels)
± 380 ± 280
1.21 : 1 fixed lenses and all other zoom lenses
vertical
(pixels)
+ 525 ± 280
- 420
It is physically possible to shift the lens further than this, however there will be some
vignetting of the image beyond the ranges specified above.
Rev A August 2009
horizontal vertical
(pixels) (vs DMD height)
± 0.11H
horizontal vertical
(pixels) (vs DMD height)
± 0.36H
horizontal vertical
(pixels) (vs DMD height)
+ 0.5H
- 0.4H
User Manual
horizontal
(vs DMD width)
± 0.07W
horizontal
(vs DMD width)
± 0.2W
horizontal
(vs DMD width)
± 0.2W
2. Installation
Notes
For more information on using
the Lens shift feature, see
section 4. Using the menus,
Using the control keys.
If the lens is to be shifted in
two directions combined, the
maximum range is somewhat
less, as can be seen below.
(zoom lens shift shown).
full horizontal or vertical shift
without distortion
combined shift
is reduced
