Transfer Removal and Installation

Removal

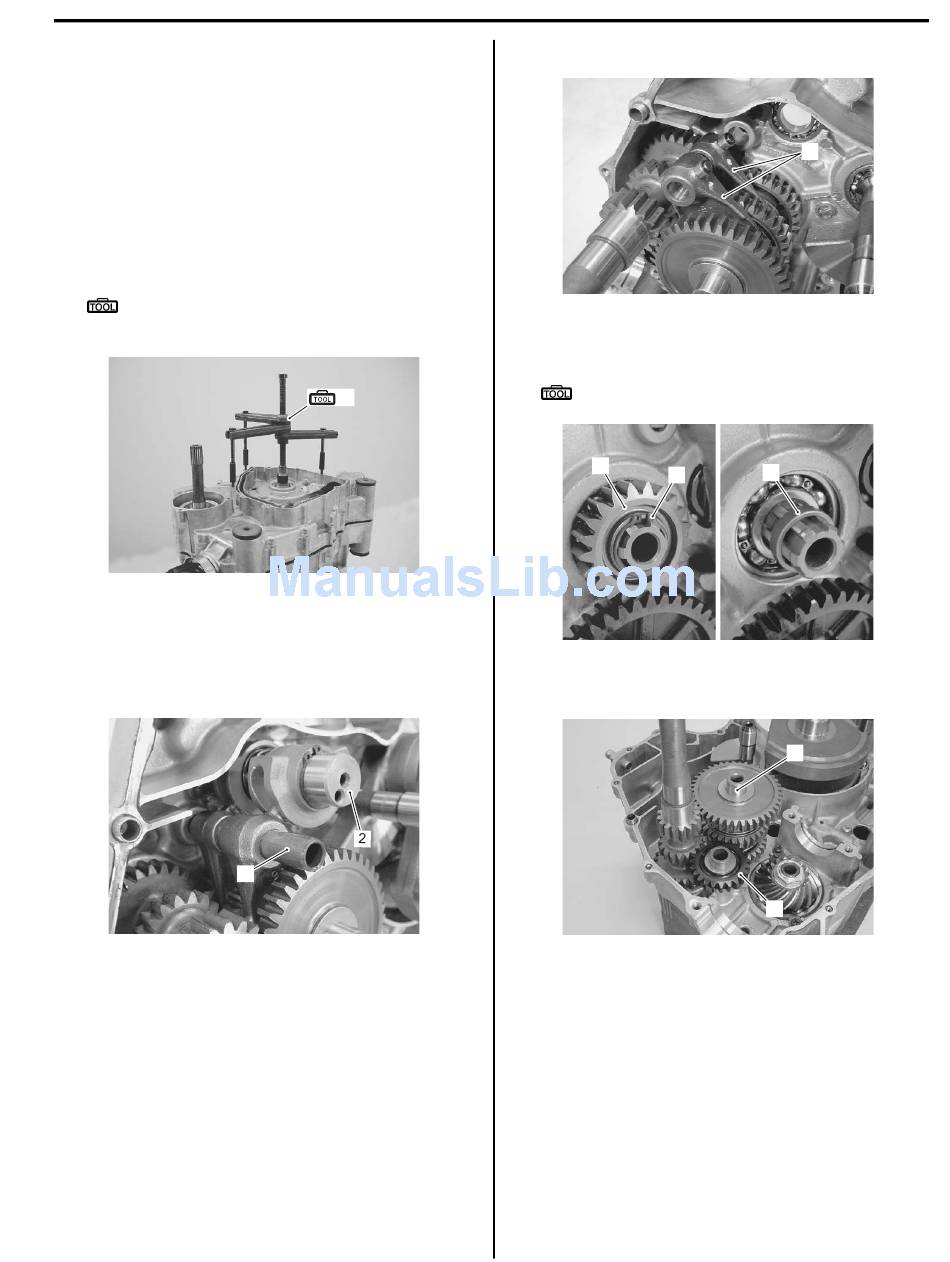

1) Remove the engine assembly from the frame. Refer
to "Engine Assembly Removal in Section 1D
(Page 1D-13)".
2) Disassemble the engine top side. Refer to "Engine
Top Side Disassembly in Section 1D (Page 1D-17)".
3) Separate the crank case with the special tool. Refer
to "Engine Bottom Side Disassembly in Section 1D
(Page 1D-45)".
Special tool
(A): 09920–13120 (Crankcase separating
tool)
4) Remove the torque limiter and starter idle gear No.
2. Refer to "Starter Torque Limiter / Starter Clutch
Removal and Installation in Section 1I (Page 1I-10)".
5) Remove the gearshift fork shaft (1) and gearshift
cam (2).
B831G23306002
(A)
I831G1330006-03
1
I831G1330007-01
6) Remove the gearshift forks (3).
7) Remove the snap ring (4), drive gear No. 2 (5) and
spacer (6).
Special tool
: 09900–06107 (Snap ring pliers)
5
4
8) Remove the counter shaft assembly (7), reverse idle
gear (8) with shaft.
Transfer: 3C-3
