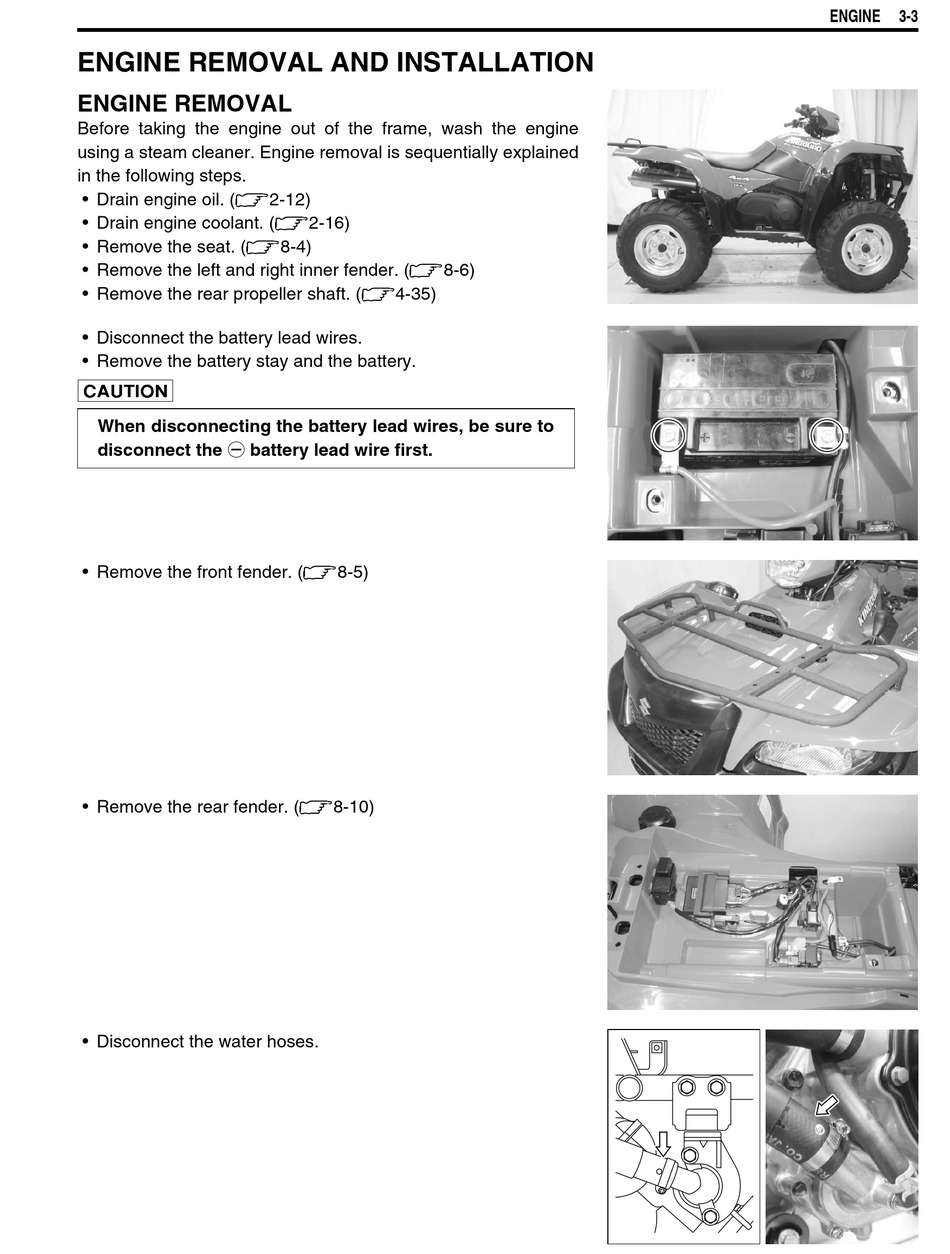

ENGINE REMOVAL AND INSTALLATION

ENGINE REMOVAL

Before taking the engine out of the frame, wash the engine
using a steam cleaner. Engine removal is sequentially explained
in the following steps.
• Drain engine oil. ($2-12)
• Drain engine coolant. ($2-16)
• Remove the seat. ($8-4)
• Remove the left and right inner fender. ($8-6)
• Remove the rear propeller shaft. ($4-35)
• Disconnect the battery lead wires.
• Remove the battery stay and the battery.
#
When disconnecting the battery lead wires, be sure to
disconnect the - battery lead wire first.
• Remove the front fender. ($8-5)
• Remove the rear fender. ($8-10)
• Disconnect the water hoses.
ENGINE 3-3
