SETTING A FREQUENCY

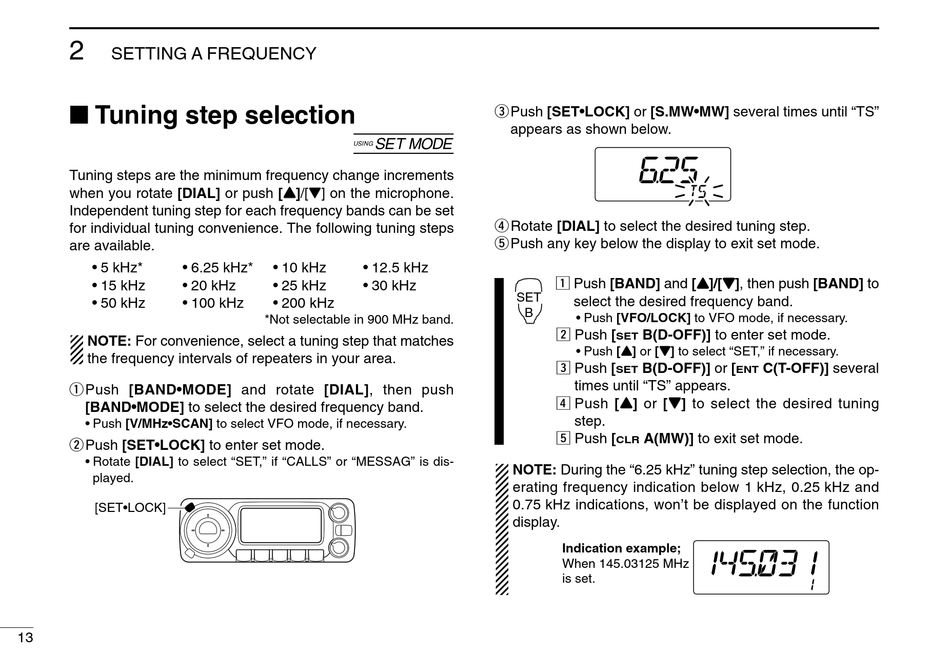

I Tuning step selection

Tuning steps are the minimum frequency change increments
when you rotate [DIAL] or push [Y Y ]/[Z] on the microphone.
Independent tuning step for each frequency bands can be set
for individual tuning convenience. The following tuning steps
are available.
• 5 kHz* • 6.25 kHz*
• 15 kHz • 20 kHz
• 50 kHz • 100 kHz
NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.
qPush [BAND•MODE] and rotate [DIAL], then push
[BAND•MODE] to select the desired frequency band.
• Push [V/MHz•SCAN] to select VFO mode, if necessary.
w Push [SET•LOCK] to enter set mode.
• Rotate [DIAL] to select "SET," if "CALLS" or "MESSAG" is dis-
played.
[SET•LOCK]
13
[
• 10 kHz • 12.5 kHz
• 25 kHz • 30 kHz
• 200 kHz
*Not selectable in 900 MHz band.
ePush [SET•LOCK] or [S.MW•MW] several times until "TS"
appears as shown below.
r Rotate [DIAL] to select the desired tuning step.
tPush any key below the display to exit set mode.
z Push [BAND] and [Y Y ]/[Z Z ], then push [BAND] to
SET
select the desired frequency band.
B
• Push [VFO/LOCK] to VFO mode, if necessary.
x Push [
B(D-OFF)] to enter set mode.
SET
• Push [Y Y ] or [Z Z ] to select "SET," if necessary.
c Push [
B(D-OFF)] or [
SET
times until "TS" appears.
v Push [Y Y ] or [Z Z ] to select the desired tuning
step.
b Push [
A(MW)] to exit set mode.
CLR
NOTE: During the "6.25 kHz" tuning step selection, the op-
erating frequency indication below 1 kHz, 0.25 kHz and
0.75 kHz indications, won't be displayed on the function
display.
Indication example;
When 145.03125 MHz
is set.
C(T-OFF)] several
ENT
