CAUTION:
You have only seven minutes to perform the replacement procedure! Both power supplies must be
installed for the enclosure to cool properly. If a power supply fails, leave it in place in the enclosure
until a new power supply is available to install. The enclosure could shut down due to overheating
unless the power supply is replaced within seven minutes of removal of the failed/failing power supply.
Parts can be damaged by electrostatic discharge. Use proper anti-static protection. See the
documentation that shipped with your system for additional information.
• If cabling is obstructing access to the power supply/blower, carefully move the cables out of the
way to avoid loosening any connections.

Verifying component failure

CAUTION:
If HP Command View EVA does not present a status consistent with the power supply/blower status
indicator, or if HP Command View EVA or your system monitoring tool indicates multiple hardware
failures, contact HP support for assistance (http://www.hp.com/support).
The power supply and blower are separately replaceable components. Before replacing a power
supply or blower, use the following methods to verify the component failure:
• Analyze any failure messages you may have received from system monitoring (System Event
Analyzer).
• Check status using HP Command View EVA:
1. In the Navigation pane, select Storage system > Hardware > Rack > Disk enclosure.
2. In the Content pane, select the Power tab or the Cooling tab and then the appropriate
component (1 or 2). The Operational state should be
3. To help identify the correct enclosure, click Locate > Locate On to flash the status indicators
on the front of the disk enclosure.
• Check the power supply/blower status indicator. See

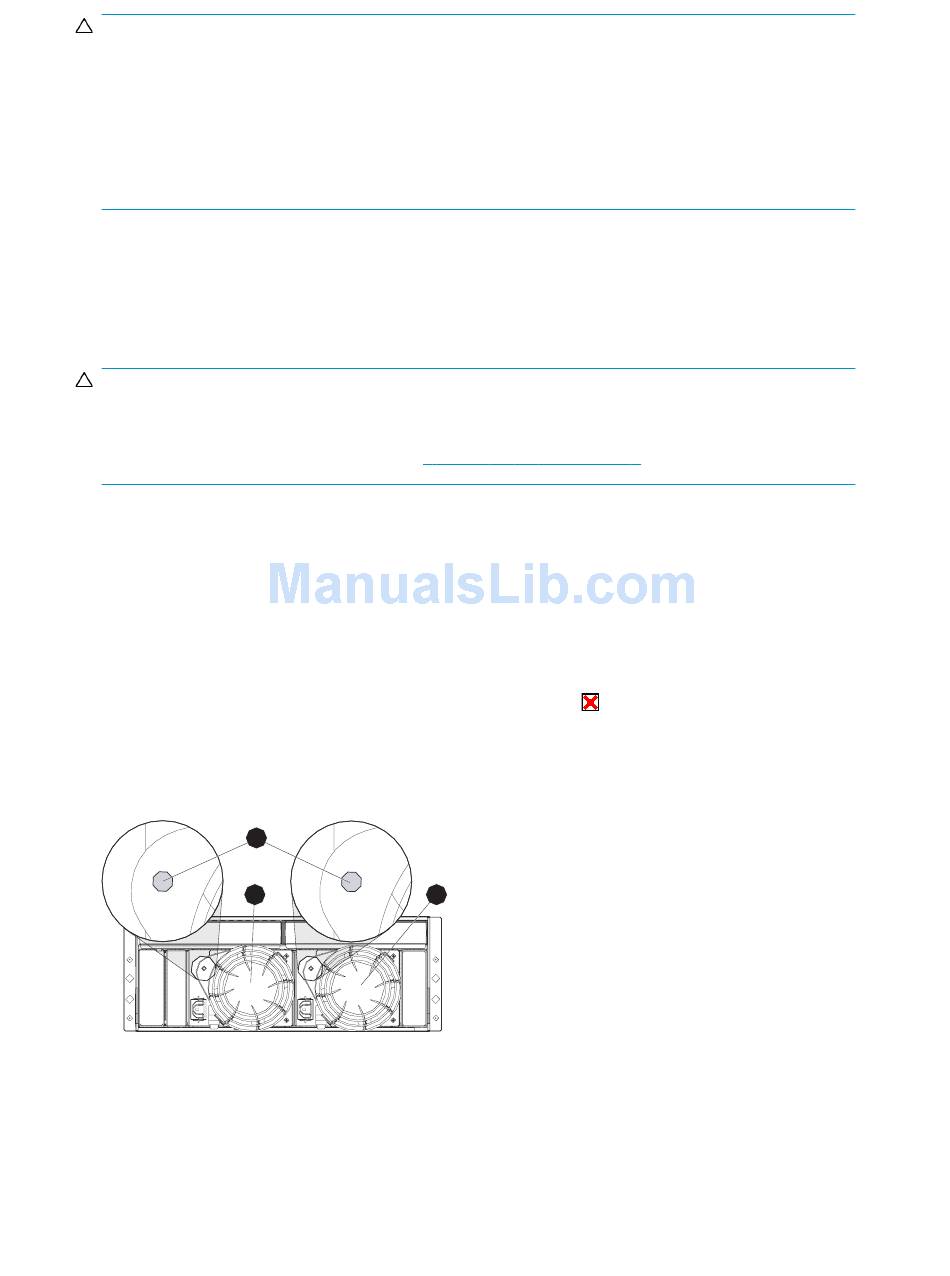

Figure 57 Power supply/blower status indicator
1. Status indicator
3. Power supply/blower 2
1
2
HP StorageWorks 4x00/6x00/8x00 Enterprise Virtual Array user guide
Failed.
Figure 57. It should be off.
3
2. Power supply/blower 1
123
