NOTE:
When downloading the firmware, make sure you use the disk model number to locate the
correct firmware file. If you have difficulty locating the correct firmware, contact your
HP-authorized service representative for assistance. If you are running XCS 6.000, verify that
leveling is not in progress before upgrading the disk drive firmware. In HP Command View
EVA, go to the General tab of the Disk Group Properties window and verify that the Leveling
field displays Inactive. If it displays Active, wait for leveling to complete before performing the
upgrade. This does not apply if you are running XCS 6.100 or later.
2
1

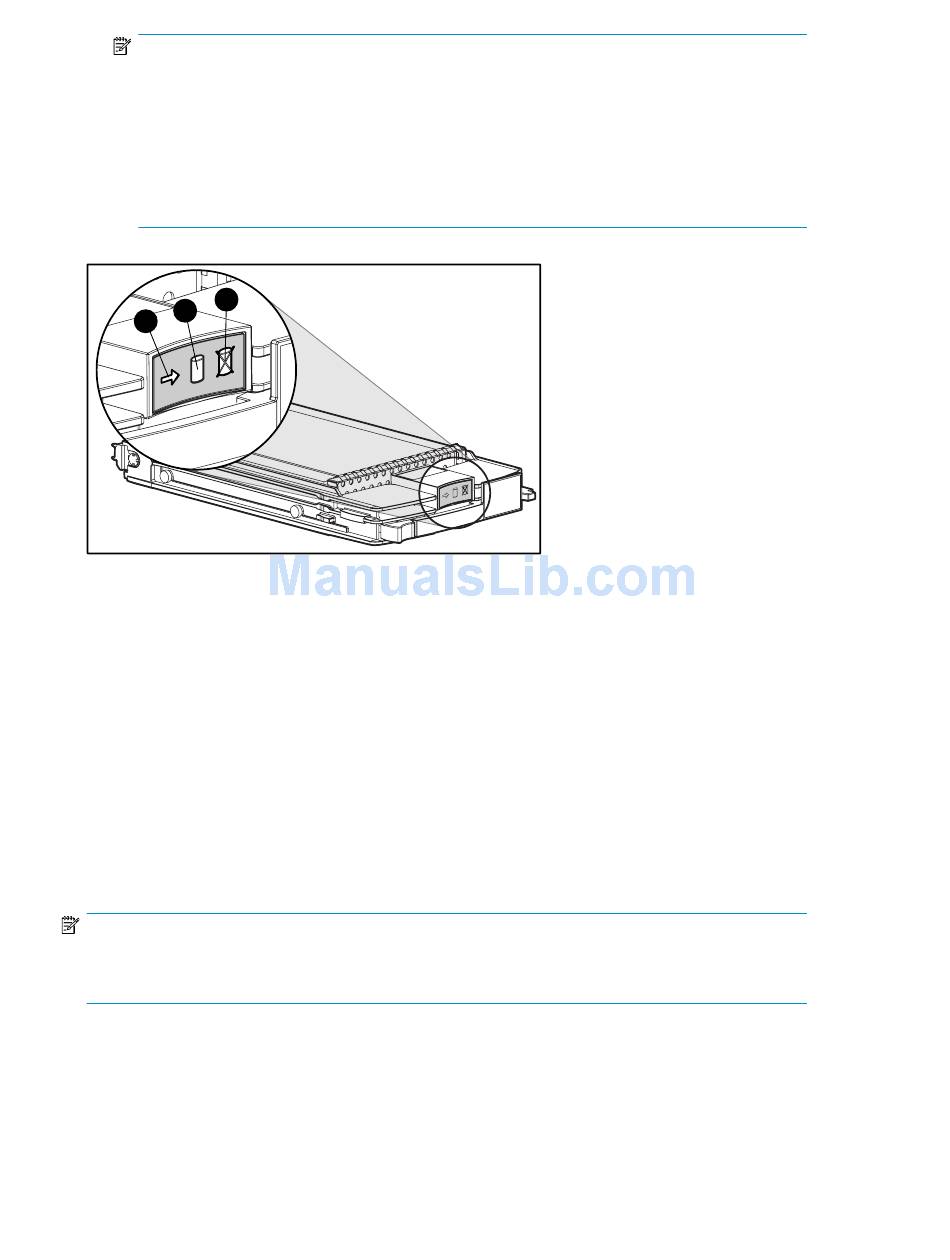

Figure 10 Disk drive status indicators
1. Activity
3. Fault

Adding the disk to a disk group

After replacing the disk, use HP Command View EVA to add it to a disk group.
1. In the Navigation pane, select Storage system > Hardware > Rack > Disk enclosure > Bay
2. In the Content pane, select the Disk Drive tab.
3. Click Group to initiate the process for adding the disk to a disk group.
NOTE:
If the Device Addition Policy is set to automatic, the disk will automatically be added to a disk group.
In this case the Group option will not be available.

Handling fiber optic cables

This section provides protection and cleaning methods for fiber optic connectors.
50 Enterprise Virtual Array operation
3
2. Online
