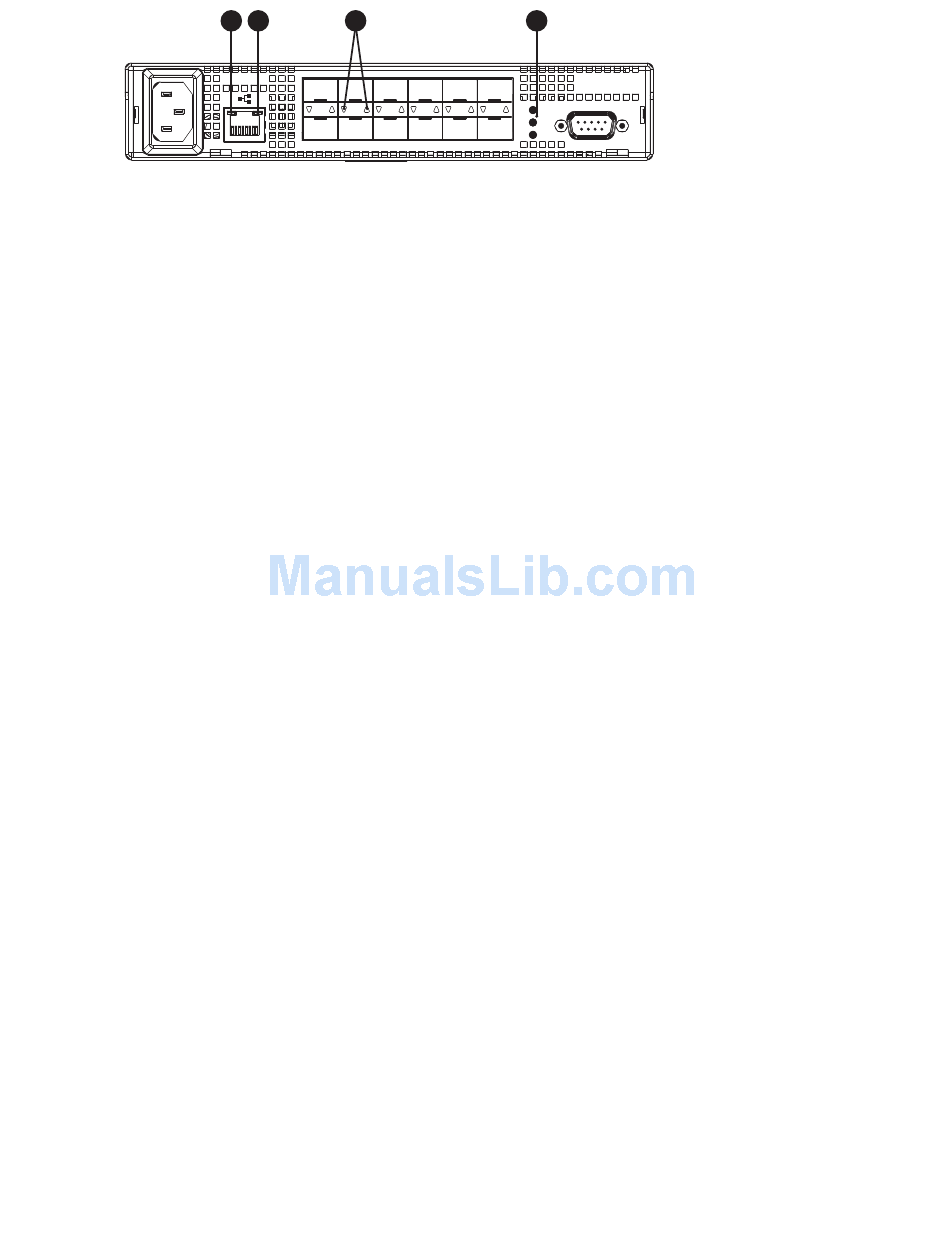

Figure 22 30-10022-01 loop switch status indicators
1. Ethernet activity
2. Ethernet link
3. Port status
4. System status
Power
Fault
Temp
Power-on self test (POST)
When the switch powers on, it runs Power-On Self-Test (POST) diagnostics to verify the fundamental
integrity of the switch ports. All switch LEDs turn on (LEDs illuminate). Then, excluding the Ethernet Link
and Power LEDs, the LEDs turn off (LEDs extinguish). Once the switch is operational, the LEDs display
current status. See
30-10010-02 loop switch
The 30-10010-02 loop switch contains both system indicators and port indicators. The system indicators
indicate the status of the switch, and the port indicators provide status of a specific port.
shows the 30-10010-02 loop switch with the system and port indicators.
The Fibre Channel loop switch acts as a central point of interconnection and establishes a fault-tolerant
physical loop topology between the controllers and the disk enclosures.
1
2
3
1
2
3
100-240V~, 50/60 H
Z
7
8
9
•
Flashing—the Ethernet port is receiving data.
•
Flashing rapidly—the traffic level is high.
•
On—the port is connected to an operational Ethernet.
•
Off—SFP is not installed in the port.
•
On (green)—Normal port operational status when an SFP is installed and a link
has been established.
•
On (yellow)—port has an SFP installed but a link has not been established.
•
Flashing (green)—activity. Data is being transferred between the port and device.
•
On—the switch is plugged in and the internal power supply is functional.
•
On—an event has occurred that meets or exceeds the current Fault threshold setting.
The default Fault threshold setting is critical. The switch will continue to operate.
Switch functionality may be impaired depending on the event that triggered the
Fault condition. Regardless of the cause, the switch requires immediate attention.
•
On—the internal temperature has exceeded acceptable levels. The switch will
continue to operate. Switch functionality may be impaired depending on the event
that triggered the Temp condition. Regardless of the cause, the switch requires im-
mediate attention.
Figure
22.
HP StorageWorks 4x00/6x00/8x00 Enterprise Virtual Array user guide
4
4
5
6
10101
POWER
FAULT
TEMP
10
11
12
Figure 23
77
