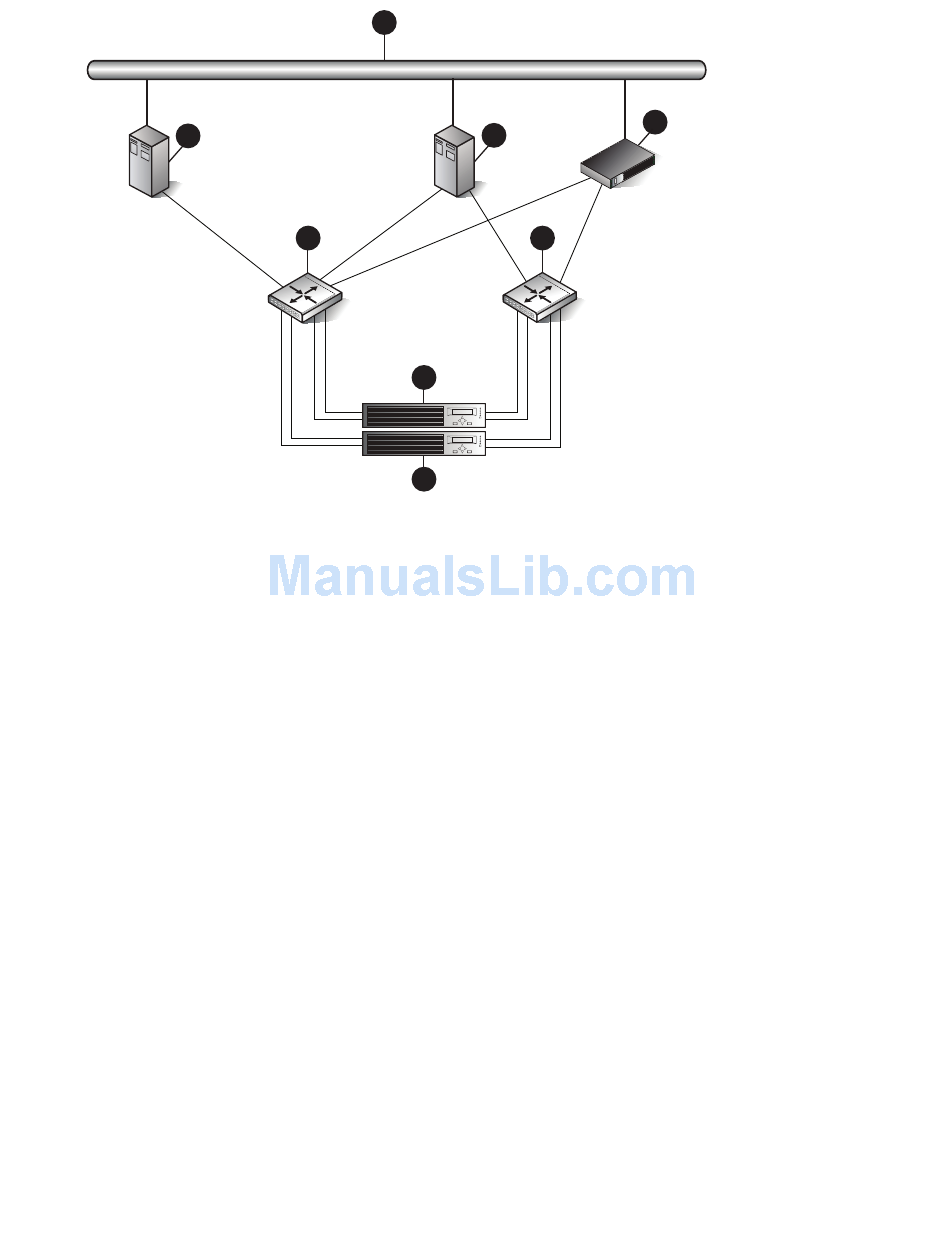

Figure 76 Windows Server 2003 (32-bit) configuration
1 Network interconnection
2 Host 1
3 Host 2
4 Management server

Windows Server 2003 (64-bit) configuration

Requirements

• Switch zoning or controller level SSP must be used to ensure each single path HBA has an exclusive
path to its LUNs.
• Single path HBA server can be in the same fabric as servers with multiple HBAs.
• Single path HBA server cannot share LUNs with any other HBAs.

HBA configuration

• Hosts 1 and 2 are single path HBA hosts.
• Host 3 is a multiple HBA host with multi-pathing software.
See Figure 77.
188 Single Path Implementation
1
5
8
7
5 SAN switch 1
6 SAN switch 2
7 Controller A
8 Controller B
4
3
6
