2. Move the red wine-colored mounting latch (2) to the right, and pull the blower out of the enclosure
(3).
0104b

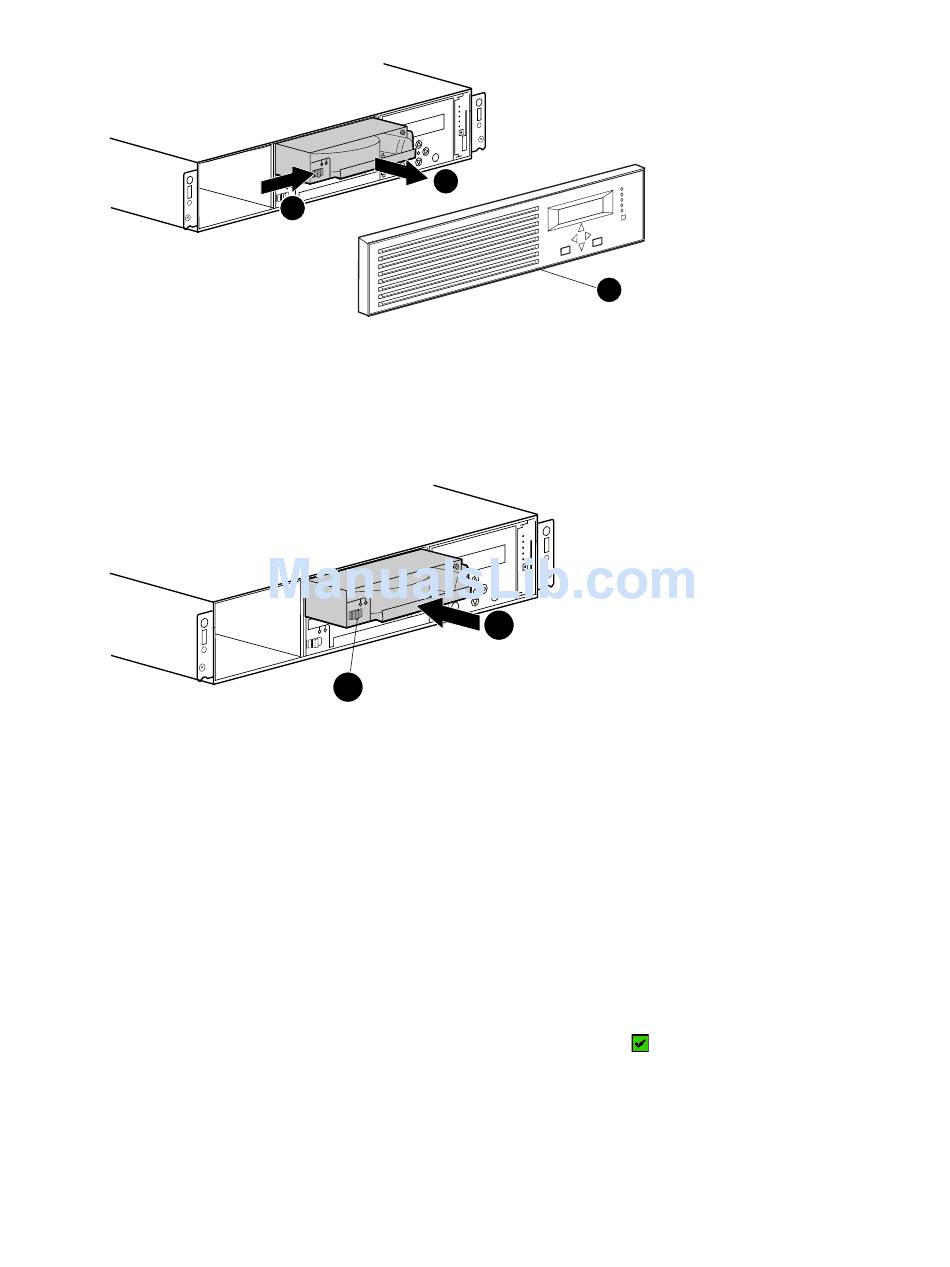

Figure 43 Removing a blower

Installing a blower

Position the blower as high in the slot as possible, then slide the blower into the enclosure (1) until
the mounting latch (2) engages.
Figure 44 Installing a blower

Verifying proper operation

After replacing the blower, check the following to verify that the component is operating properly:
• Blower should begin operating immediately.
• Check the controller blower status indicators. See
• The status indicator (1) should be on.
• The fault indicator (2) should be off.
After checking the status indicator, install the front panel on the enclosure by pressing it firmly into
place. Also clear the locate message on the OCP by pressing ESC.
• From HP Command View EVA:
• Navigate to the component and check the status. It should be
• Turn off the locate function by clicking Locate > Locate Off .
2
2
HP StorageWorks 4x00/6x00/8x00 Enterprise Virtual Array user guide
