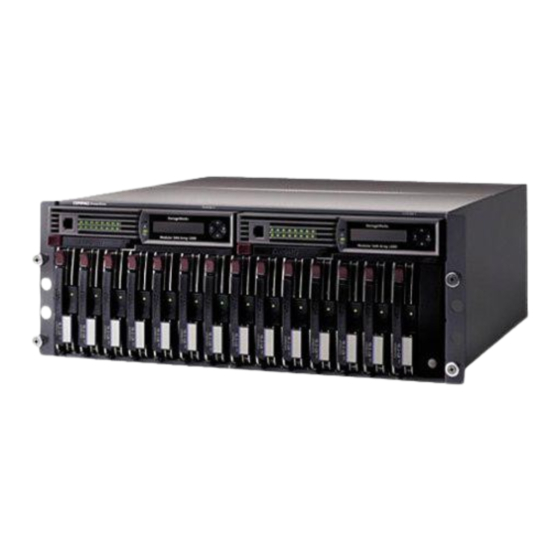

HP 201723-B21 -  StorageWorks Modular SAN Array 1000 Hard Drive Quick Start Instructions
HP 201723-B21 -  StorageWorks Modular SAN Array 1000 Hard Drive Quick Start Instructions

HP 201723-B21 - StorageWorks Modular SAN Array 1000 Hard Drive Quick Start Instructions

Hp storageworks 8gb simple san connection kit quick start instructions (5697-0082, august 2009)
Hide thumbs Also See for 201723-B21 - HP StorageWorks Modular SAN Array 1000 Hard Drive:

Advertisement

HP StorageWorks
8Gb Simple SAN Connection
Kit quick start instructions
© Copyright 2008–2009 Hewlett-Packard Development Company,
L.P.
Fifth edition: July 2009
Product names mentioned herein may be trademarks of their
respective companies.
The information in this document is subject to change without notice.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation.
Java is a U.S. trademark of Sun Microsystems, Inc.
Printed in the U.S.
www.hp.com
*5697-0082*
Congratulations on your purchase of the 8Gb
Simple SAN Connection Kit. This document
provides procedures for installing the kit
components, including the HP StorageWorks
8/20q Fibre Channel Switch, the host bus
adapters (HBAs), and the HP StorageWorks
Simple SAN Connection Manager (Simple SAN
Connection Manager) software bundle on a
Windows or Linux system.
Verify contents and requirements
1.
Verify the package contents.
The 8Gb Simple SAN Connection Kit is shipped with the
following items and quantities:
• One quick start instructions (this document)
• One Read-Me-First document
• One End User License Agreement (EULA)
• One HP StorageWorks 8/20q Fibre Channel Switch
Rack-Mount Kit quick start installation instructions
• One HP StorageWorks Simple SAN Connection Manager
software CD, which includes HP Enterprise Virtual Array (EVA)
Management, Modular Smart Array (MSA) Management,
and other related software components
• One HP StorageWorks 8/20q Fibre Channel Switch
• One HP StorageWorks 8/20q Fibre Channel Switch
Rack-Mount Kit
• Four rubber mounting feet for the HP StorageWorks 8/20q
Fibre Channel Switch (for desktop placement, if you are not
using the rack-mount kit)
• Ten 8 Gb shortwave fiber optic transceivers
• Six 5m LC-LC Multi-Mode Fibre Channel (FC) cables
• Four 8 Gb HP StorageWorks 81Q PCI Express (PCIe) Fibre
Channel HBAs (PCIe x8 physical connector)
• Four low-profile HBA mounting brackets
• One standard power cord
• One HP Power Distribution Unit (PDU) power cable
• One serial cable
2.
Verify that the server running your management software
(management station) meets the following minimum requirements
for supporting the software (including Simple SAN Connection
Manager and other HP software):
• Operating system:
• Windows Server 2003 R2 x64/x86 with SP2 and
Microsoft hotfix QFE932755 (updated Storport storage
driver). The update is available on the Microsoft website:
http://support.microsoft.com/kb/932755.
• Windows Server 2008 x64/x86 with SP1 or later.
• 512 MB of memory
• 200 MB of disk space
• One 2.0 GHz processor
• One CD-ROM drive
• One Ethernet port
• One or more PCIe slots for the HP StorageWorks 81Q PCIe
FC HBA (or other supported QLogic FC HBA)
• Java Runtime Environment (JRE) x86 1.5 or later
Page 1

Advertisement

Table of Contents
loading

Summary of Contents for HP 201723-B21 - HP StorageWorks Modular SAN Array 1000 Hard Drive

  • Page 1 HP StorageWorks Congratulations on your purchase of the 8Gb Simple SAN Connection Kit. This document 8Gb Simple SAN Connection provides procedures for installing the kit components, including the HP StorageWorks Kit quick start instructions 8/20q Fibre Channel Switch, the host bus adapters (HBAs), and the HP StorageWorks Simple SAN Connection Manager (Simple SAN Connection Manager) software bundle on a...
  • Page 2: Hardware Installation Instructions

    • Internet browser: Microsoft Internet Explorer (IE), Netscape Check the switch LEDs (Figure 1) to verify that the Input Power Navigator, or Mozilla Firefox LED is illuminated, the Heartbeat LED is blinking (once per second), and the System Fault LED is not illuminated. •...
  • Page 3: Software Installation Instructions

    Software installation instructions Use the HP StorageWorks Simple SAN Connection Manager CD to install the management software on your management station as described in Simple SAN Connection Manager installation. Then use the same CD to install the HBA driver and other required software on each of the other servers in your SAN that use QLogic FC HBAs.
  • Page 4 The End User License Agreement (EULA) is displayed (Figure The installation progress window (Figure 7) appears briefly, and then the Available Storage Subsystem dialog box (Figure prompts you to select the type of HP storage subsystem for this station. Figure 6 Available Storage Subsystem dialog box Select one or more storage subsystem types (EVA and/or MSA) that exist in your SAN by choosing Yes from the drop-down menu...
  • Page 5 When the first component, the HP FC driver, is installed, a your EVA), select one to add to the HP Storage Admin group. diagnostic window (Figure 8) shows the HBA properties and Then click Add To Group. targets found. When prompted, enter a password for the existing user account, and then click OK.
  • Page 6 Non-management station Windows installation To install the required non-management software on all other servers running Windows with QLogic HBAs: Insert the installation CD into the CD-ROM drive of the server. The HP Installation Wizard starts automatically, and the initial installation window (see Figure 3 on page 3) opens.
  • Page 7 The workaround is to manually mount the installation CD. For The following is returned: example, if the CD was auto-mounted in /media/HpInstallx.x, qla2xxx_conf 303752 issue these commands to unmount and then re-mount the CD: qla2xxx 982688 scsi_mod 445298 qla2xxx # unmount /media/HpInstallx.x # mkdir -p /mnt/cdrom c.
  • Page 8 Figure 14 New Switch Setup wizard Figure 15 shows an example of the main window for Simple SAN Connection Manager. Figure 15 Simple SAN Connection Manager main window For assistance with this software, refer to the HP StorageWorks Simple SAN Connection Manager user guide, available online at www.hp.com/go/8Gb-SSC.
