• ec is the error code
4
3

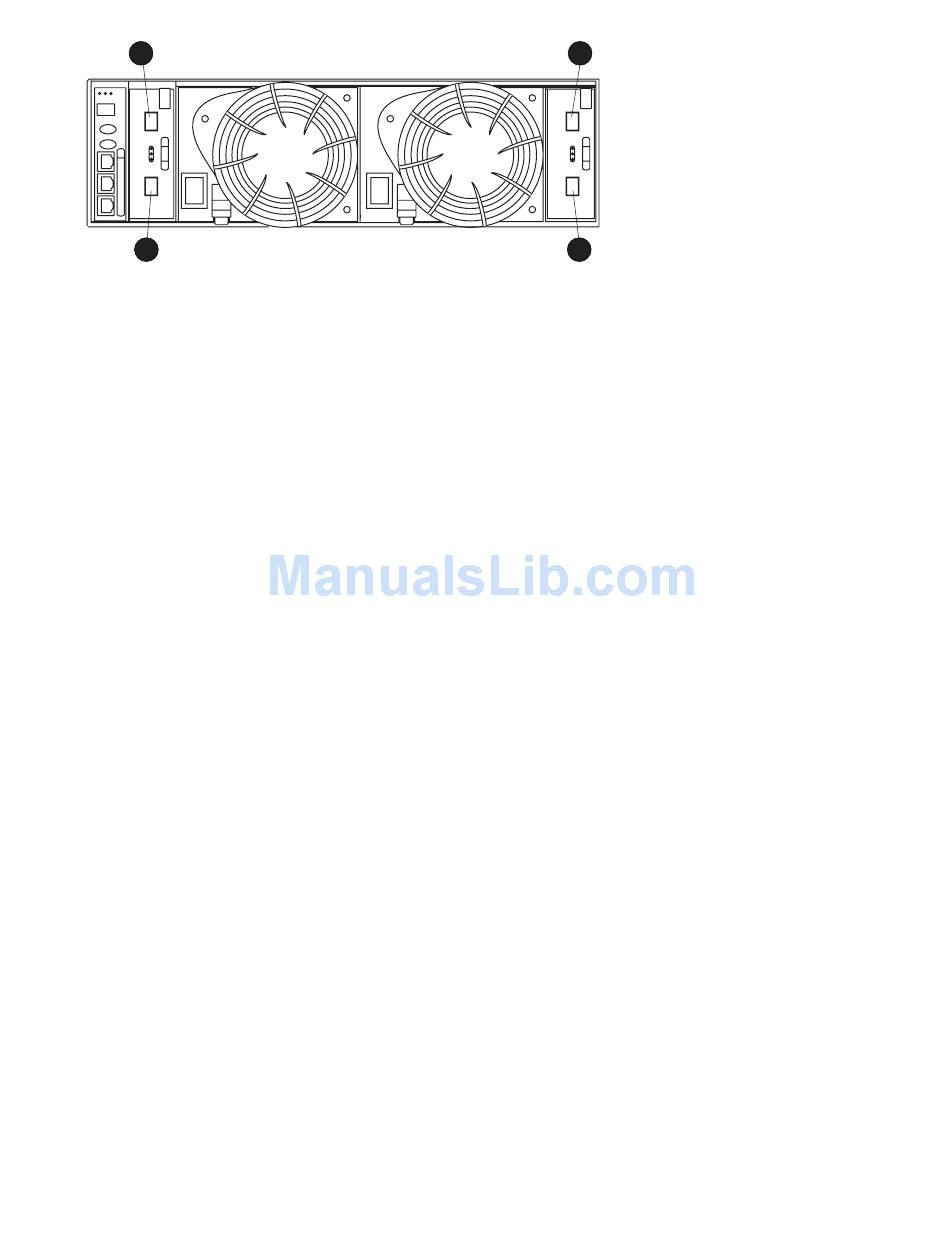

Figure 68 Transceiver element numbering
1. Transceiver 01
3. Transceiver 03
0.F.en.01 CRITICAL condition—Transceiver incompatibility
The transceivers on this link are not the same type or they are incompatible with the I/O module. This
error prevents the controller from establishing a link with the enclosure disk drives and eliminates the
enclosure dual-loop capability. This error remains active until the problem is corrected.
To correct this problem, record all six characters of the condition report, then contact your HP authorized
service representative.
0.F.en.02 CRITICAL condition—Transceiver data signal lost
This symptom can occur when a controller has been powered off or a cable has been removed from
the transceiver. The transceiver can no longer detect a data signal. This error prevents the controller
from transferring data on a loop and eliminates the enclosure dual-loop capability. This error remains
active until the problem is fixed.
To correct this problem, record all six characters of the condition report, then contact your HP authorized
service representative.
0.F.en.03 CRITICAL condition—Transceiver fibre channel drive enclosure bus fault
The system has detected a Fibre Channel drive enclosure bus fault involving a transceiver. This error
prevents the controller from transferring data on a loop and eliminates the enclosure dual-loop
capability.
Complete the following procedure to correct this problem:
1. Record all six characters of the condition report.
2. Check all the transceivers and cables to ensure they are properly connected.
3. Check all the transceivers on the loop to ensure they are compatible with the I/O module.
4. If the problem persists, contact your HP authorized service representative.
160 EMU-generated condition reports
2
1
CXO7954A
2. Transceiver 02
4. Transceiver 04
