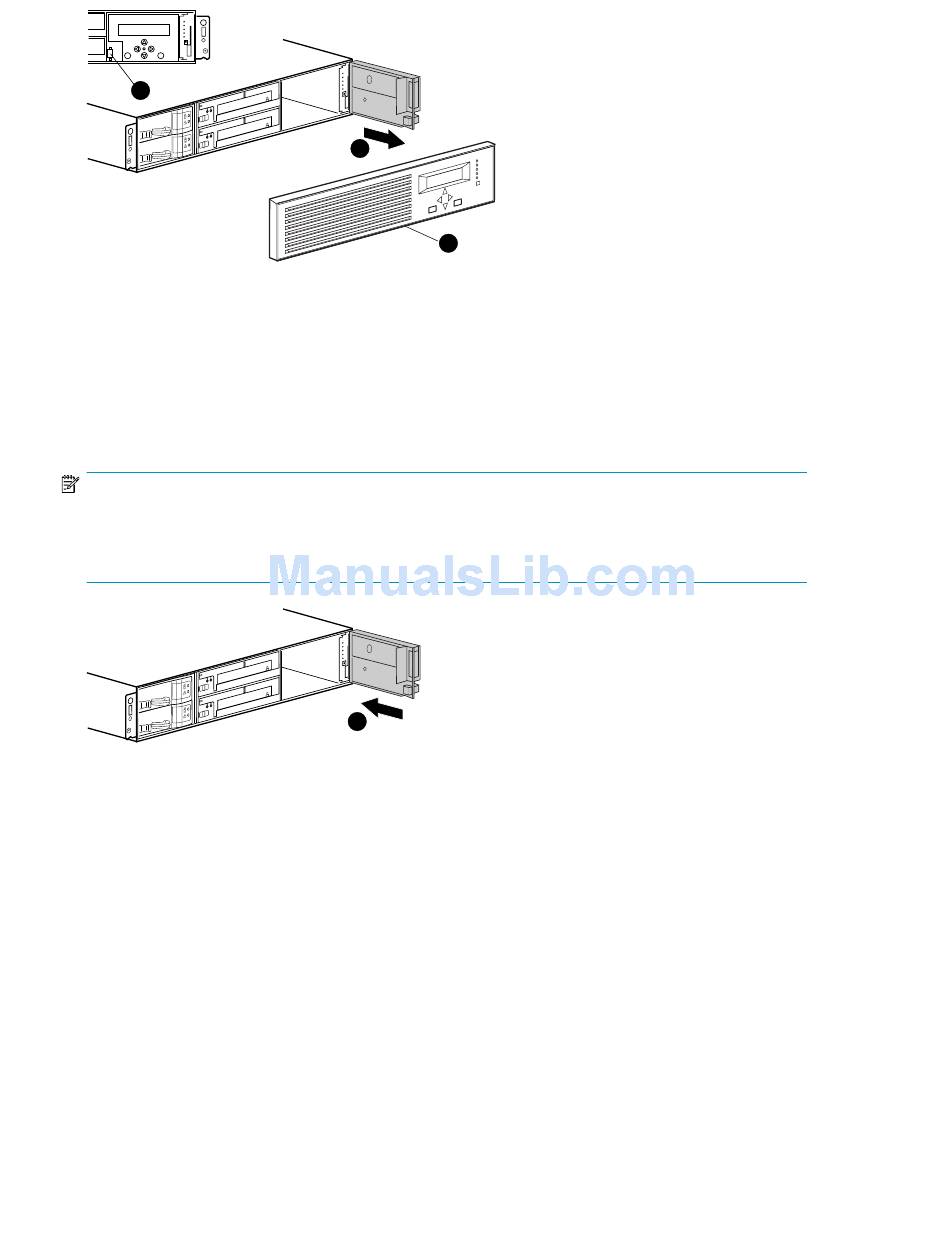

Figure 62 Removing the OCP

Installing the OCP

1. Slide the new OCP into the enclosure (1,
2. Close the OCP until the latch engages.
3.
Install the front panel, pressing it firmly into place.
NOTE:
After installing the OCP, the controller may have to upgrade the OCP firmware. Do not remove the
OCP while this operation is in progress. When the OCP is displaying the alternating Storage System
Name and WWID, the correct firmware has been loaded on the OCP.
Figure 63 Installing the OCP

Verifying proper operation

After replacing the OCP, verify that it is operating properly:
1.
Check the display. It will typically display the default information which alternates between the
Storage System Name and the World Wide Name.
2. Press any push-button. The Storage System Menu Tree should be displayed.

Returning the failed component

Follow the return instructions provided with the new component.
