Power Docking Board Features; Figure 2. Server Board Rear Connectors; Figure 3. Hns2600Tpr/Hns2600Tpfr Compute Module Back Panel Features; Figure 4. Hns2600Tp24R/Hns2600Tp24Sr Compute Module Back Panel Features - Intel S2600TP series Service Manual

Intel® Server Board S2600TP and Intel® Compute Module HNS2600TP Product Family

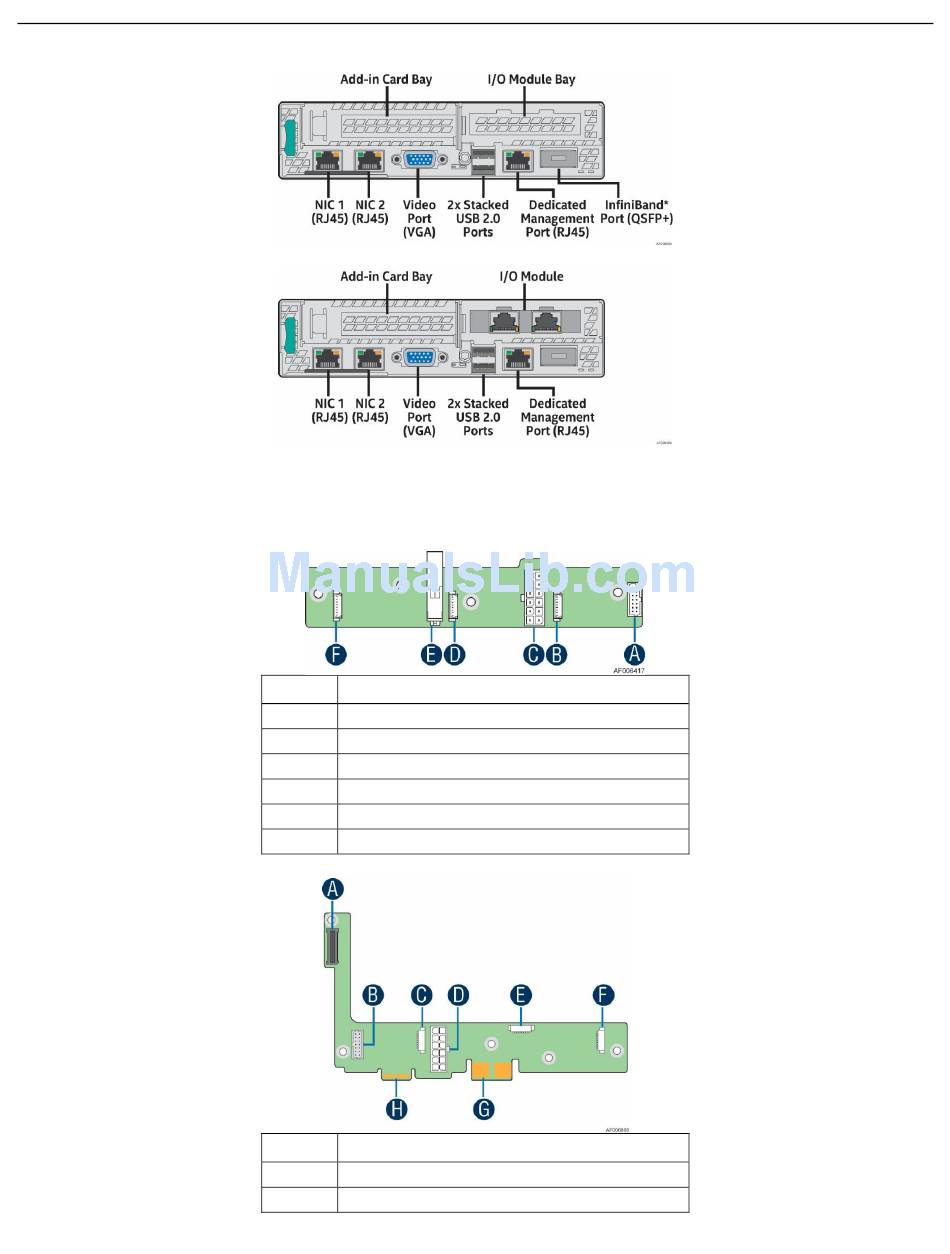

The Intel® Compute Module HNS2600TP product family has the following back panel features.
Figure 3.
Figure 4.
1.3

Power Docking Board Features

4
Figure 2.
HNS2600TPR/HNS2600TPFR Compute Module Back Panel Features
HNS2600TP24R/HNS2600TP24SR Compute Module Back Panel Features
Label
A 2x7 pin fan control connector
B 8 pin connector for fan 1
C 2x6 pin Minifit Jr main power output connector
D 8 pin connector for fan 2
E 12 pin connector for main power input
F 8 pin connector for fan 3
Figure 5.
Label
A 40 pin Misc. Signal Connector (to bridge board)
B 2x7 pin Fan Control Connector
Server Board Rear Connectors
Description
Power Docking Board Features
Description
